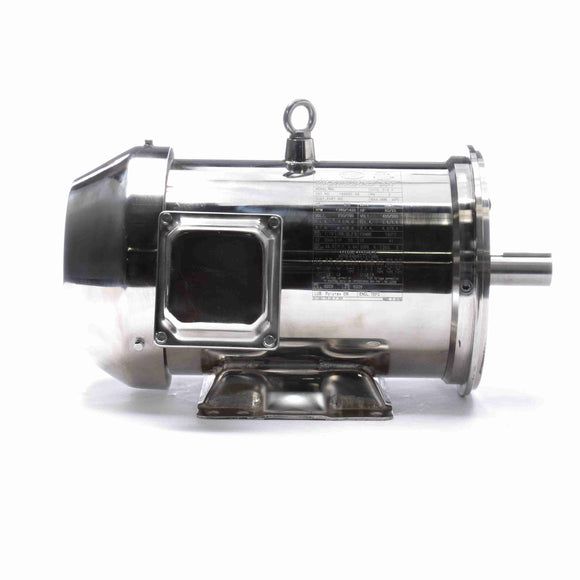

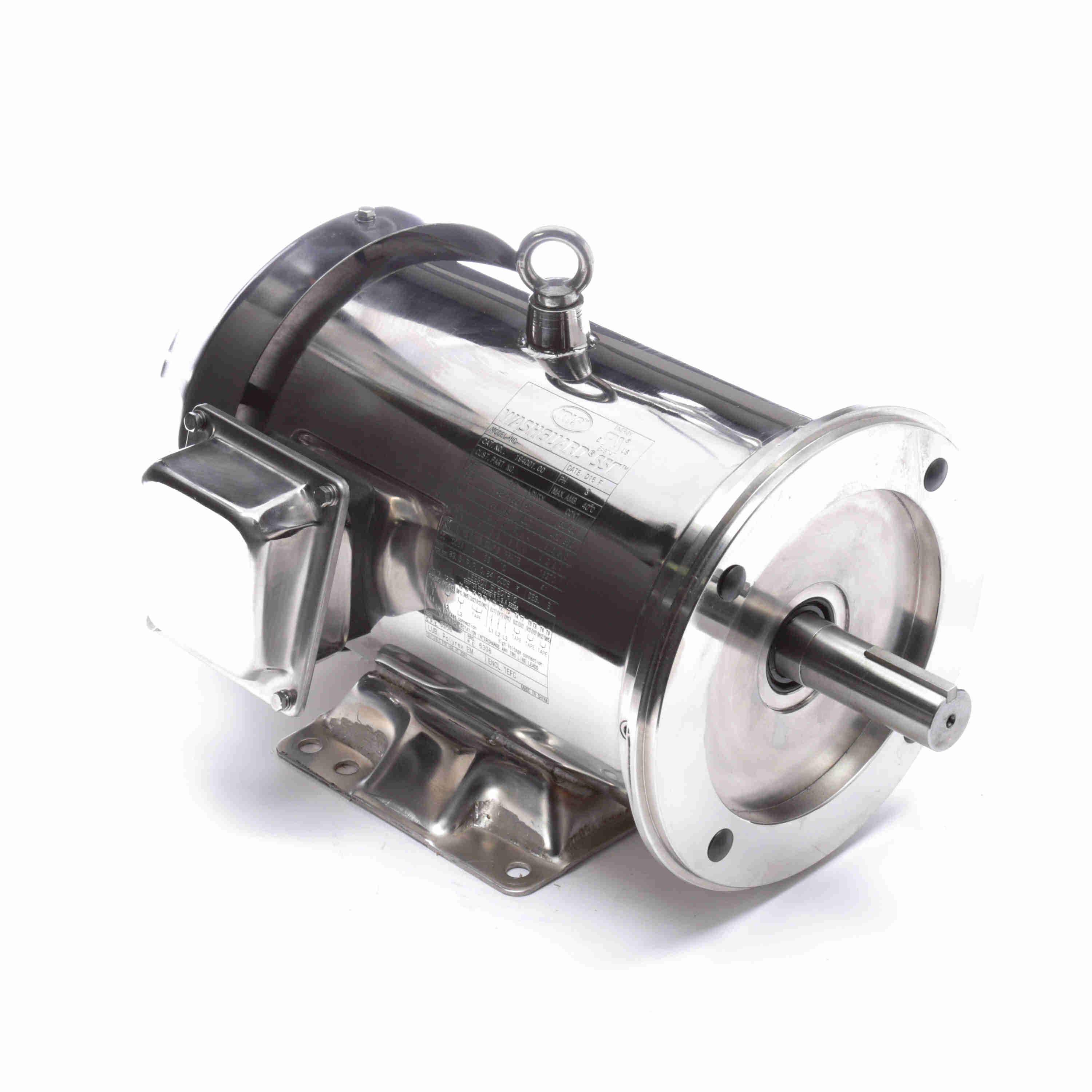

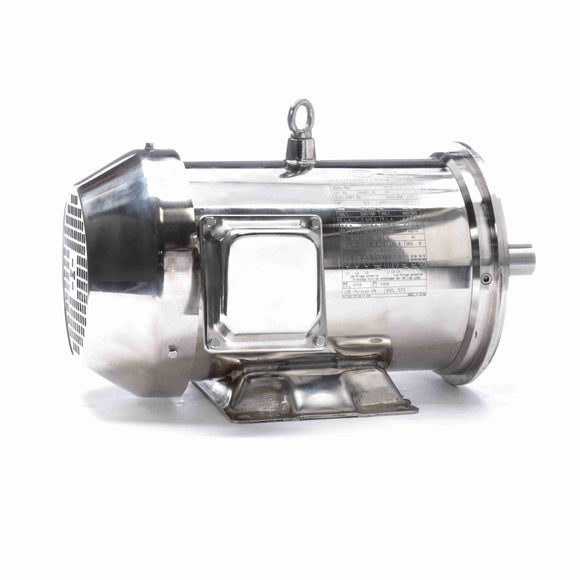

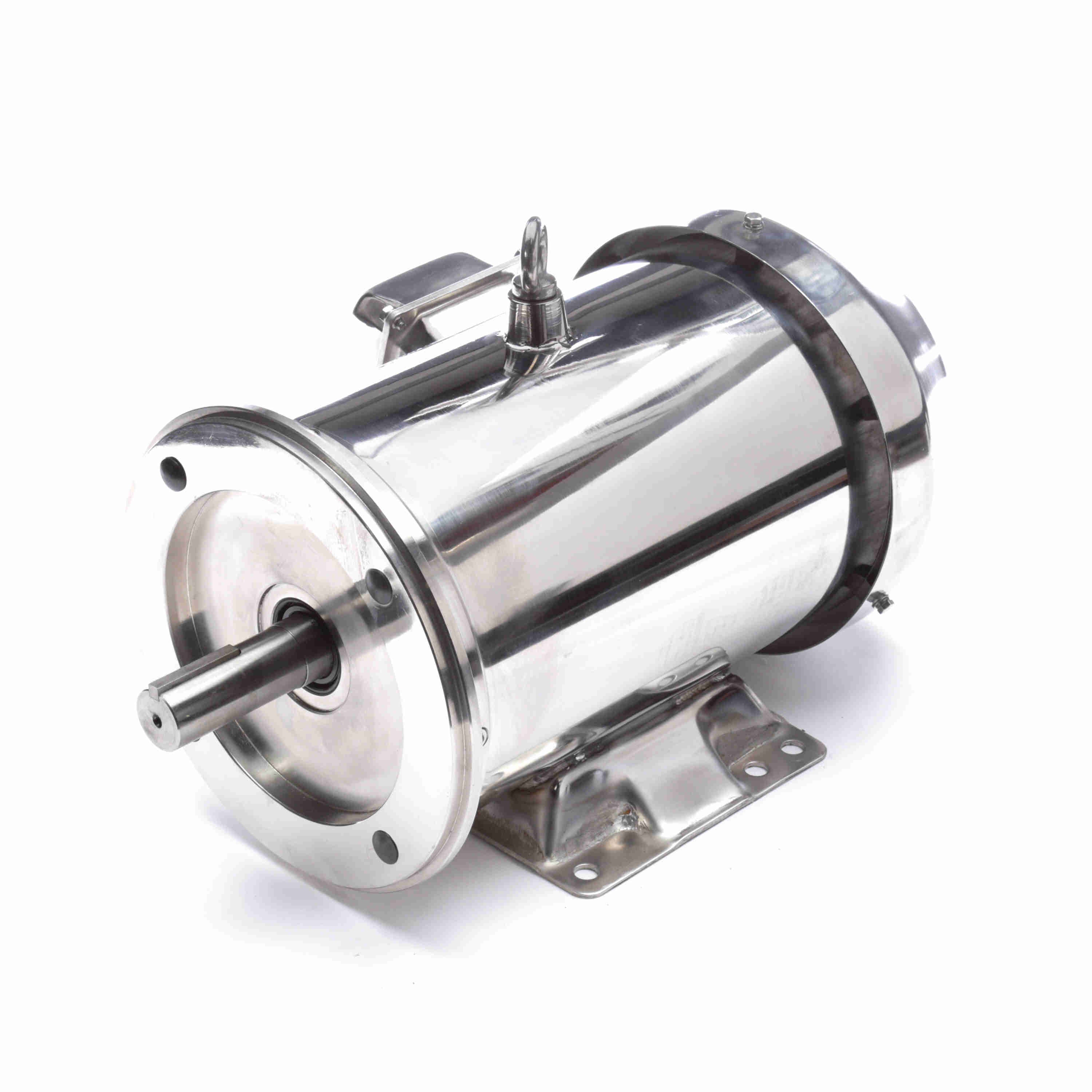

194001.00 3HP Leeson Electric SS Motor, Washdown-1
194001.00 3HP Leeson Electric SS Motor, Washdown-2
194001.00 3HP Leeson Electric SS Motor, Washdown-3
194001.00 3HP Leeson Electric SS Motor, Washdown-4
194001.00 3HP Leeson Electric SS Motor, Washdown-5

194001.00 3HP Leeson Electric SS Motor, Washdown

$1,728.97 $4,457.00 Save $2,728.03

Shipping calculated at checkout

Witmer Motor Service SKU: 194001.00 Barcode: 691720052693

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Product Features
Catalog No 194001.00 Model C182T17WK21A
Product type AC MOTOR Stock Stock

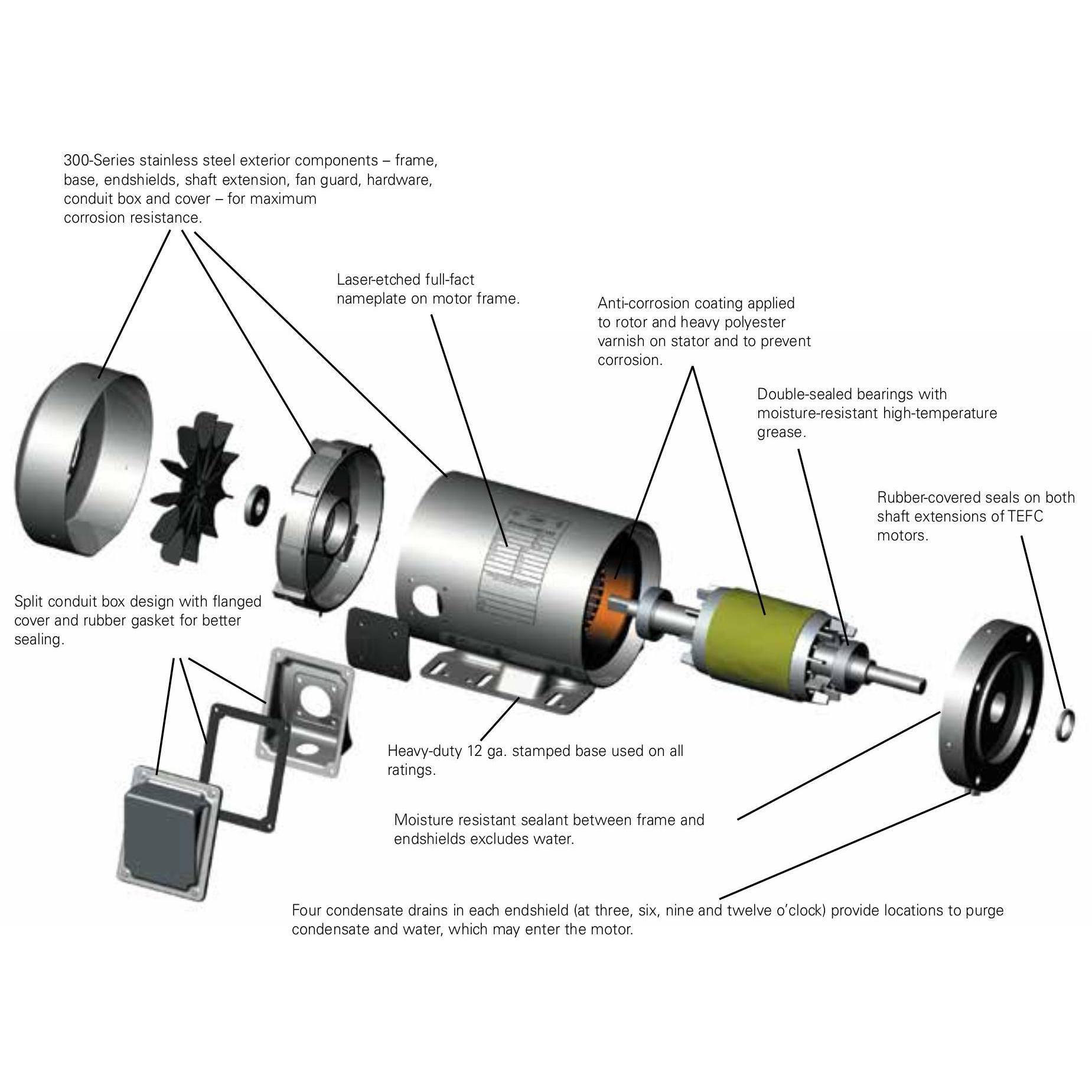

Description ..3HP..1800RPM.182TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C FACE......STAINLESS WASHDOWN.NOT.......
Information shown is for current motor's design
 Engineering Data
Volts 230 Volts 460 Volts 190/380
F.L. Amps 7.2 F.L. Amps 3.6 F.L. Amps 6.0/3.0
S. F Amps 8.4 S. F Amps 4.2 S. F Amps 6.8/3.4
RPM 1800 Hertz 60
HP 3 Duty CONTINUOUS TYPE TF
KW 2.24
Frame 182TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75% PF 84
UL Yes CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6306
Load Type Inverter Type Speed Range NONE
RPM 1500 Hertz 50
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49
Frame 182TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 86.5 Eff 75% PF 84
UL Yes CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6306
Load Type Inverter Type Speed Range NONE
Motor Wt. 116.7 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate NP180TCSST Mounting RIGID Rotation REV
Assembly Shaft Dia. 1 1/8 IN Ext. Diag. 005010.01
Cust Part No Outline OL180TCSST Ext. Diag2
Packaging INDIVIDUAL Winding QT1802
Carton Label     GROUP: 3
Iris Paint NO PAINT Test Card
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK²) 0
Torque 9(Full Load) 34.9(Break Down) 18.4(Pull Up) 20(Locked Rotor)
CURRENT (amps) 3.7(Full Load) 0(Break Down) 0(Pull Up) 31.1(Locked Rotor)
Efficiency (%) 0(Full Load)
PowerFactor 0(Full Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 3.7 100.0 9.0 100.0 1765 - - 3.0
LR 31.1 841.0 20.0 222.0 0.0 - - 3.0
BD - - 34.9 388.0 0.0 - - 3.0
PU - - 18.4 204.0 0.0 - - 3.0
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 3.1 100.0 7.2 100.0 1475 0.0 0.0 2.0
LR 28.8 929.0 18.6 258.0 0.0 0.0 0.0 2.0
BD - 0.0 28.7 399.0 0.0 0.0 0.0 2.0
PU - 0.0 13.0 181.0 0.0 0.0 0.0 2.0
SOURCE: DATABASE GROUP: 3
Load Curve Data @60/50 Hz, 460 Volts, 3 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise

Load Curve Data Not Available
