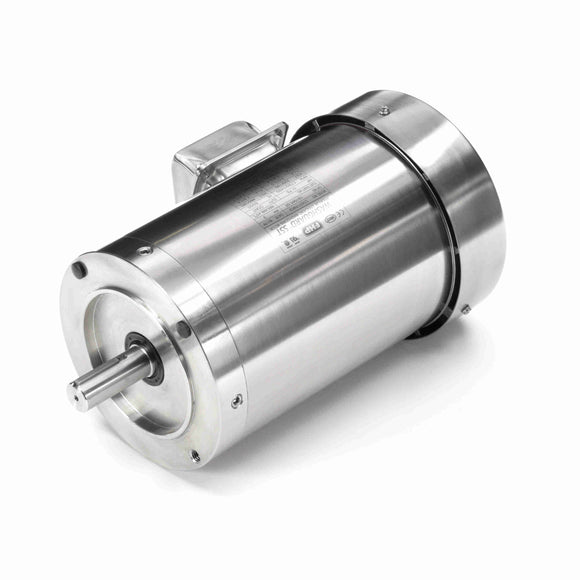

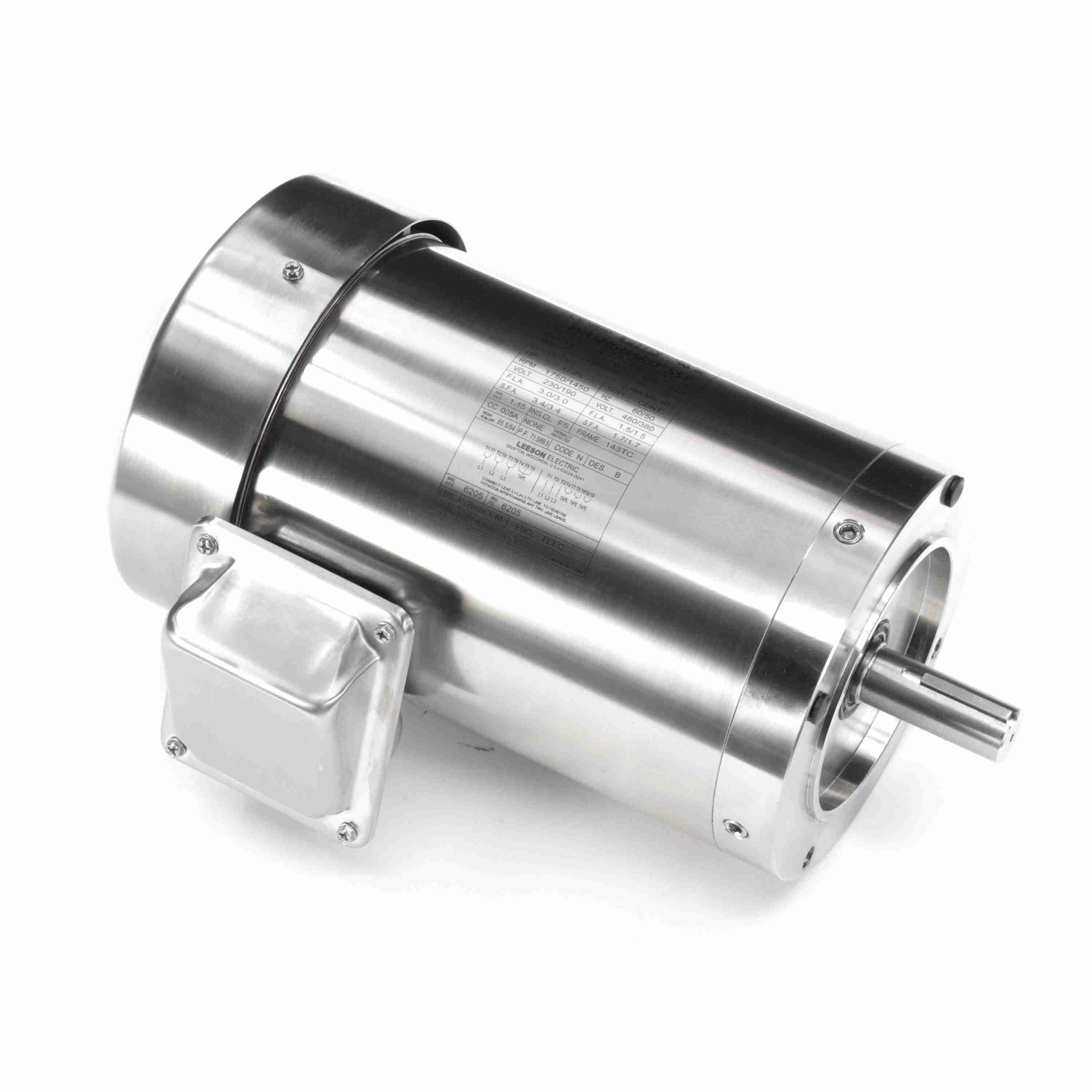

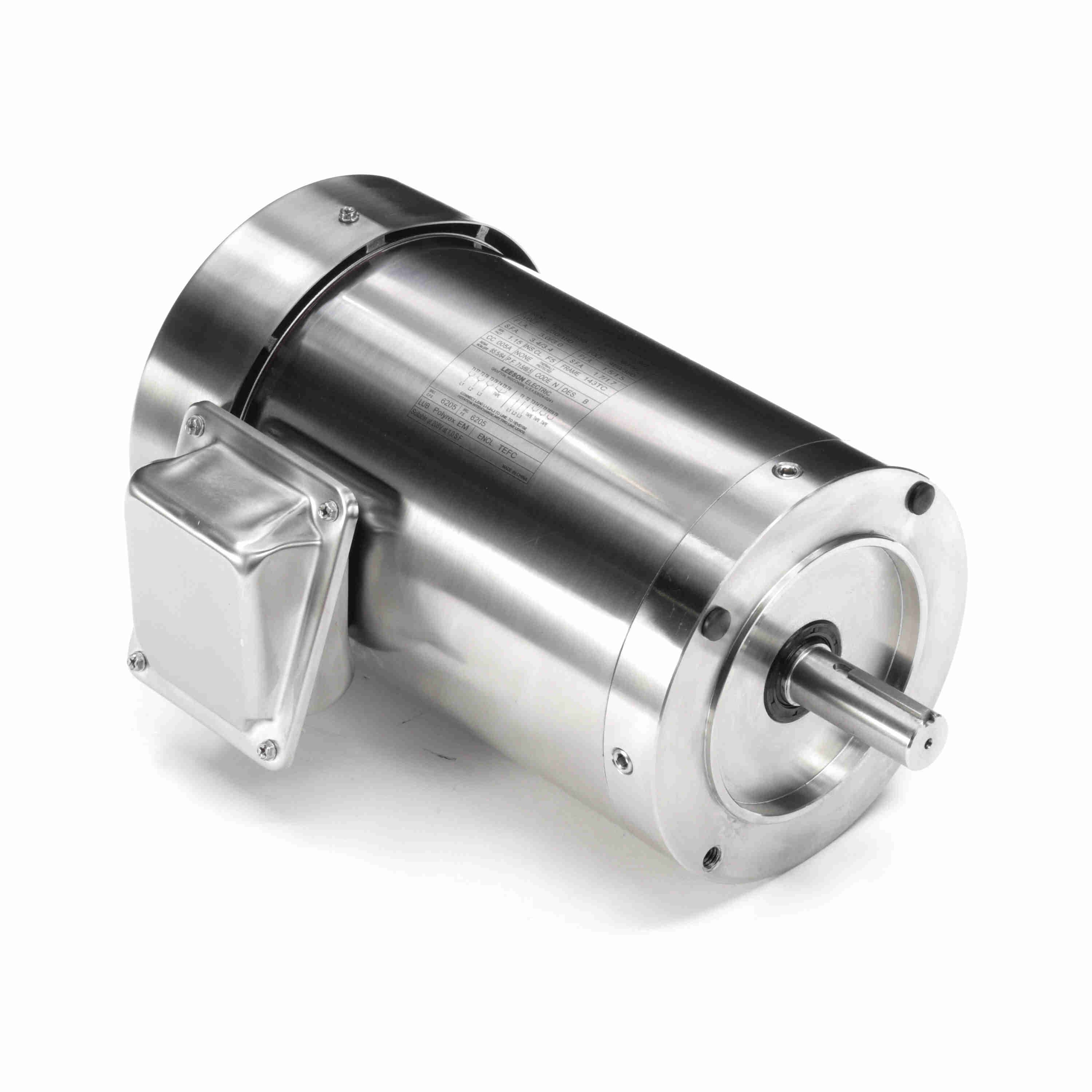

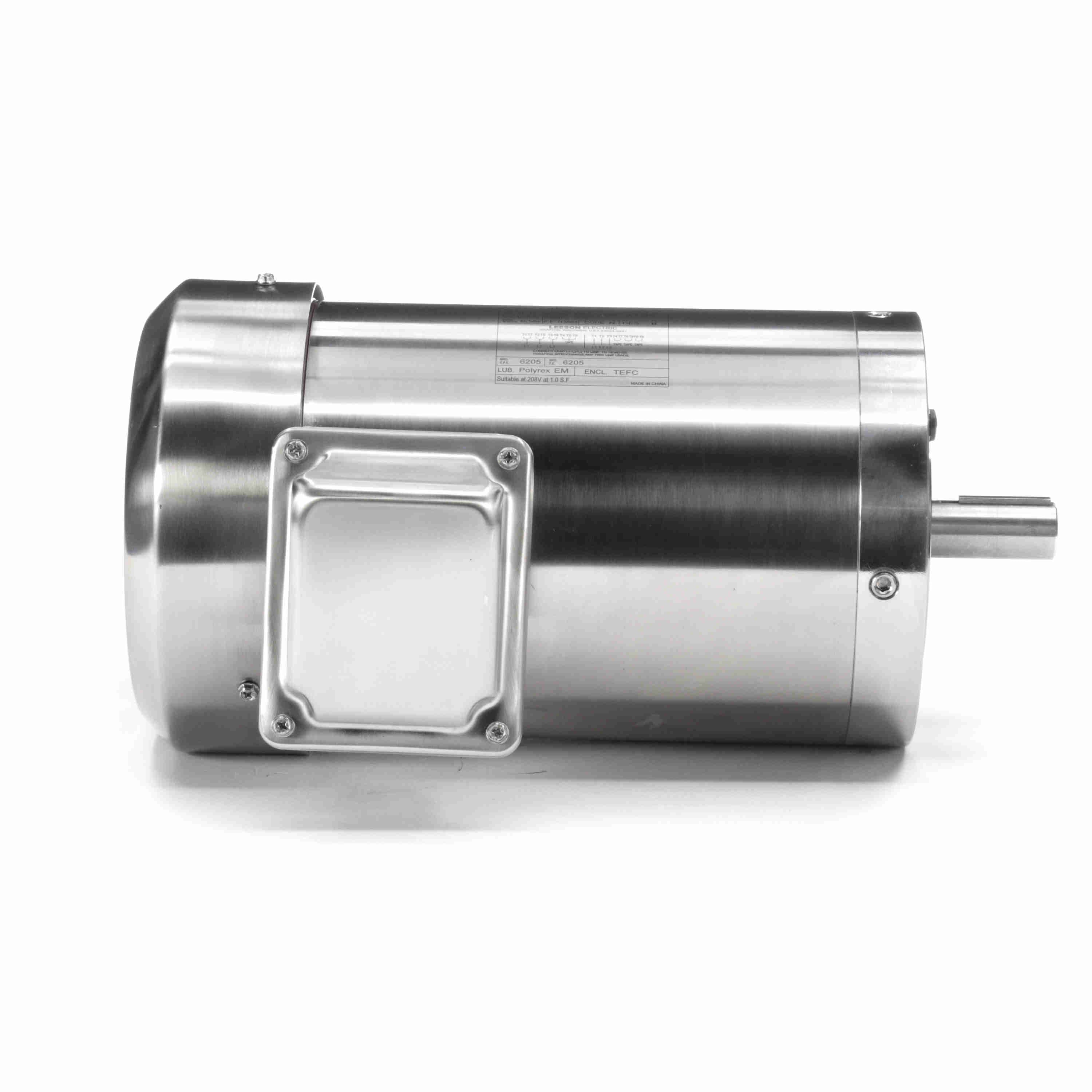

191565.00 1HP Leeson Electric SS Motor, Washdown-1
191565.00 1HP Leeson Electric SS Motor, Washdown-2
191565.00 1HP Leeson Electric SS Motor, Washdown-3
191565.00 1HP Leeson Electric SS Motor, Washdown-4
191565.00 1HP Leeson Electric SS Motor, Washdown-5

191565.00 1HP Leeson Electric SS Motor, Washdown

$949.97 $3,053.00 Save $2,103.03

Shipping calculated at checkout

Witmer Motor Service SKU: 191565.00 Barcode: 691720052853

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

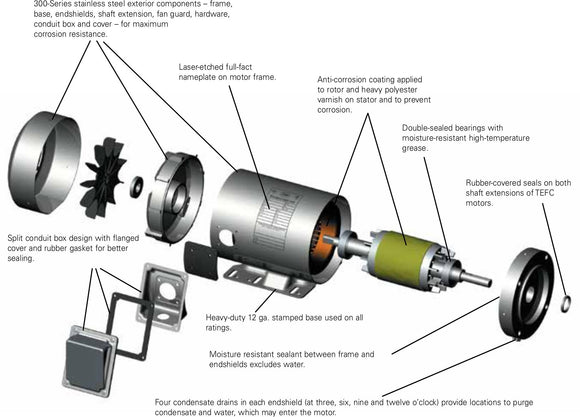

Features

Features
  • Extended Thru-bolts
  • Auto Reset Protectors
  • TEAO designs
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components

General Specifications

General Specifications
Model : C143T17WC9A Catalog No : 191565.00
Part Description : ..1HP..1800.143TC.TEFC.230/460V.3PH.60HZ.CONT.40C..C-FACE......STAINLESS WASHDOWN........ Category : Paint Free
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1 HP Output KW : 0.75 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 3.2-3.0/1.5 A Speed : 1750 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 85.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : N Frame : 143TC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 55

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated Starting Method : Line Or Inverter
Poles : 4 Rotation : Reversible
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Stainless Steel Shaft Type : T
Overall Length : 13.62 in Frame Length : 7.99 in
Shaft Diameter : 0.875 in Shaft Extension : 2.25 in
Assembly/Box Mounting : F1/F2 CAPABLE UPC : 691720052853
Weight : 44.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 10.10 673.0 15.83 529.0 1,264 6.30 78.3 1.00
Locked-Rotor 15.10 1,007.0 13.17 440.0 0 6.70 55.8 1.00
Full Load 1.50 100.0 2.99 100.0 1,757 0.86 71.9 1.00
Pull-Up 14.80 987.0 10.51 352.0 193 6.80 57.4 1.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.00
  • 0.061
  • 0.0
  • 7.7
  • 0
  • 0.0
  • 0.00
  • 25 %
  • 1.00
  • 0.252
  • 74.5
  • 31.6
  • 1,790
  • 0.0
  • 0.74
  • 50 %
  • 1.10
  • 0.448
  • 83.4
  • 51.1
  • 1,779
  • 0.0
  • 1.48
  • 75 %
  • 1.30
  • 0.650
  • 86.1
  • 62.8
  • 1,768
  • 0.0
  • 2.23
  • 100 %
  • 1.50
  • 0.859
  • 86.9
  • 71.9
  • 1,757
  • 32.7
  • 2.99
  • 115 %
  • 1.70
  • 1.015
  • 84.5
  • 74.9
  • 1,750
  • 0.0
  • 3.45
  • 125 %
  • 1.80
  • 1.075
  • 86.8
  • 75.0
  • 1,745
  • 0.0
  • 3.77
  • 150 %
  • 2.00
  • 1.300
  • 86.1
  • 81.6
  • 1,732
  • 0.0
  • 4.55
