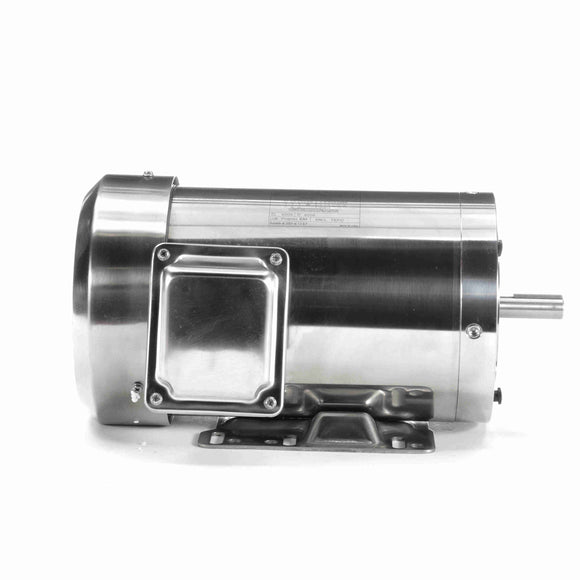

191562.00 2HP Leeson Electric SS Motor, Washdown-1

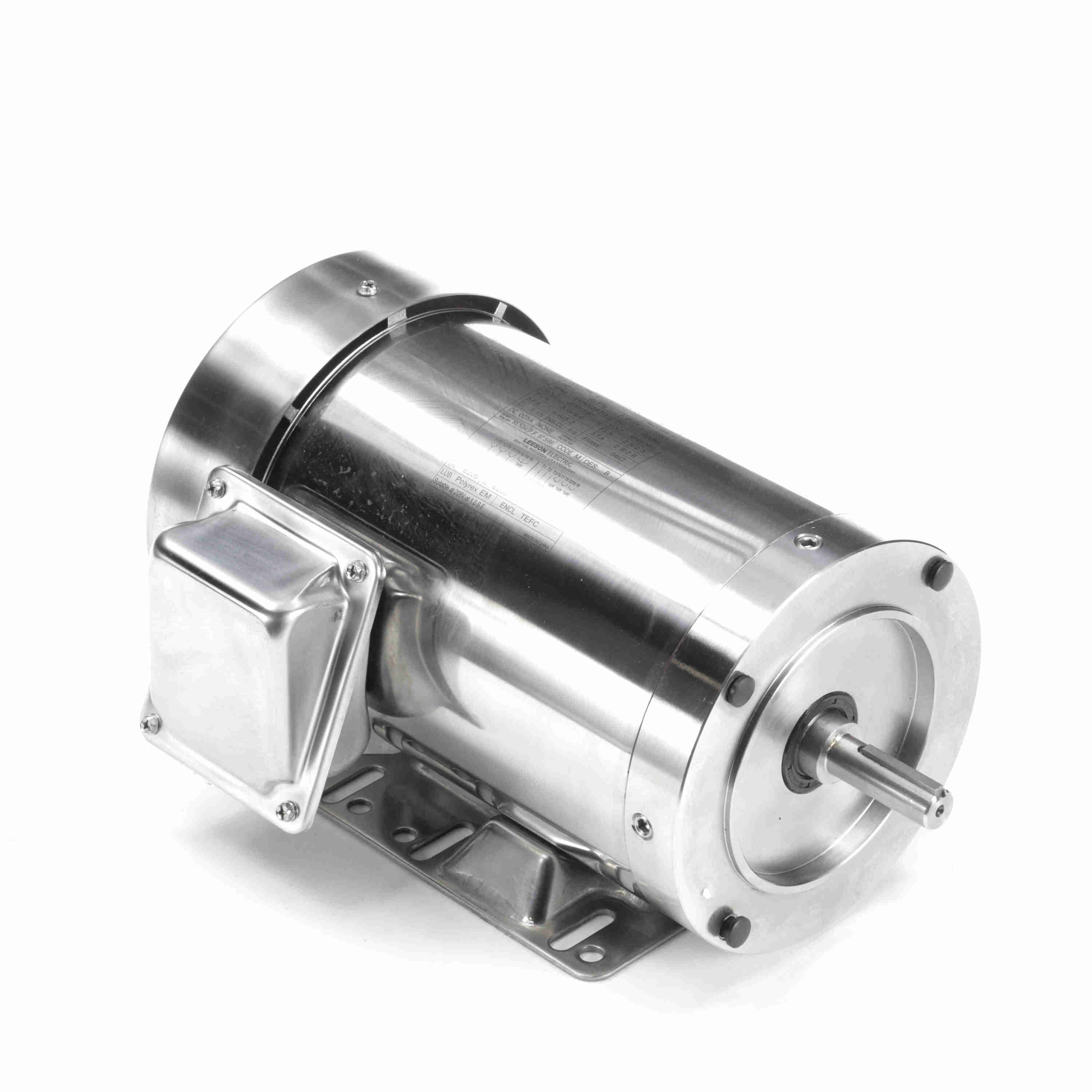

191562.00 2HP Leeson Electric SS Motor, Washdown-2

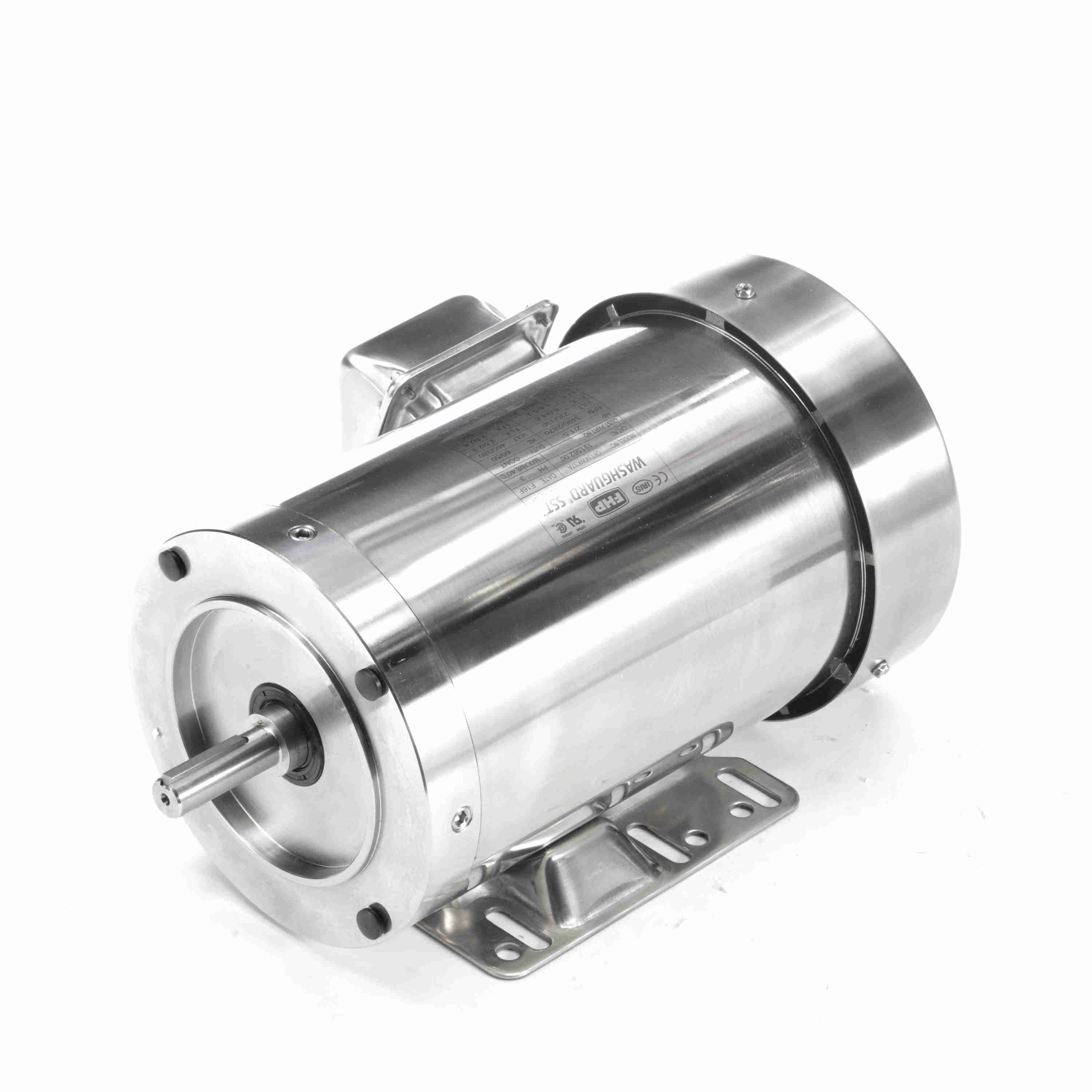

191562.00 2HP Leeson Electric SS Motor, Washdown-3

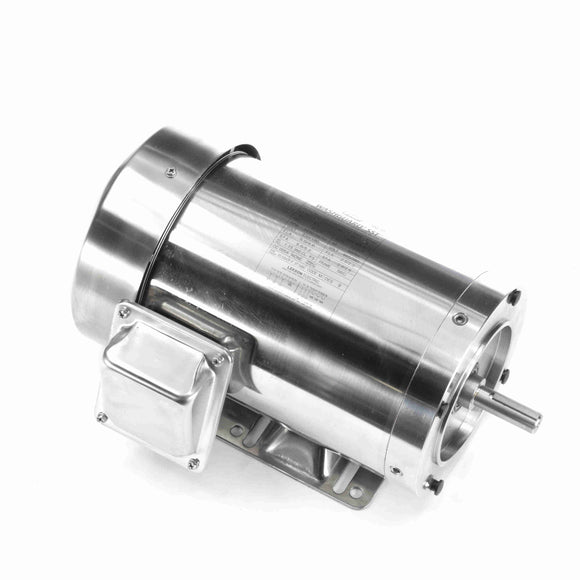

191562.00 2HP Leeson Electric SS Motor, Washdown-4

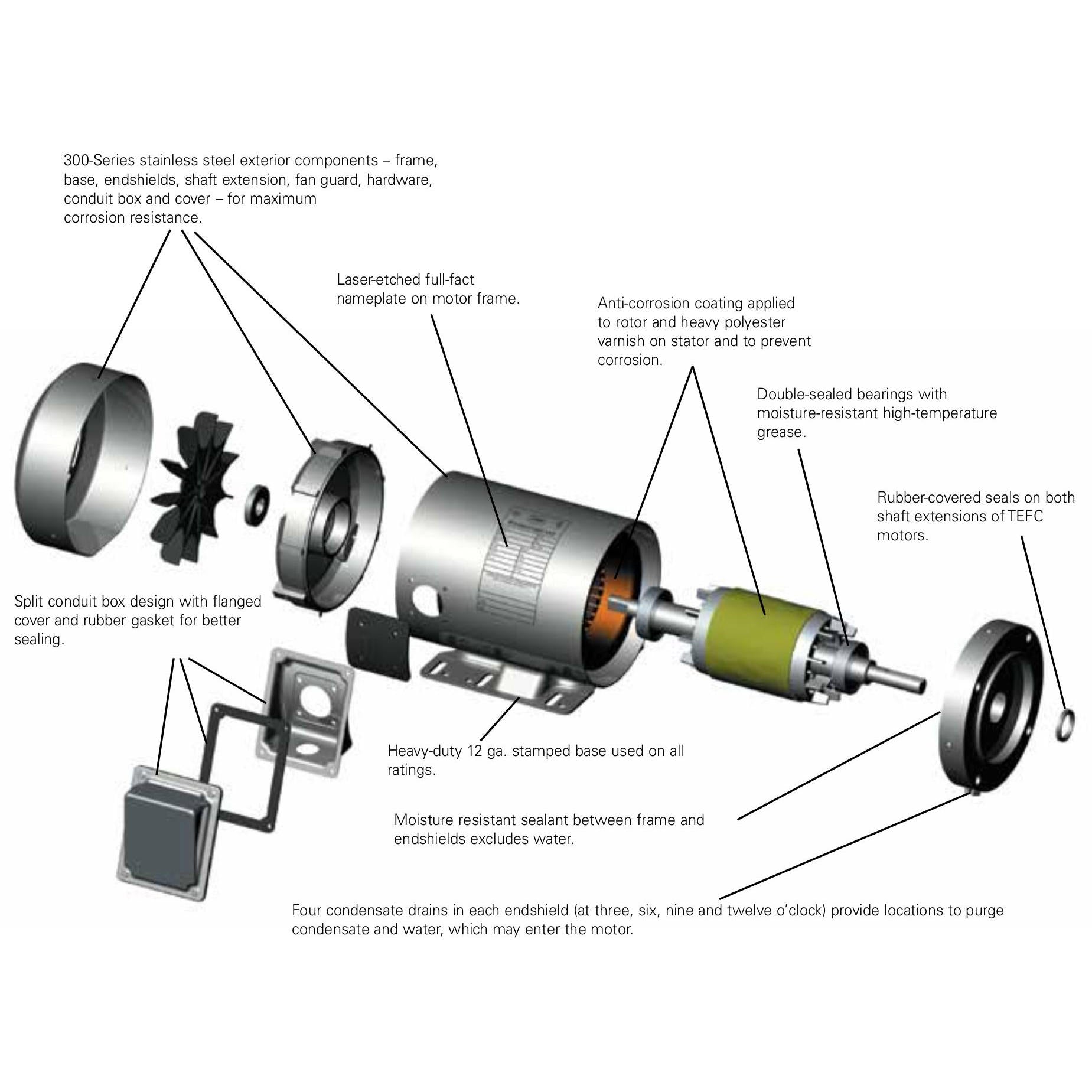

191562.00 2HP Leeson Electric SS Motor, Washdown-5

191562.00 2HP Leeson Electric SS Motor, Washdown

$1,699.00 USD $3,894.00 USD Save $2,195.00 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 191562.00 Barcode: 691720104040

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Product Features
Catalog No 191562.00 Model C6T34WK37A
Product type AC MOTOR Stock Stock
Description ..2HP..3450RPM.56H.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.C6T34FK87A.....WASHGUARD-ALL STAINLESS.NOT.......
Information shown is for current motor's design
 Engineering Data
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 5.3-5 F.L. Amps 2.5 F.L. Amps 4.6/2.3
S. F Amps 6.2-5.6 S. F Amps 2.8 S. F Amps 5.2/2.6
RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49
Frame 56HC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code M
Insul Class F Protection NOT Therm.Prot.
Eff 100% 85.5 Eff 75% PF 87.5
UL Yes CSA Yes Bearing OPE 6205
CC Number 191562.0 CE Yes Bearing PE 6205
Load Type Inverter Type Speed Range 2.0 X BASE SPEED
RPM 3000 Hertz 50
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12
Frame 56HC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code M
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75% PF 88
UL Yes CSA Yes Bearing OPE 6205
CC Number 191562.0 CE Yes Bearing PE 6205
Load Type Inverter Type Speed Range 2.0 X BASE SPEED
Motor Wt. 44.5 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate Mounting RIGID Rotation REV
Assembly Shaft Dia. 5/8 IN Ext. Diag. 005010.01
Cust Part No Outline 16992800 Ext. Diag2
Packaging INDIVIDUAL Winding QT63219
Carton Label     GROUP: 3
Iris Paint NO PAINT Test Card
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK²) 0
Torque 3(Full Load) 11.84(Break Down) 7.61(Pull Up) 10.7(Locked Rotor)
CURRENT (amps) 2.4(Full Load) 14.9(Break Down) 23.9(Pull Up) 25.4(Locked Rotor)
Efficiency (%) 0(Full Load) 87.2(75% Load) 86.7(50% Load) 80.2(25% Load)
PowerFactor 90(Full Load) 84.6(75% Load) 77.3(50% Load) 58.1(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 2.4 100.0 3.0 100.0 3497 1.721 90.0 2.0
BD 14.9 621.0 11.84 395.0 2657 10.1 85.2 2.0
PU 23.9 996.0 7.61 254.0 657 12.1 63.4 2.0
LR 25.4 1058.0 10.7 357.0 0.0 12.2 60.2 2.0
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP

No Speed Torque Curve Data!
Load Curve Data @60/50 Hz, 460 Volts, 2 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 0.9 0.079 0 0.0 0.0 11.0 0.0 -
0.25 1.0 0.463 3576 0.731 80.2 58.1 0.0 -
0.5 1.4 0.862 3552 1.481 86.7 77.3 0.0 -
0.75 1.9 1.281 3525 2.231 87.2 84.6 0.0 -
1.0 2.4 1.721 3497 3.001 86.6 90.0 63.29 -
1.15 2.82 2.022 3482 3.469 84.9 90.0 0.0 -
1.25 3.0 2.187 3464 3.788 85.2 91.5 0.0 -
1.5 3.7 2.681 3427 4.588 83.3 90.9 0.0 -
SOURCE: CALCULATED GROUP: 3
