Features
Features

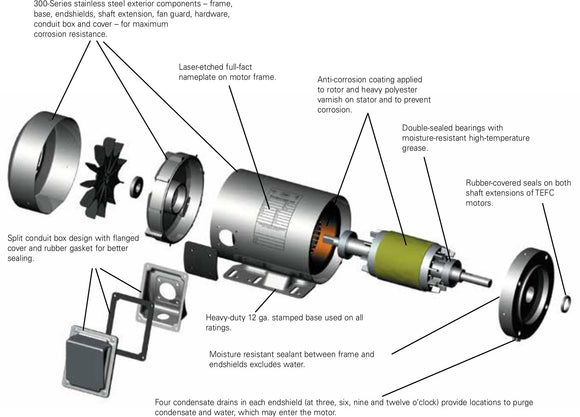

- Extended Thru-bolts
- Auto Reset Protectors
- TEAO designs
- Laser etched full-fact nameplate on frame
- All Stainless exterior
- Anti-corrosion coating applied to interior components
General Specifications
General Specifications
| Model : | C145T34WC8B | Catalog No : | 191542.00 |
| Part Description : | 3HP..3600RPM.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.C-FACE......SST WASHDOWN........ | Category : | Paint Free |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 3 Hp | Output KW : | 2.2 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/460 V |
| Current : | 8.0-7.2/3.6 A | Speed : | 3470 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 86.5 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | M | Frame : | 145TC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6205 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
Technical Specifications
| Electrical Type : | Squirrel Cage Inverter Rated | Starting Method : | Line Or Inverter |
| Poles : | 2 | Rotation : | Reversible |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Stainless Steel | Shaft Type : | T |
| Overall Length : | 13.20 in | Frame Length : | 8.39 in |
| Shaft Diameter : | 0.875 in | Shaft Extension : | 2.25 in |
| Assembly/Box Mounting : | F1/F2 CAPABLE | UPC : | 691720052846 |
| Weight : | 45.00 LB |
