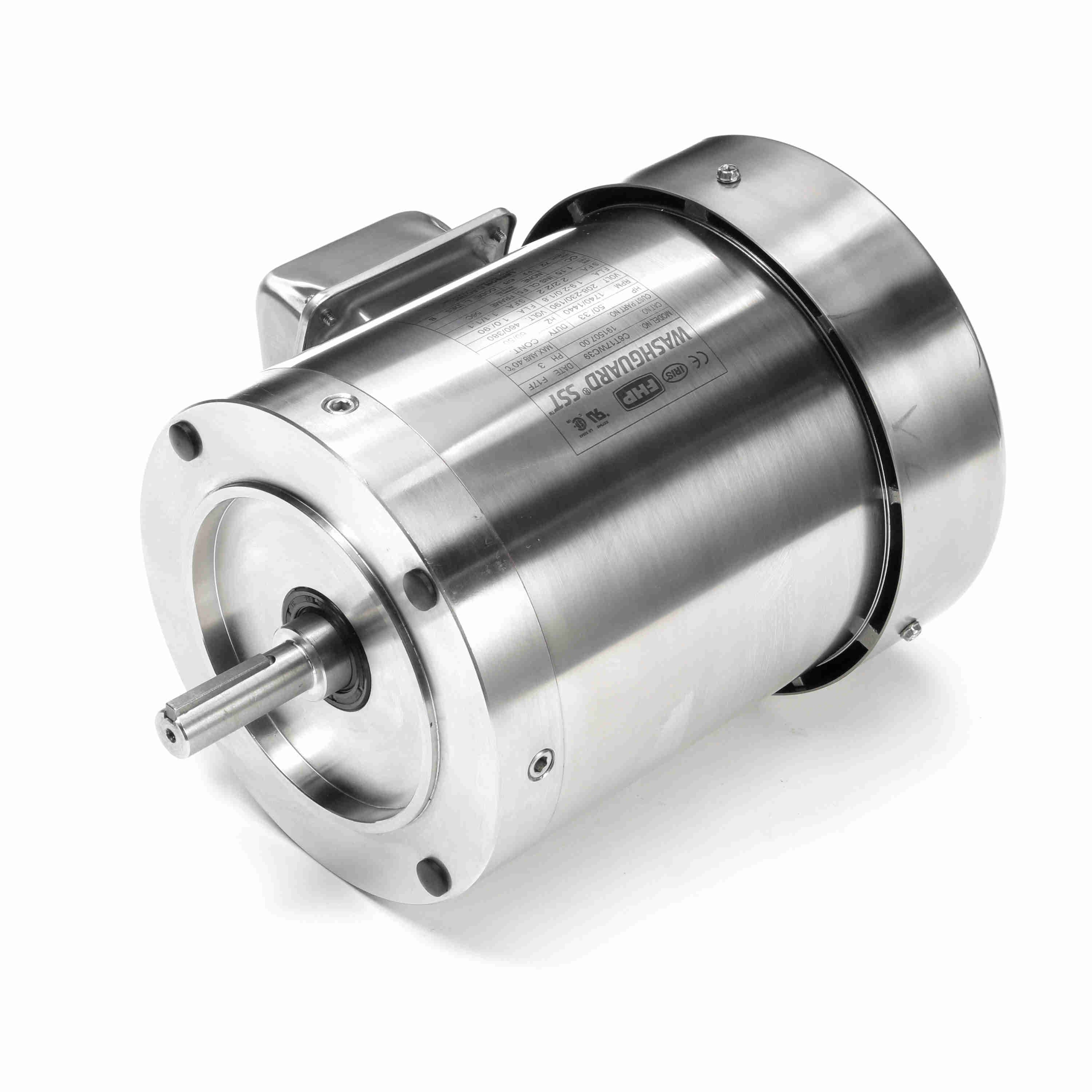

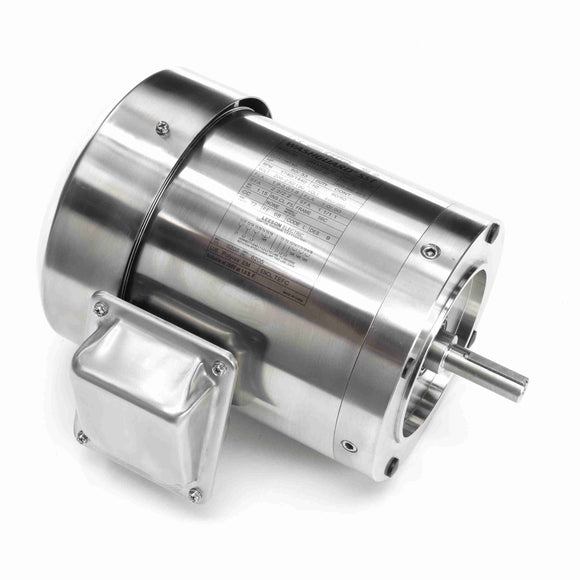

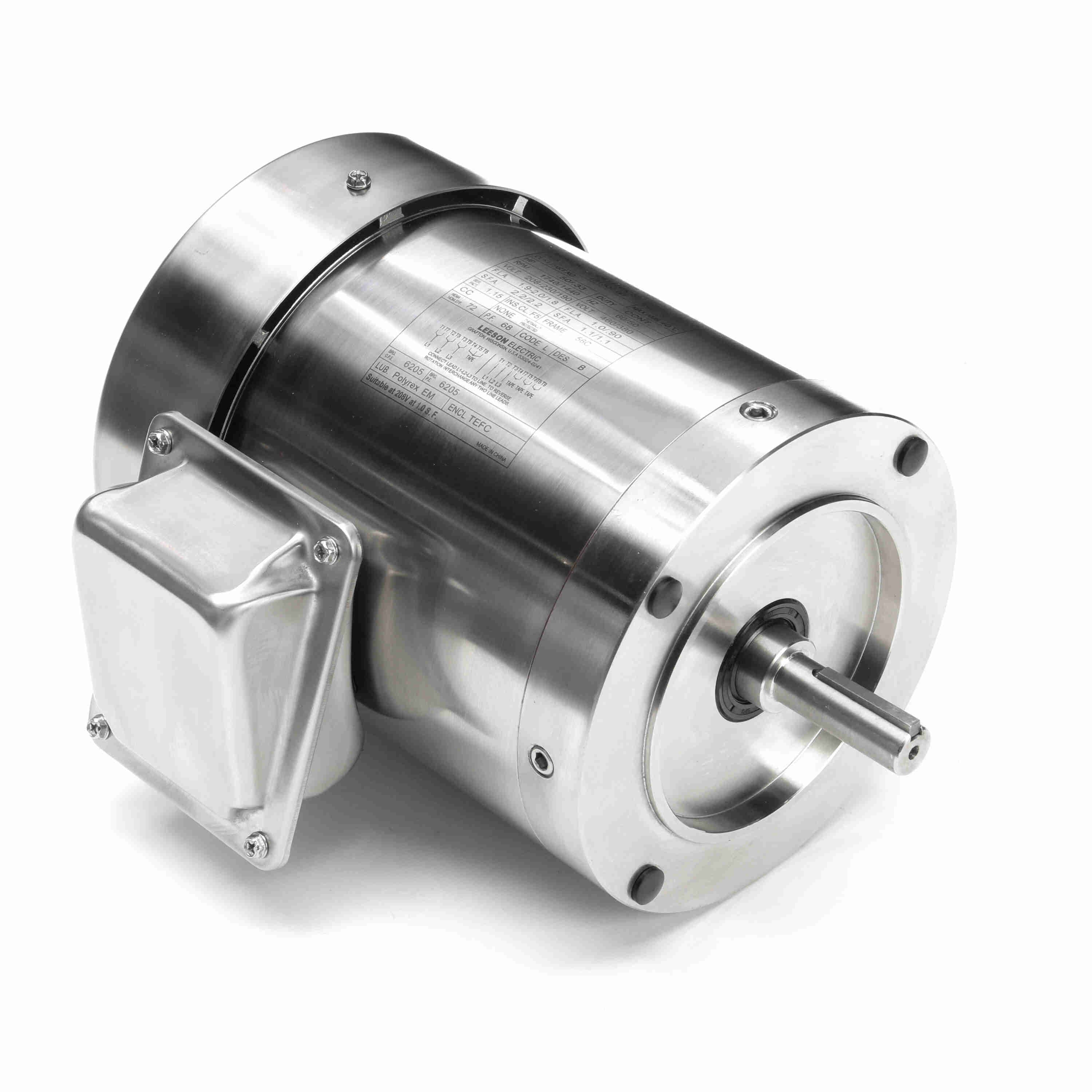

191507.00 Leeson 1/2HP Stainless Steel Electric Motor, Washdown Duty-1
191507.00 Leeson 1/2HP Stainless Steel Electric Motor, Washdown Duty-2
191507.00 Leeson 1/2HP Stainless Steel Electric Motor, Washdown Duty-3
191507.00 Leeson 1/2HP Stainless Steel Electric Motor, Washdown Duty-4

191507.00 Leeson 1/2HP Stainless Steel Electric Motor, Washdown Duty

$1,208.97 $2,651.00 Save $1,442.03

Shipping calculated at checkout

Witmer Motor Service SKU: 191507.00 Barcode: 691720052822

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

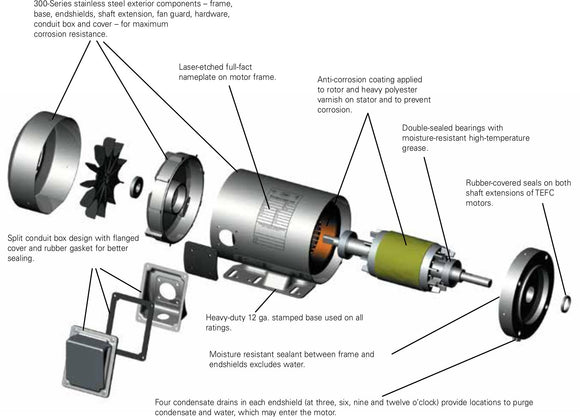

Features

Features
  • Extended Thru-bolts
  • Auto Reset Protectors
  • TEAO designs
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components

General Specifications

General Specifications
Model : C6T17WC39A Catalog No : 191507.00
Part Description : 1/2 HP 1800 208-230/460 TEFC 3PH 60HZ SS C FACE NO BASE Category : Paint Free
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.50 HP Output KW : 0.37 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 1.9-2.0/1.0 A Speed : 1740 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 72 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : L Frame : 56C
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated Starting Method : Line Or Inverter
Poles : 4 Rotation : Reversible
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Stainless Steel Shaft Type : NEMA 56
Overall Length : 11.10 in Frame Length : 5.49 in
Shaft Diameter : 0.625 in Shaft Extension : 1.87 in
Assembly/Box Mounting : F1 ONLY UPC : 691720052822
Weight : 28.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 0.0 42.25 176.0 0 0.00 0.0 0.50
Break-Down 0.00 0.0 61.13 254.0 0 0.00 0.0 0.50
Full Load 0.74 100.0 24.07 100.0 1,795 0.45 0.0 0.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.42
  • 0.040
  • 0.0
  • 0.0
  • 1,795
  • 0.0
  • 0.00
  • 25 %
  • 0.44
  • 0.140
  • 67.0
  • 40.0
  • 1,788
  • 0.0
  • 5.90
  • 50 %
  • 0.52
  • 0.240
  • 78.0
  • 58.0
  • 1,773
  • 0.0
  • 11.70
  • 75 %
  • 0.62
  • 0.340
  • 81.6
  • 69.0
  • 1,759
  • 0.0
  • 17.94
  • 100 %
  • 0.74
  • 0.450
  • 82.6
  • 77.0
  • 1,744
  • 31.3
  • 24.07
  • 125 %
  • 0.87
  • 0.560
  • 82.6
  • 82.0
  • 1,729
  • 0.0
  • 30.45
  • 150 %
  • 1.02
  • 0.680
  • 81.8
  • 84.0
  • 1,713
  • 0.0
  • 36.82
