191489.00 1.5HP Leeson Electric SS Motor, Washdown-1
191489.00 1.5HP Leeson Electric SS Motor, Washdown-2
191489.00 1.5HP Leeson Electric SS Motor, Washdown-3
191489.00 1.5HP Leeson Electric SS Motor, Washdown-4
191489.00 1.5HP Leeson Electric SS Motor, Washdown-5

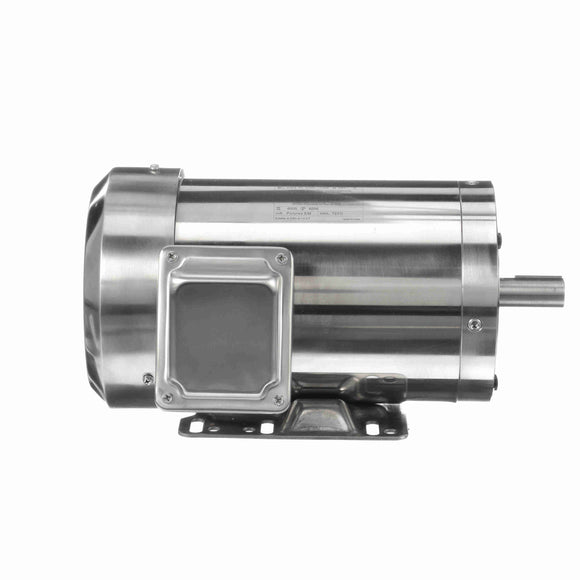

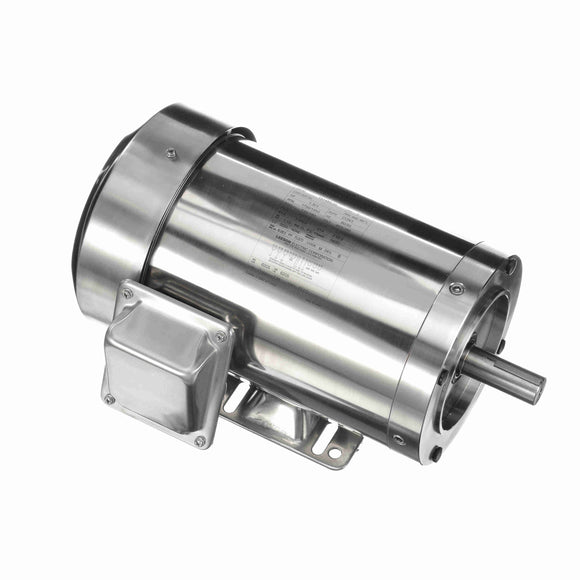

191489.00 1.5HP Leeson Electric SS Motor, Washdown

$1,240.73 USD $3,266.00 USD Save $2,025.27 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 191489.00 Barcode: 691720245545

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Product Features
Catalog No 191489.00 Model C145T17WK35 A
Product type AC MOTOR Stock Stock

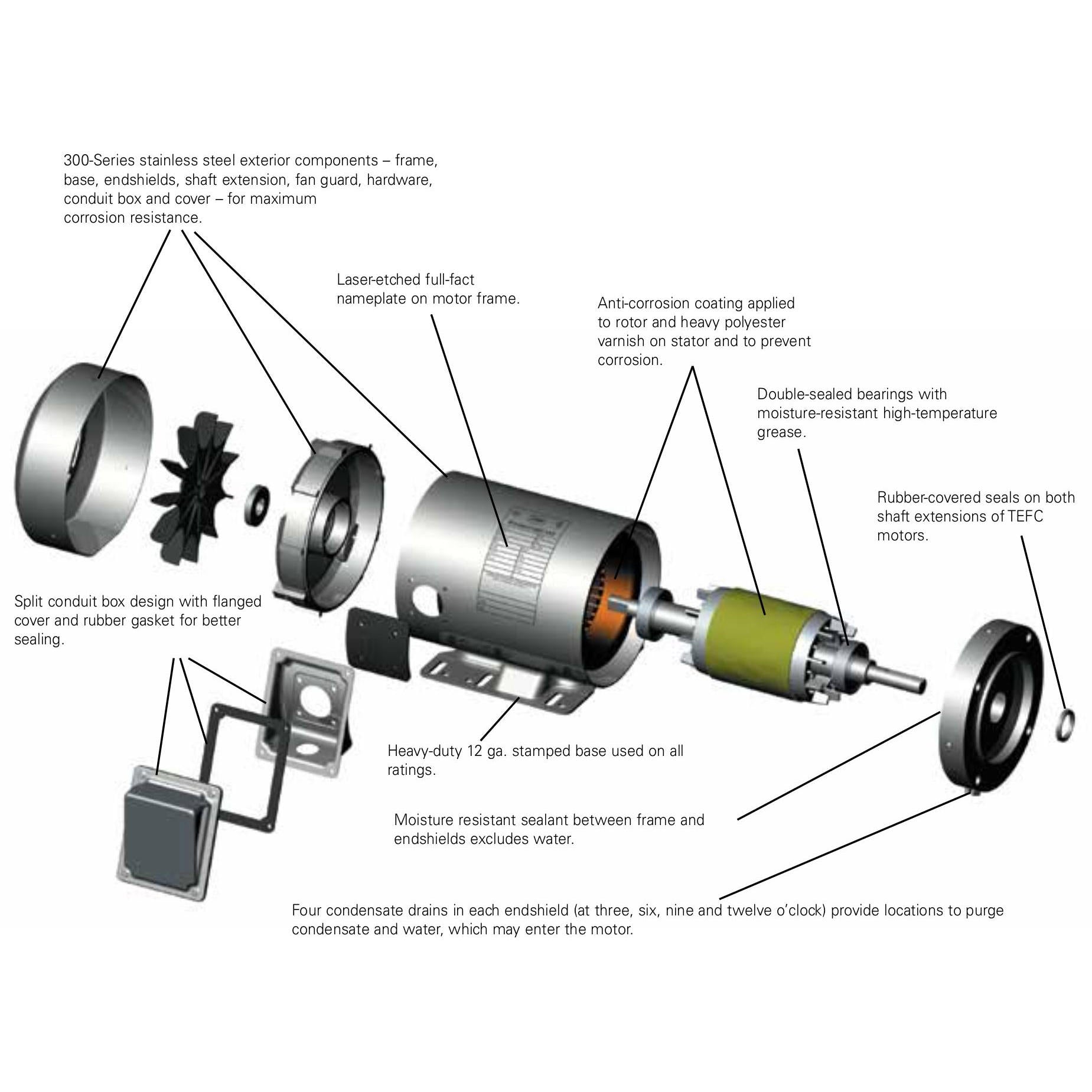

Description ..1 1/2HP..1740RPM.145TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C......WASHGUARD - ALL STAINLESS........
Information shown is for current motor's design
 Engineering Data
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 4.8-4.4 F.L. Amps 2.2 F.L. Amps 3.8/1.9
S. F Amps 5.5-5 S. F Amps 2.5 S. F Amps 4/2
RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code M
Insul Class F Protection NOT Therm.Prot.
Eff 100% 86.5 Eff 75% PF 73.5
UL Yes CSA Yes Bearing OPE 6205
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type Inverter Type Speed Range NONE
RPM 1500 Hertz 50
HP 1 Duty CONTINUOUS TYPE TF
KW 0.75
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code M
Insul Class F Protection NOT Therm.Prot.
Eff 100% 85.5 Eff 75% PF 70
UL Yes CSA Yes Bearing OPE 6205
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type Inverter Type Speed Range NONE
Motor Wt. 48 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. 005010.01
Cust Part No Outline 16993400 Ext. Diag2
Packaging B Winding QT63421
Carton Label     GROUP: 3
Iris Paint VERIFY Test Card 01
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK²) -1 LB-FT^2
Torque 4.51(Full Load) 21.05(Break Down) 15.28(Pull Up) 18.1(Locked Rotor)
CURRENT (amps) 2.2(Full Load) 12.5(Break Down) 19.4(Pull Up) 19.9(Locked Rotor)
Efficiency (%) 0(Full Load) 84.1(75% Load) 79.5(50% Load) 70.5(25% Load)
PowerFactor 75.5(Full Load) 66.3(75% Load) 54.4(50% Load) 35.7(25% Load)
Speed Torque Curve @ 60 Hz, 460 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 2.2 100.0 4.51 100.0 1745 1.323 75.5 1.5
BD 12.5 568.0 21.05 467.0 1286 8.3 83.3 1.5
PU 19.4 882.0 15.28 339.0 257 9.6 61.9 1.5
LR 19.9 905.0 18.1 401.0 0.0 9.5 59.5 1.5
SOURCE: CALCULATED GROUP: 3
Speed Torque Curve @ 50 Hz, 380 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP

No Speed Torque Curve Data!
Load Curve Data @60/50 Hz, 460 Volts, 1 1/2 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 1.3 0.106 0 0.0 0.0 10.2 0.0 -
0.25 1.4 0.398 1785 1.106 70.5 35.7 0.0 -
0.5 1.6 0.694 1773 2.19 79.5 54.4 0.0 -
0.75 1.9 1.003 1759 3.375 84.1 66.3 0.0 -
1.0 2.2 1.323 1745 4.513 84.6 75.5 53.18 -
1.15 2.48 1.54 1735 5.238 83.8 77.9 0.0 -
1.25 2.6 1.659 1730 5.713 84.6 80.1 0.0 -
1.5 3.0 2.011 1713 6.9 83.5 84.1 0.0 -
SOURCE: CALCULATED GROUP: 3
