191421.00 Leeson 1HP Electric Stainless Steel Moto-1
191421.00 Leeson 1HP Electric Stainless Steel Moto-2
191421.00 Leeson 1HP Electric Stainless Steel Moto-3
191421.00 Leeson 1HP Electric Stainless Steel Moto-4

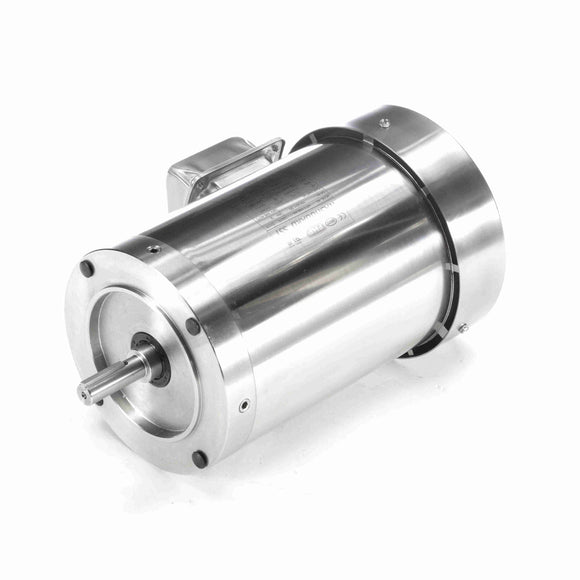

191421.00 Leeson 1HP Electric Stainless Steel Moto

$1,061.97 $2,979.00 Save $1,917.03

Shipping calculated at checkout

Witmer Motor Service SKU: 191421.00 Barcode: 691720354810

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

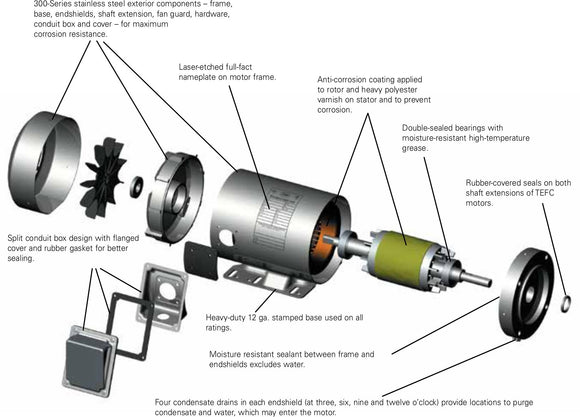

Features

Features
  • Paint free exterior
  • BISSC certified for the Baking Industry
  • Stainless Steel Output shafts
  • Repositional drain plugs for all angle mounting
  • Double Sealed bearings
  • Output shaft seal
  • Inverter Duty IRIS™ insulation system
  • Laser etched full-fact nameplate on frame
  • All Stainless exterior
  • Anti-corrosion coating applied to interior components

General Specifications

General Specifications
Model : C6T11NC44A Catalog No : 191421.00
Part Description : ..1HP..1140/950RPM.56.TEFC.230/460V.3PH.60/50HZ.CONT.40C.1.15SF.C FACE.C6T11NC44A.....General Purpose.NOT....... Category : Paint Free
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1 HP Output KW : 0.75 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 3.8-3.8/1.9 A Speed : 1150 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 82.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : K Frame : 56C
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 6 Rotation : Reversible
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 13.10 in Frame Length : 7.54 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720354810
Weight : 47.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 0.0 12.50 277.0 180 0.00 0.0 1.00
Locked-Rotor 11.40 633.0 12.55 278.0 0 0.00 0.0 1.00
Break-Down 0.00 0.0 17.40 388.0 843 0.00 0.0 1.00
Full Load 1.80 100.0 4.50 100.0 1,158 0.00 0.0 1.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.30
  • 0.070
  • 0.0
  • 6.8
  • 1,198
  • 0.0
  • 0.00
  • 25 %
  • 1.40
  • 0.264
  • 71.6
  • 23.7
  • 1,189
  • 0.0
  • 1.12
  • 50 %
  • 1.50
  • 0.463
  • 81.5
  • 38.7
  • 1,180
  • 0.0
  • 2.25
  • 75 %
  • 1.60
  • 0.670
  • 86.7
  • 52.6
  • 1,169
  • 0.0
  • 3.50
  • 100 %
  • 1.80
  • 0.888
  • 83.4
  • 61.9
  • 1,158
  • 44.0
  • 4.50
  • 125 %
  • 2.10
  • 1.120
  • 82.0
  • 66.9
  • 1,144
  • 0.0
  • 5.65
  • 150 %
  • 2.40
  • 1.360
  • 79.8
  • 71.1
  • 1,132
  • 0.0
  • 6.75
