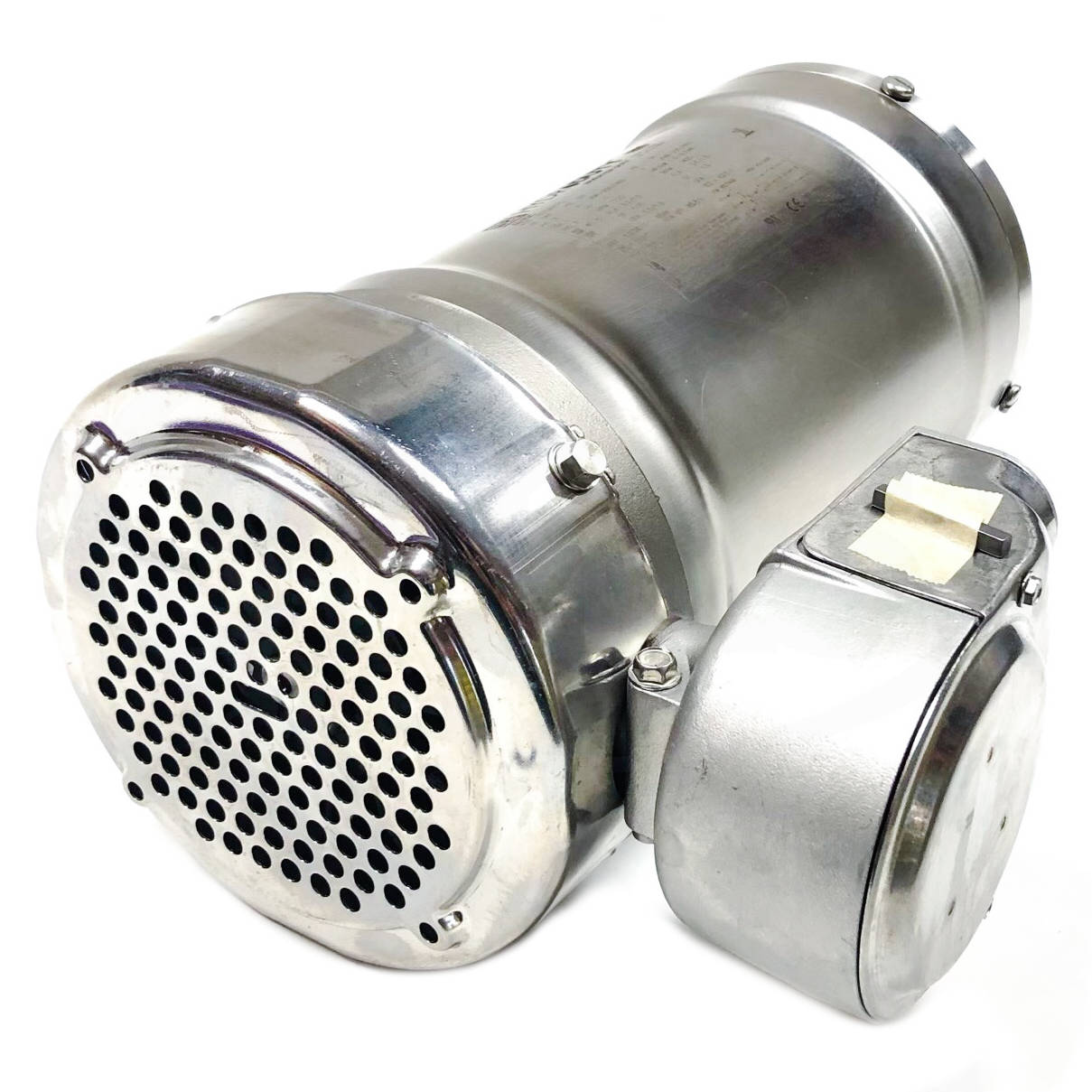

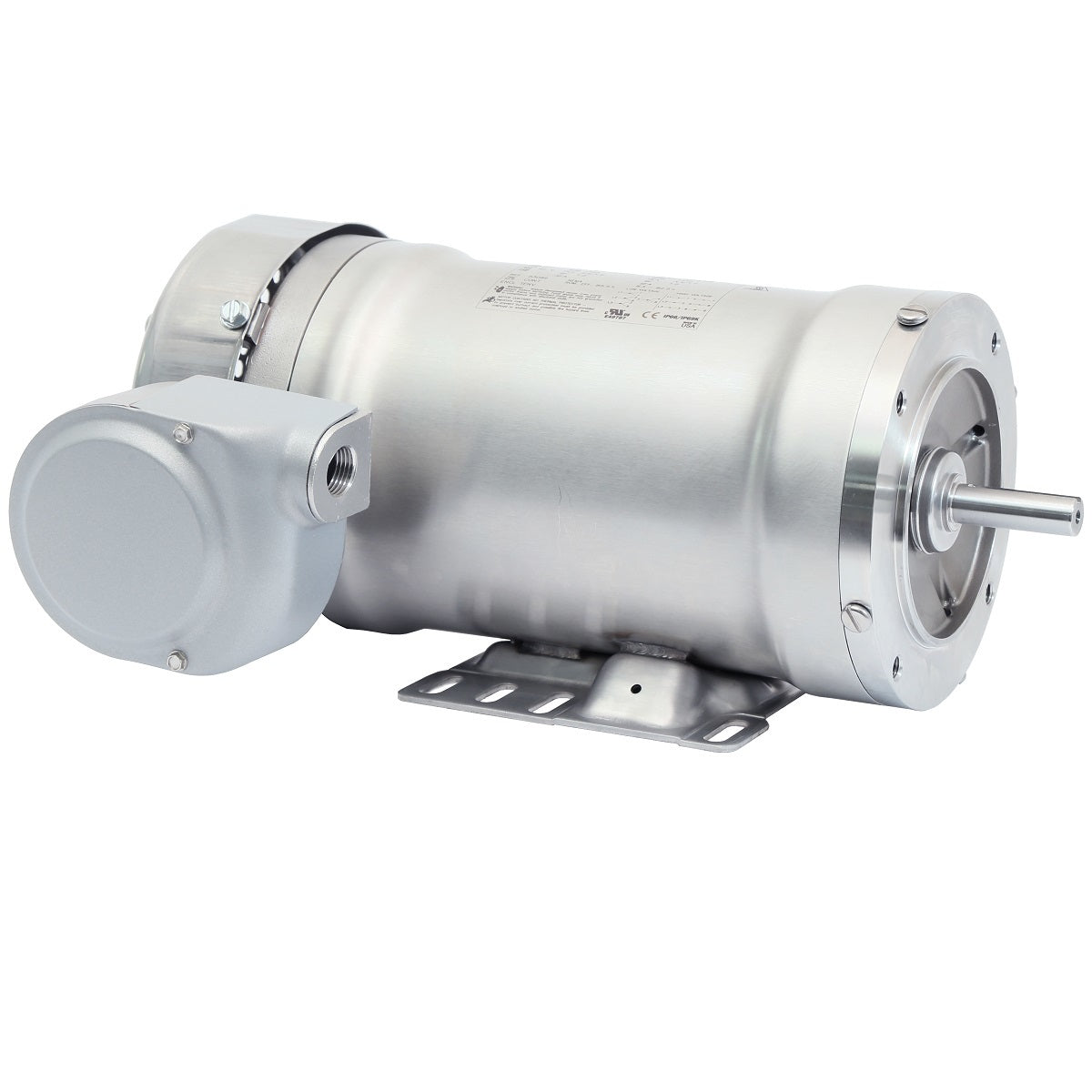

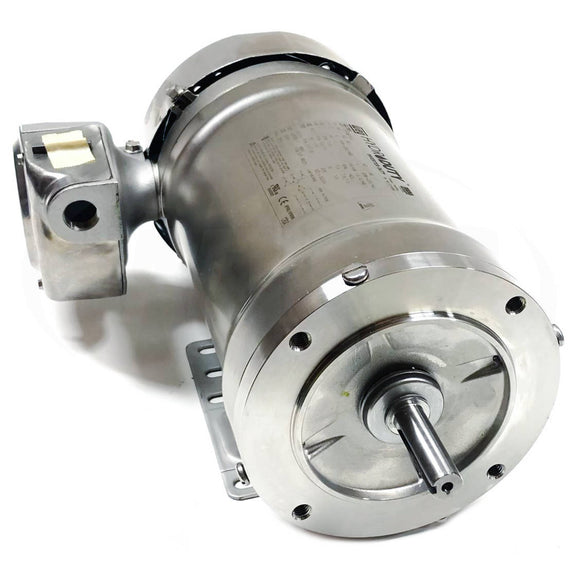

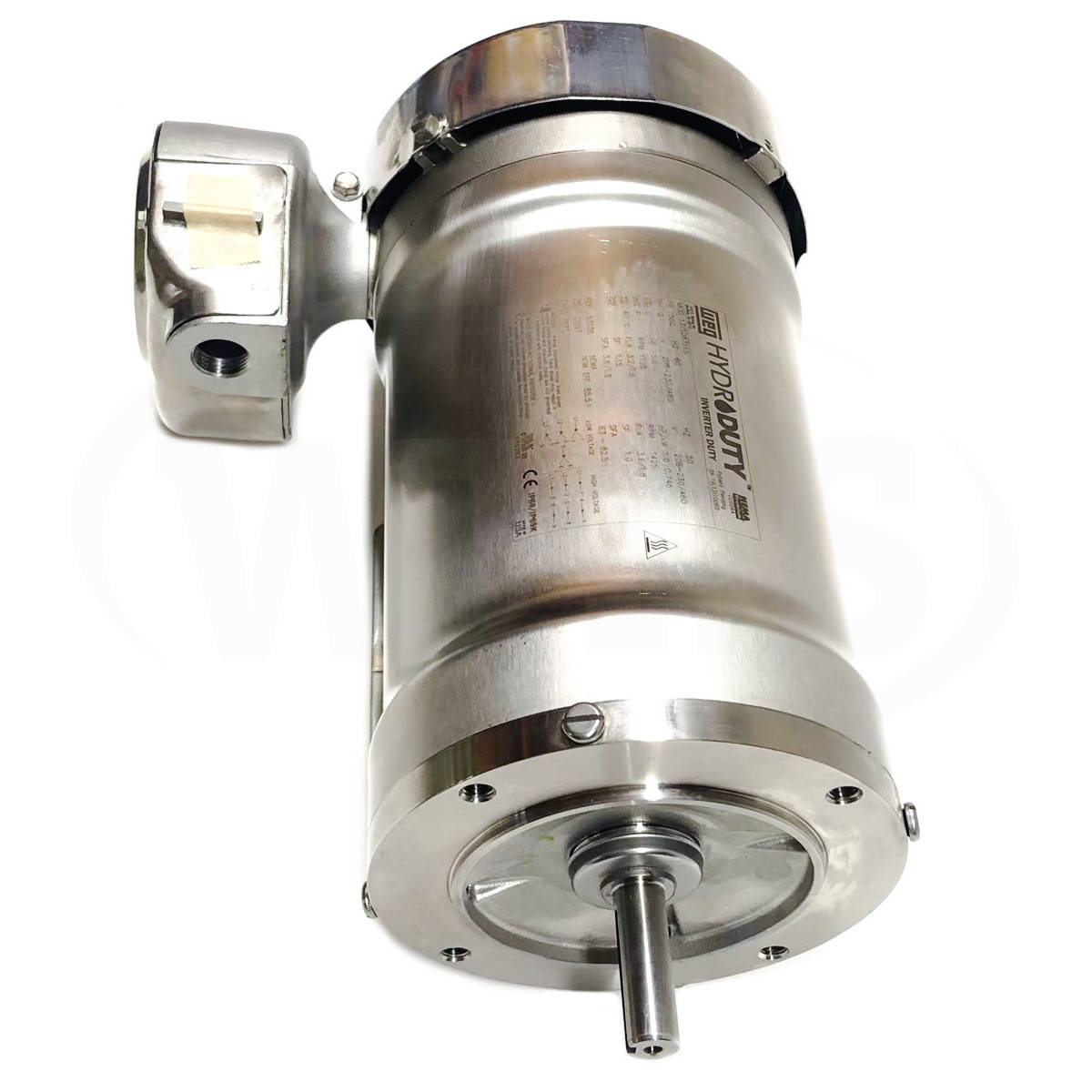

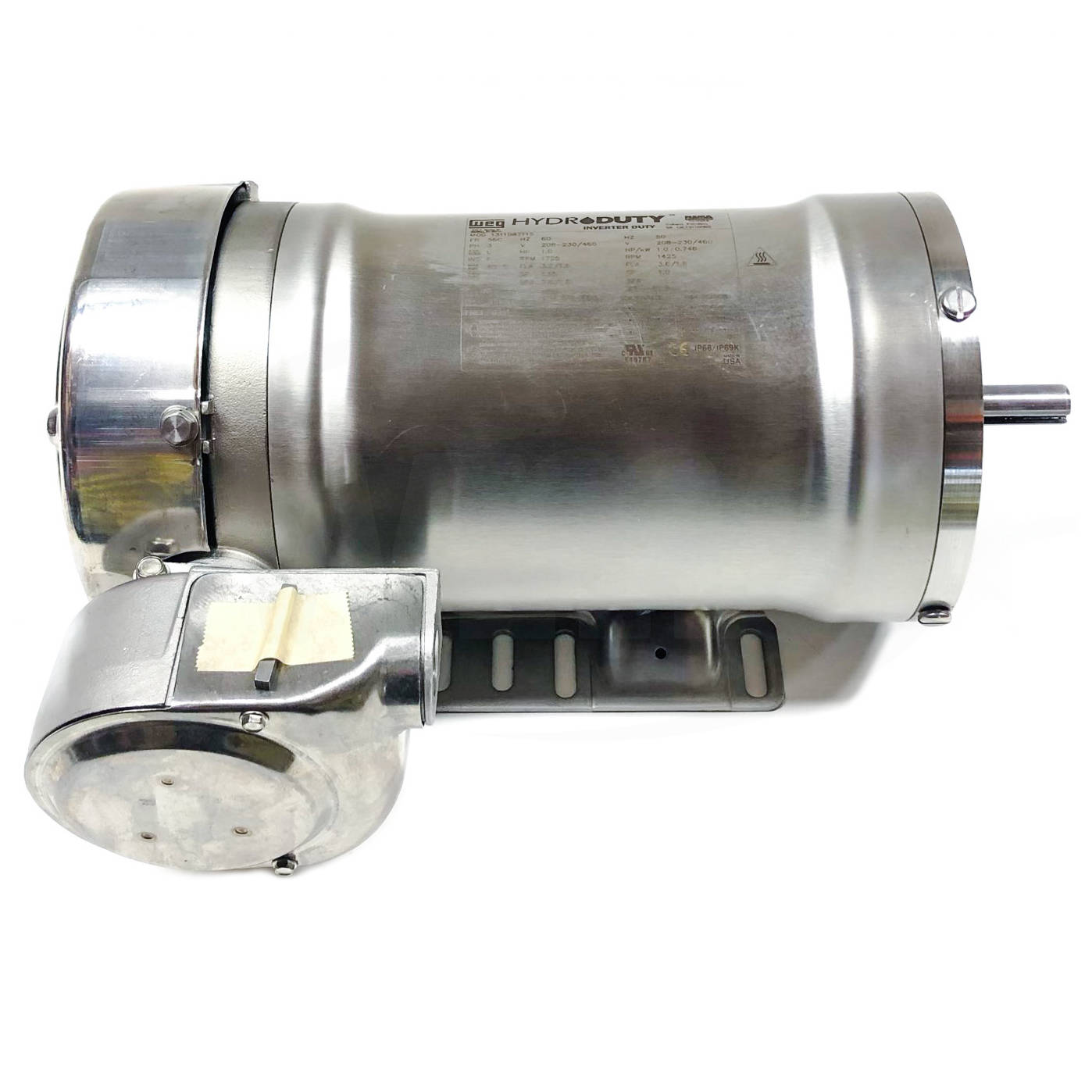

Description
Encapsulated winding and a patented sealing system to ensure they will “standup” in the most severe applications.
Specifications
| Standard | NEMA MG-1 |
|---|---|
| Degree of Protection | IP66 |
| Mounting | F-1 |
| Flange | C |
| Frame Material | Stainless steel |
| Frequency | 60/50 Hz |
| Output rating | 1 HP |
| Enclosure | TEFC |
| Number of poles | 04P |
|---|---|
| Motor Application | HydroDuty |
| Mounting | Foot-mounted |
| Efficiency | NEMA Premium Efficiency |
| Terminal box¹ | Left position |
| Frame | 56C |
| Voltage | 230/460 V |
| Synchronous speed | 1800/1500 rpm |
