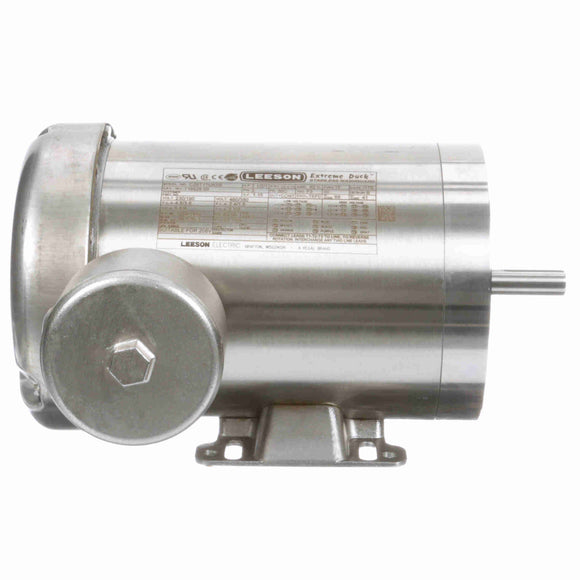

119528.00 Leeson 1.5HP Washdown Electric Motor, 1800RPM-1

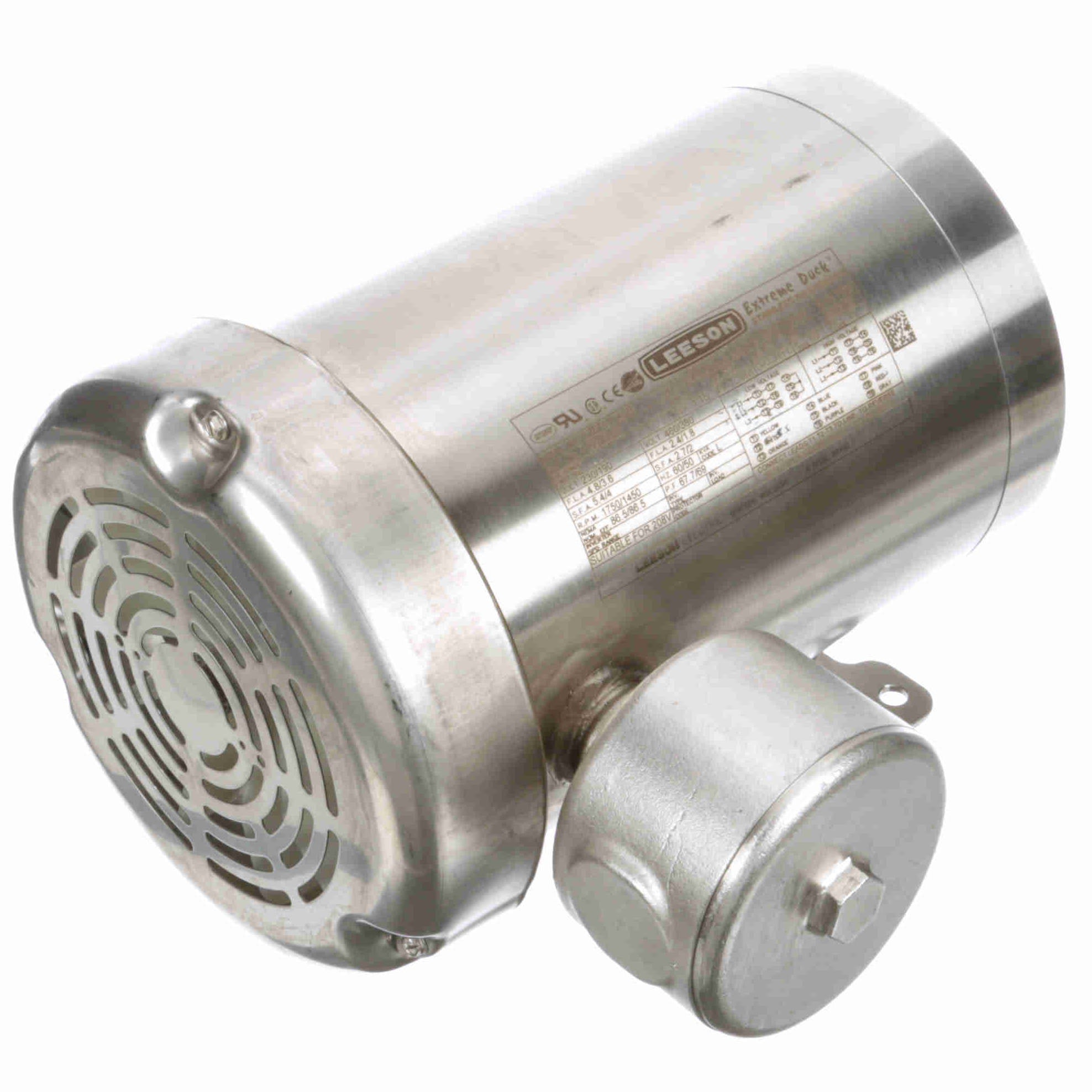

119528.00 Leeson 1.5HP Washdown Electric Motor, 1800RPM-2

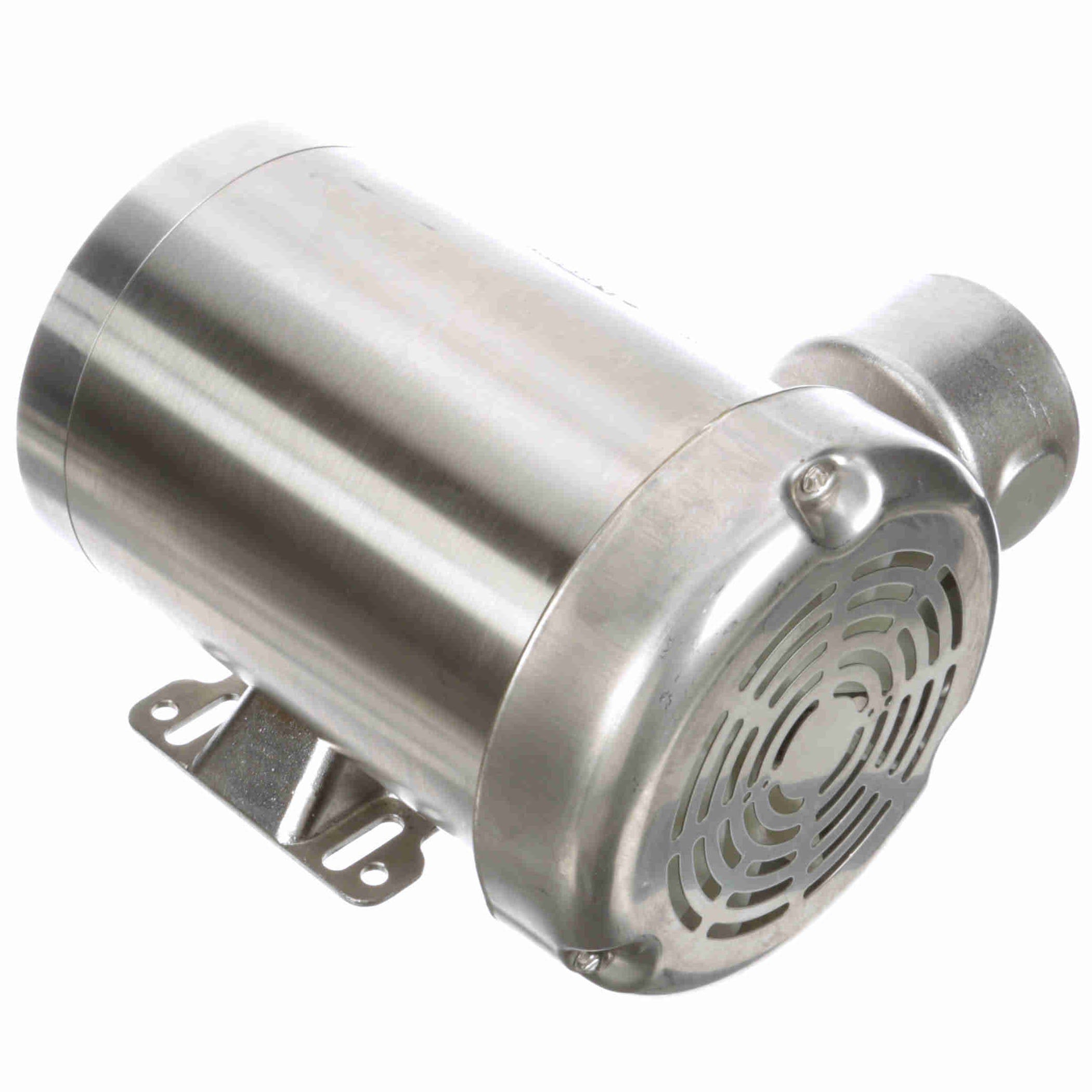

119528.00 Leeson 1.5HP Washdown Electric Motor, 1800RPM-3
119528.00 Leeson 1.5HP Washdown Electric Motor, 1800RPM-4

119528.00 Leeson 1.5HP Washdown Electric Motor, 1800RPM

$2,014.53 USD $4,078.00 USD Save $2,063.47 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 119528.00 Barcode: 691720053454

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Q-Car(TM) rotor cartridge for quick access
  • Double-sealed ball bearings with high temperature grease
  • Non-wicking lead wires; Two-piece shaft seal with flinger
  • Chemical and abrasion resistant lead markers
  • Conduit box rotates 360 degrees on TEFC models
  • Enhanced encapsulation process
  • Total winding encapsulation using an epoxy resin
  • LEESON’s exclusive IRIS® Inverter-Rated Insulation System provides extra protection and long life, especially when used in applications driven by an Inverter
  • CSA Energy Efficiency Verification Program, report number EEV 78720-1
  • IP69K enclosure protection;Color Coded Leads; Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720053454 Weight: 58.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 4.8/2.4 A Speed: 1750 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 67.7
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 69

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 9.12 Ohms Mounting: Rigid base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: NEMA 56 Overall Length: 12.44 in
Frame Length: 7.50 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 12.09 504.0 20.40 453.0 1,200 7.81 0.0 1.50
Full Load 2.40 100.0 4.50 100.0 1,752 1.31 75.3 1.50
Pull-Up 16.06 669.0 17.00 378.0 200 9.40 0.0 1.50
Locked-Rotor 18.50 771.0 17.20 382.0 0 9.91 0.0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.23 1.33 1.53 1.81 2.15 2.52 2.94
Rated Output (KW) 0.10 0.38 0.67 0.97 1.29 1.61 1.95
Efficiency (%) 0.0 74.4 84.2 87.2 86.5 86.0 84.6
Power Factor (%) 9.9 35.4 55.2 67.3 75.4 80.2 83.0
Speed (RPM) 1,797 1,786 1,773 1,761 1,746 1,732 1,716
Temp. Rise @ FL 0.0 0.0 0.0 0.0 45.0 0.0 0.0
Torque (ft-lbs) 0.00 1.10 2.25 3.38 4.50 5.63 6.75
