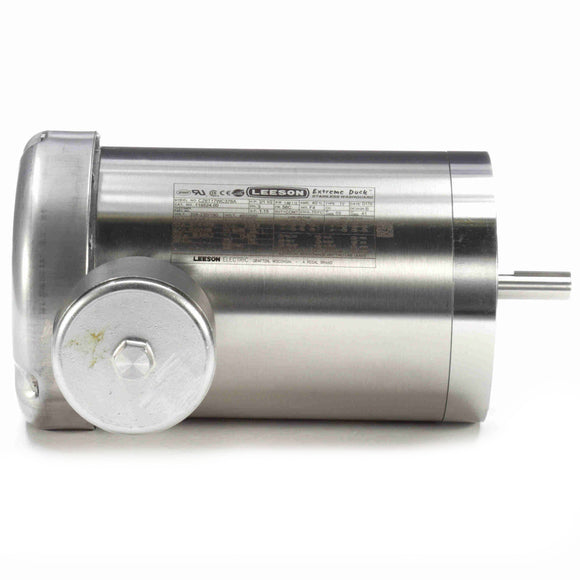

119524.00 Leeson 2HP Washdown Electric Motor, 1800RPM-1

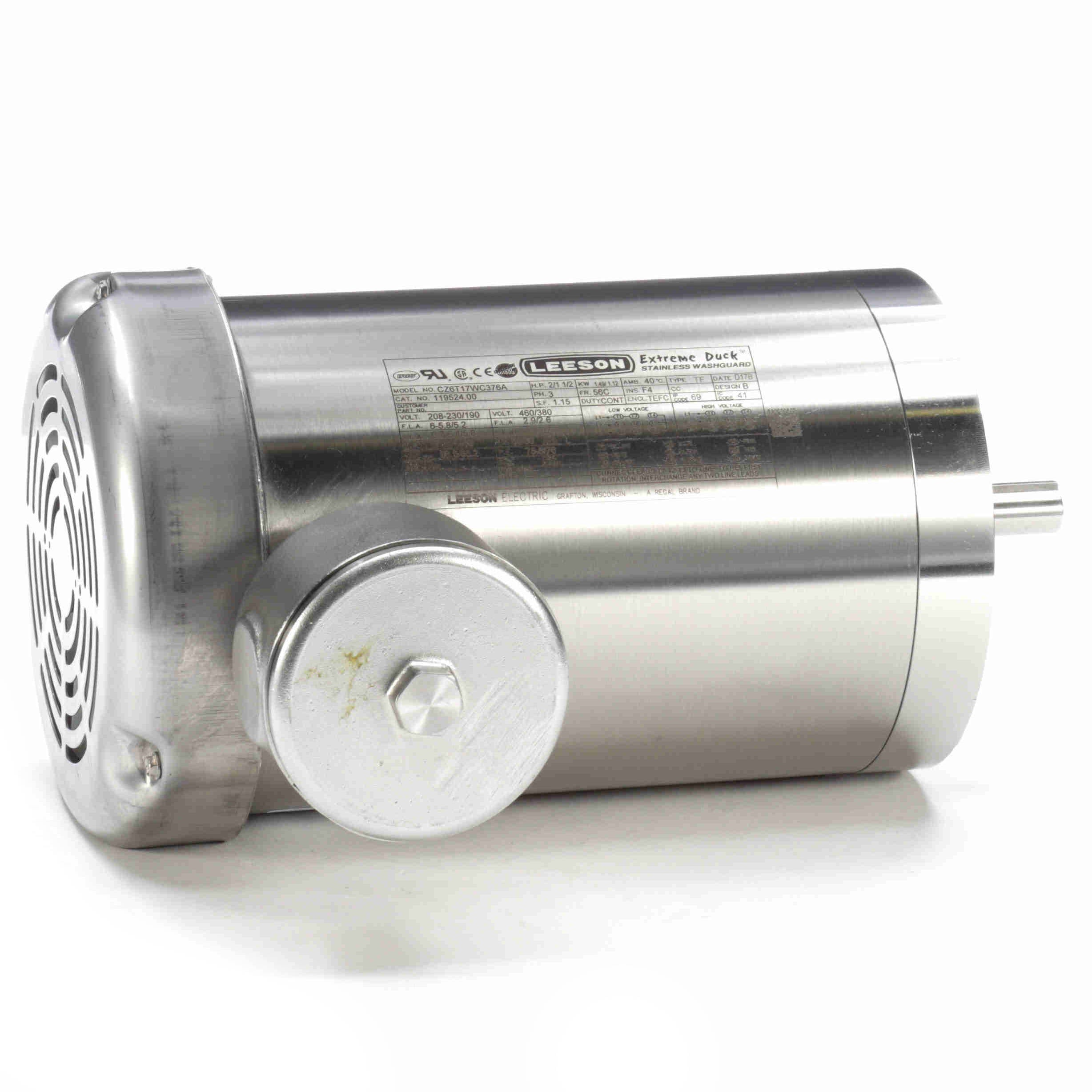

119524.00 Leeson 2HP Washdown Electric Motor, 1800RPM-2

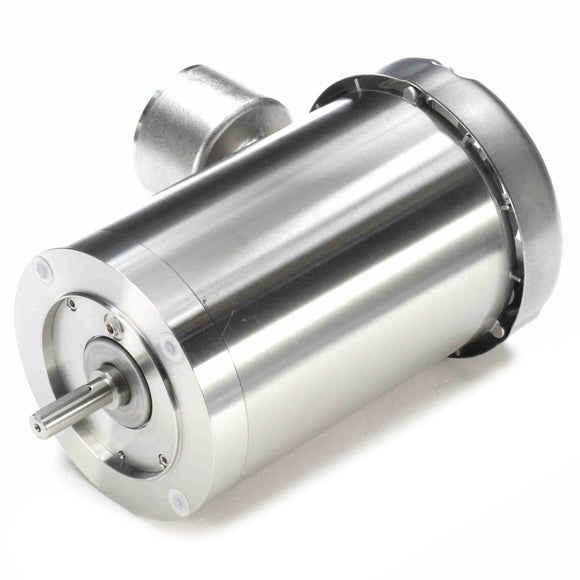

119524.00 Leeson 2HP Washdown Electric Motor, 1800RPM-3

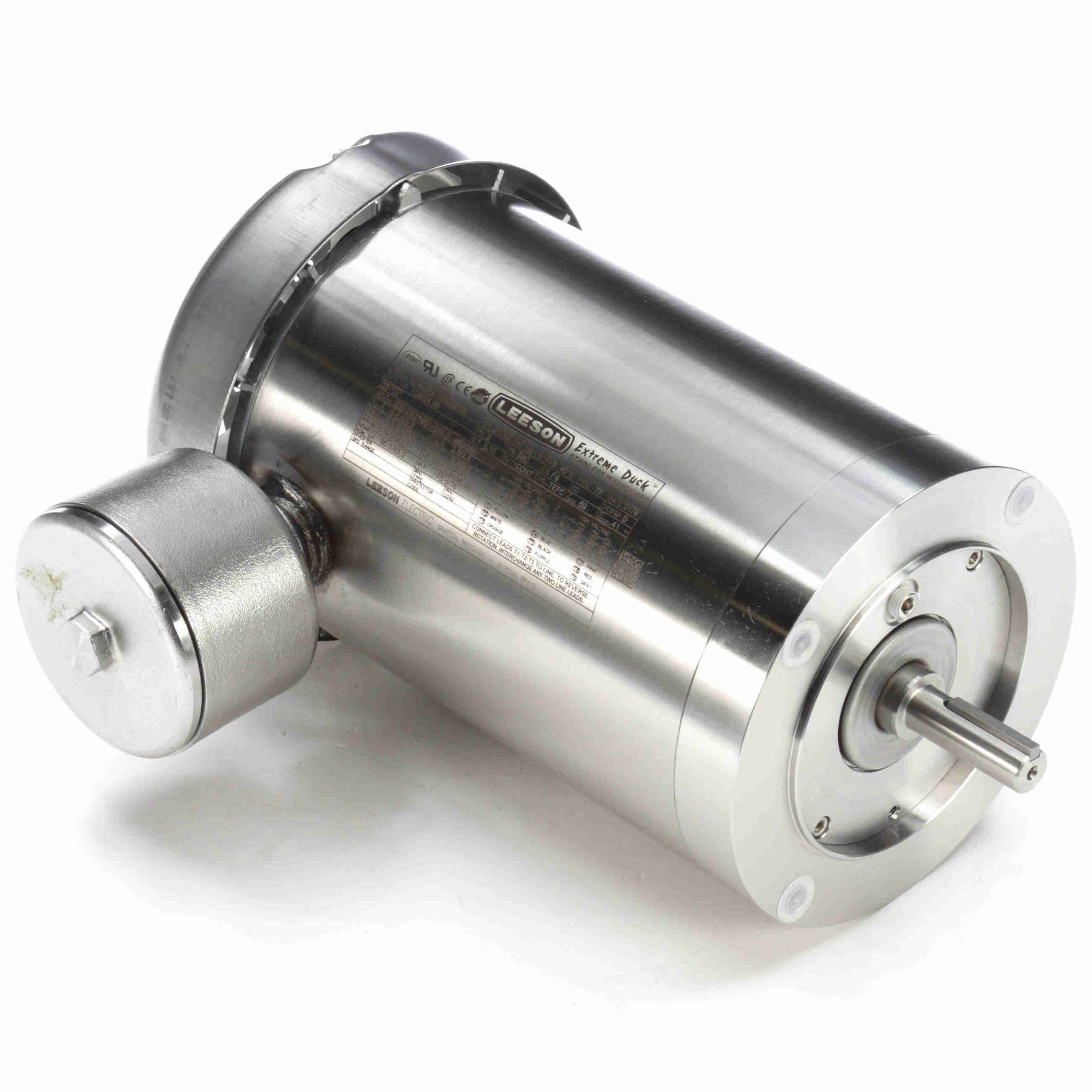

119524.00 Leeson 2HP Washdown Electric Motor, 1800RPM-4

119524.00 Leeson 2HP Washdown Electric Motor, 1800RPM

$1,919.99 USD $4,026.00 USD Save $2,106.01 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 119524.00 Barcode: 691720053393

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Q-Car(TM) rotor cartridge for quick access
  • Double-sealed ball bearings with high temperature grease
  • Non-wicking lead wires; Two-piece shaft seal with flinger
  • Chemical and abrasion resistant lead markers
  • Conduit box rotates 360 degrees on TEFC models
  • Enhanced encapsulation process
  • Total winding encapsulation using an epoxy resin
  • LEESON’s exclusive IRIS® Inverter-Rated Insulation System provides extra protection and long life, especially when used in applications driven by an Inverter
  • CSA Energy Efficiency Verification Program, report number EEV 78720-1
  • IP69K enclosure protection;Color Coded Leads; Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720053393 Weight: 60.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 6.0-5.8/2.9 A Speed: 1745 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 75.6
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 69

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 6 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: T Overall Length: 13.19 in
Frame Length: 8.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 25.37 1,268.0 24.60 410.0 120 14.10 0.0 2.00
Locked-Rotor 26.58 1,329.0 24.60 410.0 0 14.36 0.0 2.00
Full Load 2.00 100.0 6.00 100.0 1,757 1.70 72.1 2.00
Break-Down 19.17 958.0 28.80 480.0 1,100 12.00 0.0 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 1.70 1.90 2.20 2.60 2.90 3.20 3.50 4.10
Rated Output (KW) 0.10 0.50 0.95 1.35 1.75 2.00 2.15 2.60
Efficiency (%) 0.0 74.5 83.5 85.5 86.5 86.0 85.5 84.0
Power Factor (%) 7.0 33.5 52.0 64.0 75.6 76.5 77.5 80.5
Speed (RPM) 1,800 1,785 1,775 1,762 1,745 1,740 1,730 1,718
Temp. Rise @ FL 0.0 0.0 0.0 0.0 55.0 75.0 85.0 0.0
Torque (ft-lbs) 0.00 1.50 3.00 4.50 6.00 6.90 7.50 9.00
