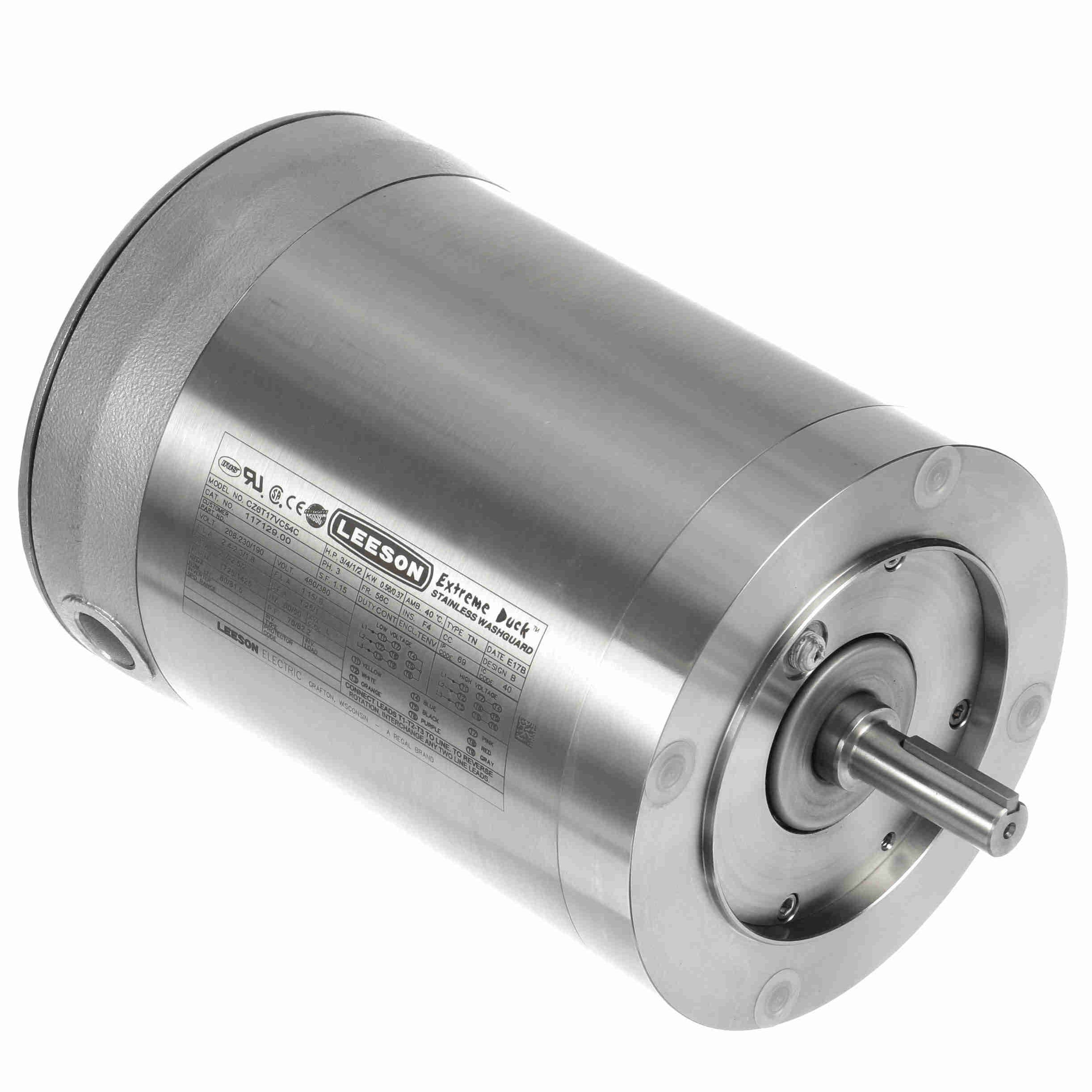

117129.00 Leeson 3/4HP Washdown Electric Motor, 1800RPM-1

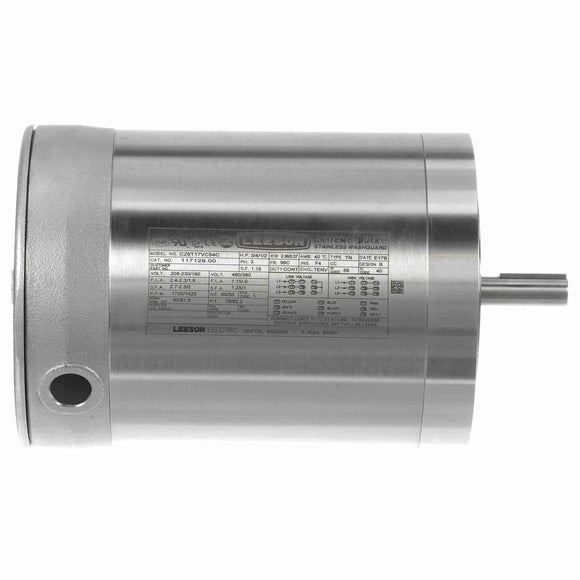

117129.00 Leeson 3/4HP Washdown Electric Motor, 1800RPM-2

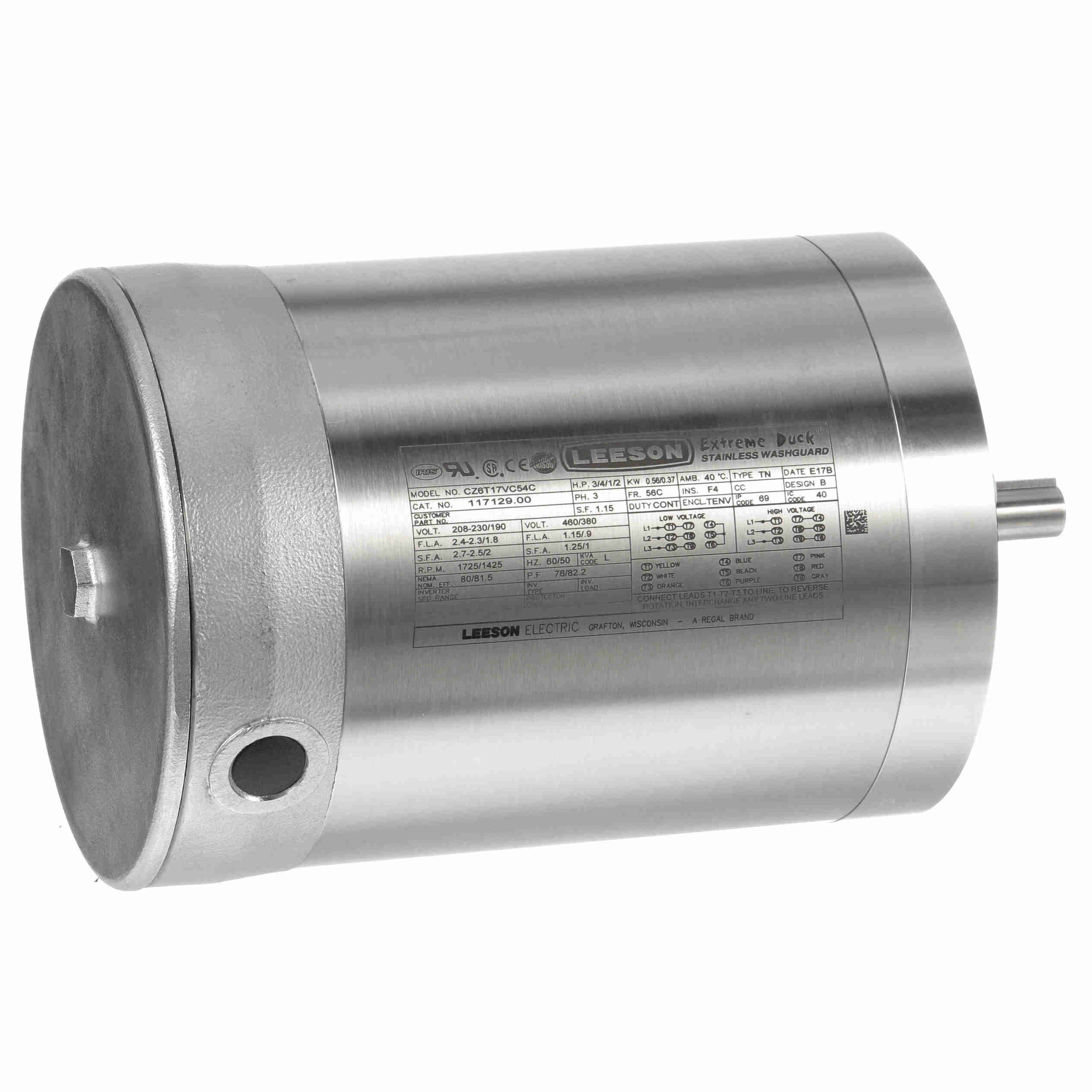

117129.00 Leeson 3/4HP Washdown Electric Motor, 1800RPM-3
117129.00 Leeson 3/4HP Washdown Electric Motor, 1800RPM-4

117129.00 Leeson 3/4HP Washdown Electric Motor, 1800RPM

$1,178.97 $2,988.00 Save $1,809.03

Shipping calculated at checkout

Witmer Motor Service SKU: 117129.00 Barcode: 691720367520

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • WASHGUARD efficiencies meet EPAct mandates for non-exempt motors when tested without shaft seals
  • LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
  • IP69K enclosure protection
  • Q-Car(TM) rotor cartridge for quick access; Color Coded Leads;Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720367520 Weight: 43.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 2.4-2.3/1.2 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 80 % Power Factor: 76
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 69

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.47 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 1.12 100.0 36.00 100.0 1,752 0.69 0.0 0.75
Pull-Up 9.10 812.0 104.30 290.0 129 4.60 0.0 0.75
Locked-Rotor 9.14 816.0 110.60 307.0 0 4.52 0.0 0.75
Break-Down 5.50 491.0 148.80 413.0 1,314 3.90 0.0 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.62 0.68 0.79 0.94 1.12 1.32 1.54
Rated Output (KW) 0.08 0.23 0.38 0.53 0.69 0.86 1.04
Efficiency (%) 0.0 62.0 74.5 79.1 81.2 81.5 81.0
Power Factor (%) 17.0 42.1 59.4 70.5 77.3 81.8 84.6
Speed (RPM) 1,794 1,788 1,777 1,765 1,753 1,740 1,725
Temp. Rise @ FL 0.0 0.0 0.0 0.0 82.0 0.0 0.0
Torque (ft-lbs) 0.00 8.90 17.80 26.80 36.00 45.30 54.80
