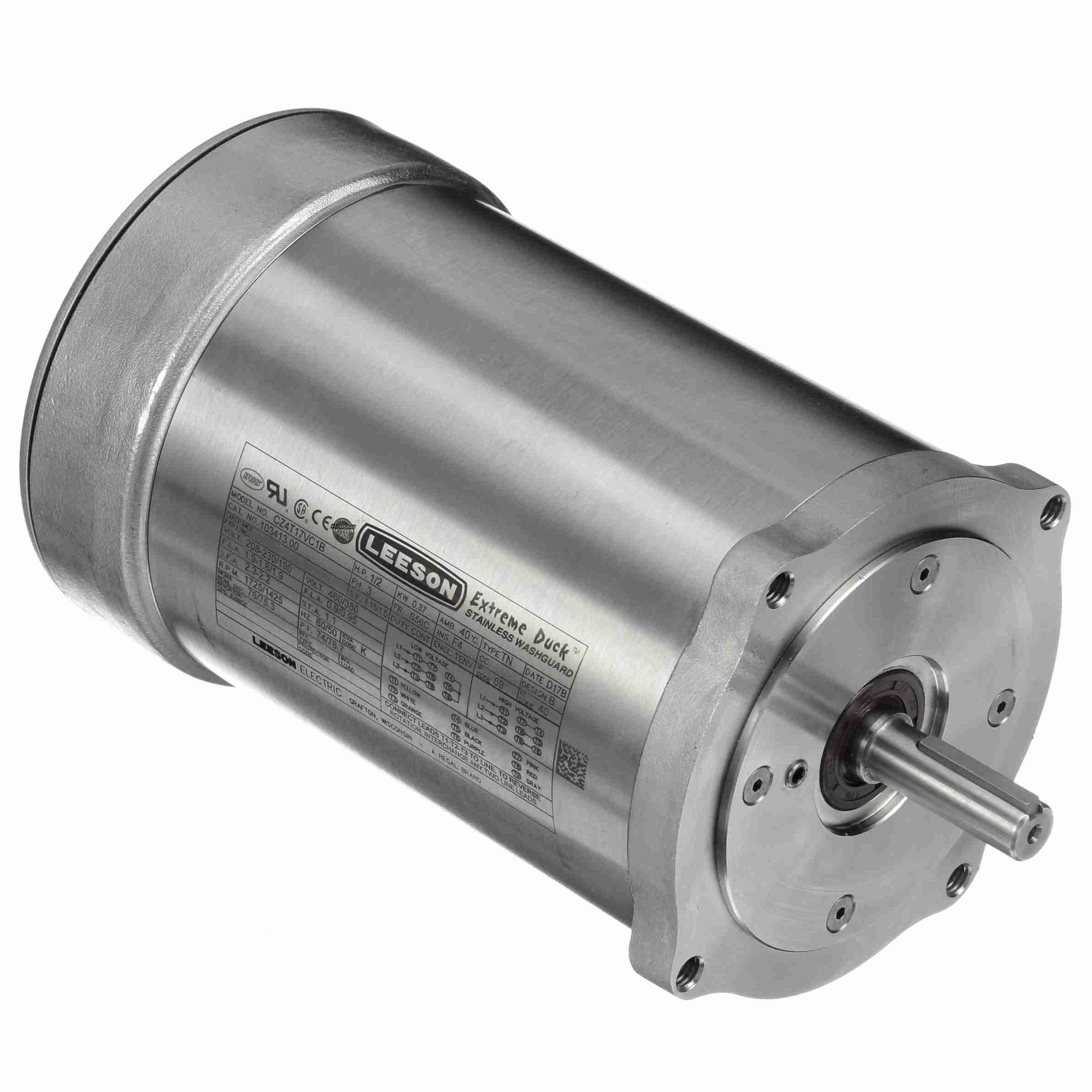

103413.00 Leeson 1/2HP Washdown Electric Motor, 1800RPM-1

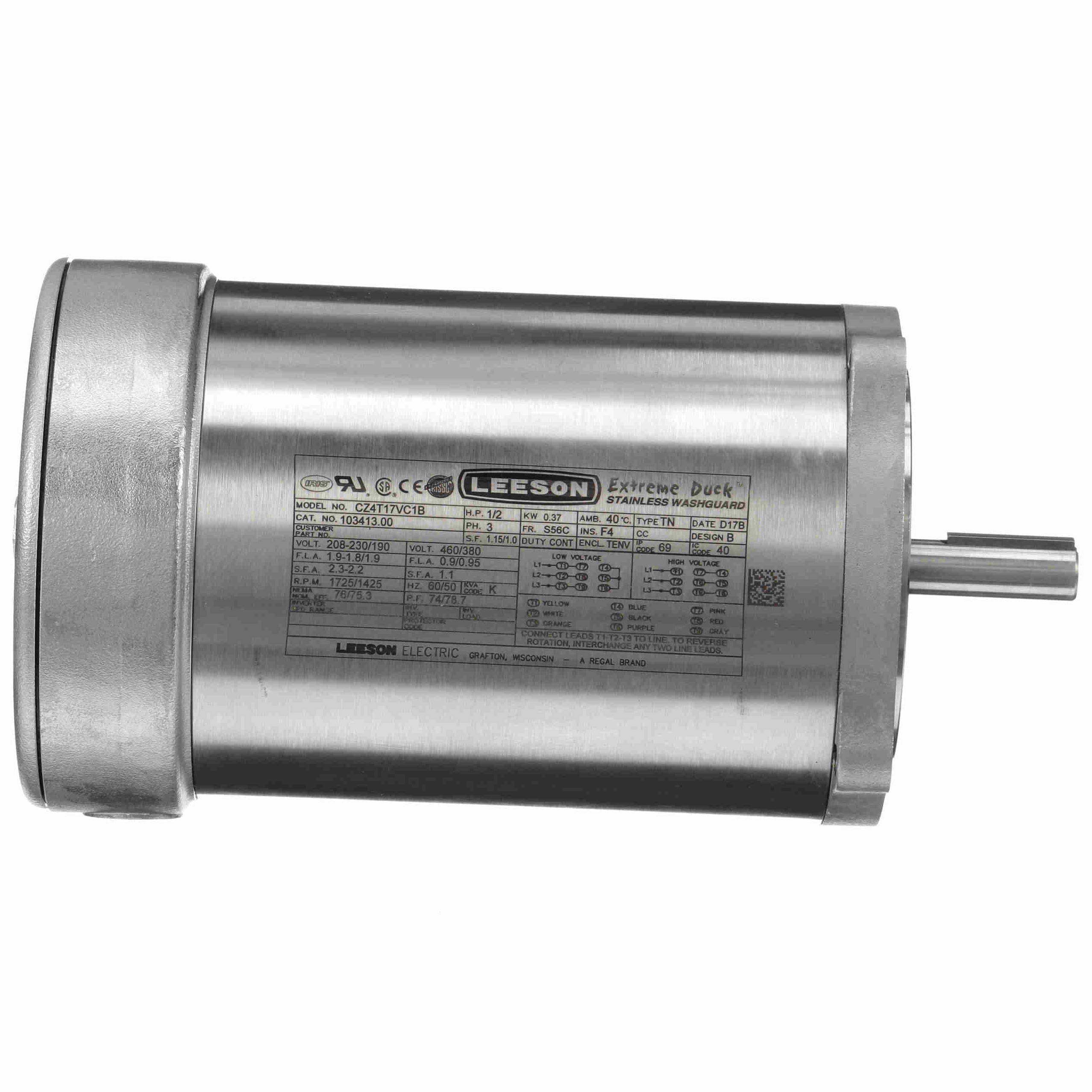

103413.00 Leeson 1/2HP Washdown Electric Motor, 1800RPM-2
103413.00 Leeson 1/2HP Washdown Electric Motor, 1800RPM-3
103413.00 Leeson 1/2HP Washdown Electric Motor, 1800RPM-4

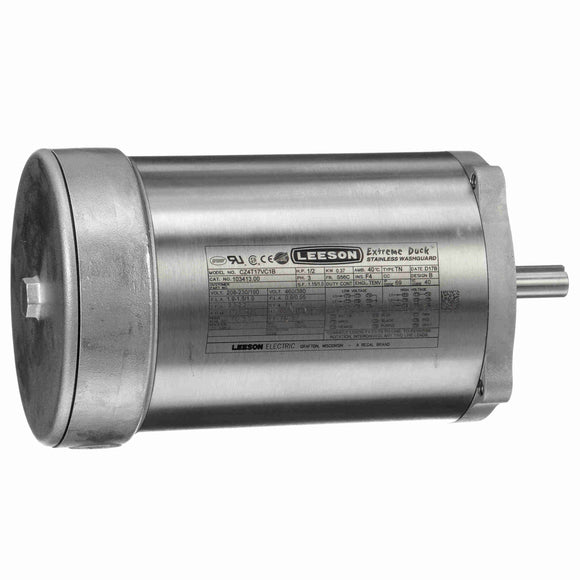

103413.00 Leeson 1/2HP Washdown Electric Motor, 1800RPM

$1,104.92 USD $2,700.00 USD Save $1,595.08 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 103413.00 Barcode: 691720000267

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • WASHGUARD efficiencies meet EPAct mandates for non-exempt motors when tested without shaft seals
  • LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
  • IP69K enclosure protection
  • Q-Car(TM) rotor cartridge for quick access; Color Coded Leads;Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720000267 Weight: 32.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 1.9-1.8/0.90 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 76 % Power Factor: 74
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: S56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6204 Opp Drive End Bearing Size: 6204
UL: Recognized CSA: Y
CE: Y IP Code: 69

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: NEMA 56 Overall Length: 11.49 in
Frame Length: 6.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 4.50 549.0 100.00 417.0 760 0.00 0.0 0.50
Full Load 0.82 100.0 24.00 100.0 1,725 0.00 0.0 0.50
Locked-Rotor 5.30 646.0 106.00 442.0 0 0.00 0.0 0.50
Pull-Up 5.00 610.0 83.00 346.0 200 0.00 0.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 0.50 0.55 0.62 0.70 0.82 0.89 0.94
Rated Output (KW) 0.08 0.16 0.27 0.38 0.48 0.55 0.60
Efficiency (%) 0.0 58.1 69.1 73.8 75.8 76.7 76.0
Power Factor (%) 18.3 37.4 55.4 67.0 74.4 77.2 79.3
Speed (RPM) 1,793 1,778 1,759 1,741 1,722 1,715 1,701
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 95.0 86.0
Torque (ft-lbs) 0.00 6.00 12.00 18.00 24.00 27.60 30.00
