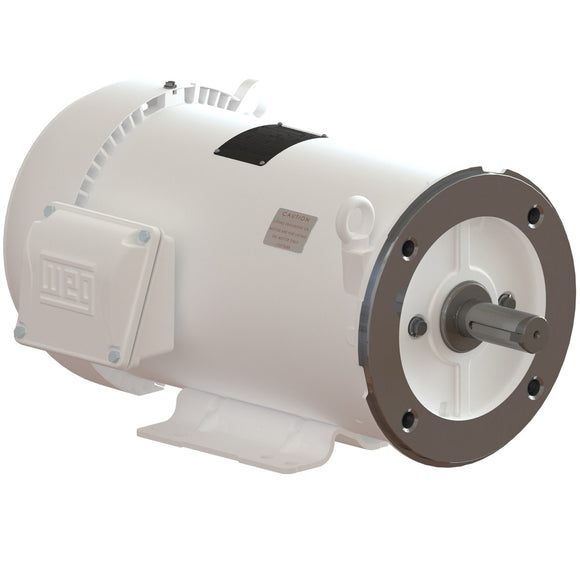

02036ET3EHW256TC-S WEG 20HP Hydrowash Electric Motor, 3600RPM-1
02036ET3EHW256TC-S WEG 20HP Hydrowash Electric Motor, 3600RPM-2

02036ET3EHW256TC-S WEG 20HP Hydrowash Electric Motor, 3600RPM

$4,675.32 $5,772.00 Save $1,096.68

Shipping calculated at checkout

Witmer Motor Service SKU: 02036ET3EHW256TC-S Barcode: 7909712006986

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 254/6TC
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 230/460 V
Rated current 45.4/22.7 A
L. R. Amperes 300/150 A
LRC 6.6x(Code G)
No load current 13.8/6.88 A
Rated torque 29.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 1.22 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 225 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.0  91.0  91.0

Power factor

50% 75% 100%
0.81  0.88  0.91
Frame 254/6TC
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2925 rpm
Slip 2.50 %
Rated voltage 190/380 V
Rated current 40.8/20.4 A
L. R. Amperes 302/151 A
LRC 7.4x(Code H)
No load current 13.6/6.79 A
Rated torque 26.9 ft.lb
Locked rotor torque 210 %
Breakdown torque 310 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.22 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 225 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.6  91.7  91.2

Power factor

50% 75% 100%
0.79  0.87  0.90
Frame 254/6TC
Output 15 HP (11 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 220/415 V
Rated current 36.8/19.5 A
L. R. Amperes 298/158 A
LRC 8.1x(Code J)
No load current 13.7/7.26 A
Rated torque 26.8 ft.lb
Locked rotor torque 240 %
Breakdown torque 340 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.22 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 225 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.5  92.0  91.4

Power factor

50% 75% 100%
0.75  0.85  0.89

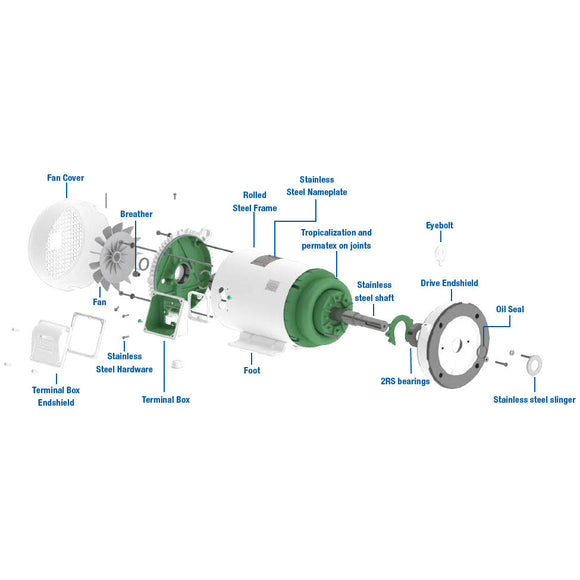

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1 1/4"
Terminal Block Without
Shaft Material AISI 304 Stainless Steel
Painting 04501 205E
Grounding Lugs Superior
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Stainless Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
