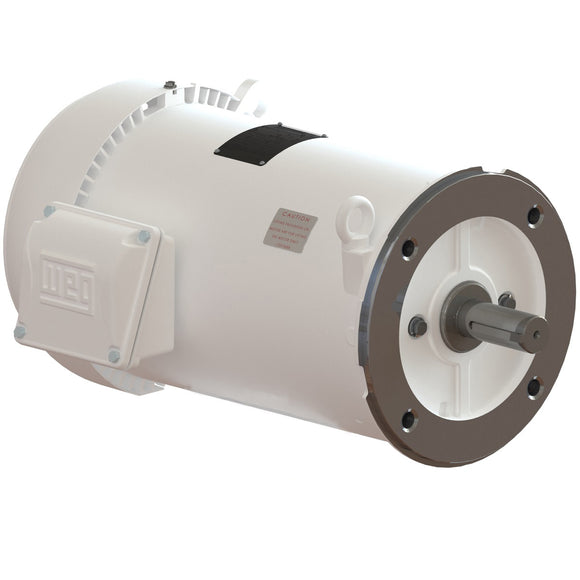

01536ET3EHWR215TC-S WEG 15HP Hydrowash Electric Motor, 3600RPM

$2,472.12 $3,052.00 Save $579.88

Shipping calculated at checkout

Witmer Motor Service SKU: 01536ET3EHWR215TC-S Barcode: 7909712021705

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 213/5TC
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 34.0/17.0 A
L. R. Amperes 279/139 A
LRC 8.2x(Code J)
No load current 12.4/6.22 A
Rated torque 22.4 ft.lb
Locked rotor torque 280 %
Breakdown torque 330 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.6341 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 167 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  91.0  91.0

Power factor

50% 75% 100%
0.76  0.85  0.89
Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 190/380 V
Rated current 28.8/14.4 A
L. R. Amperes 251/125 A
LRC 8.7x(Code K)
No load current 12.2/6.11 A
Rated torque 17.9 ft.lb
Locked rotor torque 320 %
Breakdown torque 370 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.6341 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 167 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.5  91.4  91.1

Power factor

50% 75% 100%
0.71  0.82  0.87
Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 220/415 V
Rated current 26.2/13.9 A
L. R. Amperes 244/129 A
LRC 9.3x(Code K)
No load current 12.8/6.77 A
Rated torque 17.9 ft.lb
Locked rotor torque 350 %
Breakdown torque 420 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.6341 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 167 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.1  91.3  91.3

Power factor

50% 75% 100%
0.66  0.78  0.85

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Material AISI 304 Stainless Steel
Painting 04501 205E
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Stainless Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
