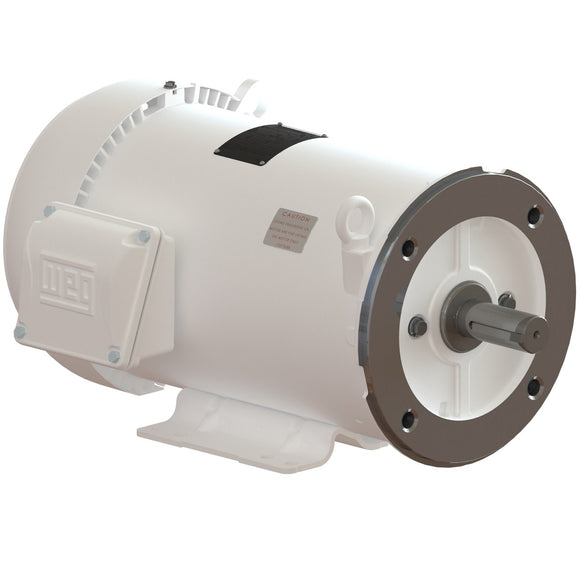

00712ET3EHW254TC-S WEG 8HP Hydrowash Electric Motor, 1200RPM-1
00712ET3EHW254TC-S WEG 8HP Hydrowash Electric Motor, 1200RPM-2

00712ET3EHW254TC-S WEG 8HP Hydrowash Electric Motor, 1200RPM

$3,073.95 $3,795.00 Save $721.05

Shipping calculated at checkout

Witmer Motor Service SKU: 00712ET3EHW254TC-S Barcode: 7909712007082

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 20.0/9.98 A
L. R. Amperes 108/53.9 A
LRC 5.4x(Code G)
No load current 10.1/5.03 A
Rated torque 33.5 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 75s (cold) 42s (hot)
Moment of inertia (J) 2.34 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 217 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  89.5  91.0

Power factor

50% 75% 100%
0.58  0.70  0.76
Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 190/380 V
Rated current 24.0/12.0 A
L. R. Amperes 101/50.4 A
LRC 4.2x(Code D)
No load current 9.92/4.96 A
Rated torque 40.8 ft.lb
Locked rotor torque 150 %
Breakdown torque 180 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.34 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 217 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.9  89.5  88.0

Power factor

50% 75% 100%
0.65  0.75  0.79
Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 220/415 V
Rated current 21.7/11.5 A
L. R. Amperes 102/54.1 A
LRC 4.7x(Code E)
No load current 10.1/5.35 A
Rated torque 40.6 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.34 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 217 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.6  89.8  88.5

Power factor

50% 75% 100%
0.61  0.72  0.78

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1 1/4"
Terminal Block Without
Shaft Material AISI 304 Stainless Steel
Painting 04501 205E
Grounding Lugs Superior
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Stainless Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
