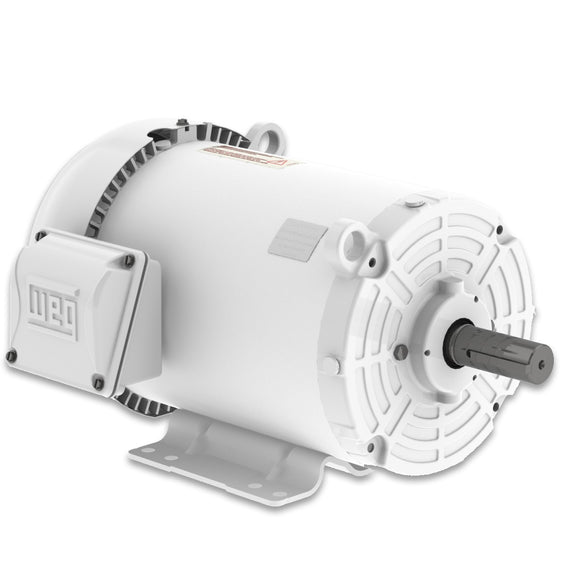

00512ET3EHW215TC-S WEG 5HP Hydrowash Electric Motor, 1200RPM

$1,769.85 $2,185.00 Save $415.15

Shipping calculated at checkout

Witmer Motor Service SKU: 00512ET3EHW215TC-S Barcode: 7909712018750

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 213/5TC
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 13.5/6.74 A
L. R. Amperes 80.9/40.4 A
LRC 6.0x(Code H)
No load current 6.84/3.42 A
Rated torque 22.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.26 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 148 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  89.5

Power factor

50% 75% 100%
0.59  0.71  0.77
Frame 213/5TC
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 190/380 V
Rated current 16.3/8.13 A
L. R. Amperes 74.8/37.4 A
LRC 4.6x(Code E)
No load current 6.75/3.38 A
Rated torque 27.4 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.26 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 148 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.8  87.4  85.4

Power factor

50% 75% 100%
0.66  0.77  0.81
Frame 213/5TC
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 220/415 V
Rated current 14.6/7.74 A
L. R. Amperes 75.9/40.2 A
LRC 5.2x(Code F)
No load current 6.86/3.64 A
Rated torque 27.2 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.26 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 148 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.6  87.8  86.3

Power factor

50% 75% 100%
0.62  0.74  0.80

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Material AISI 304 Stainless Steel
Painting 04501 205E
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Stainless Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
