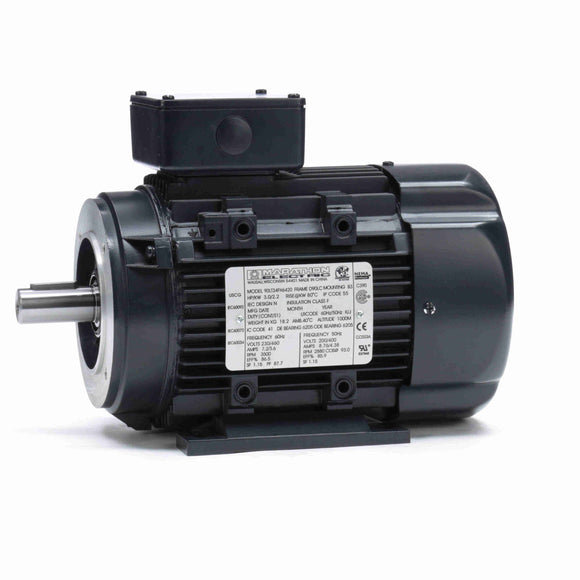

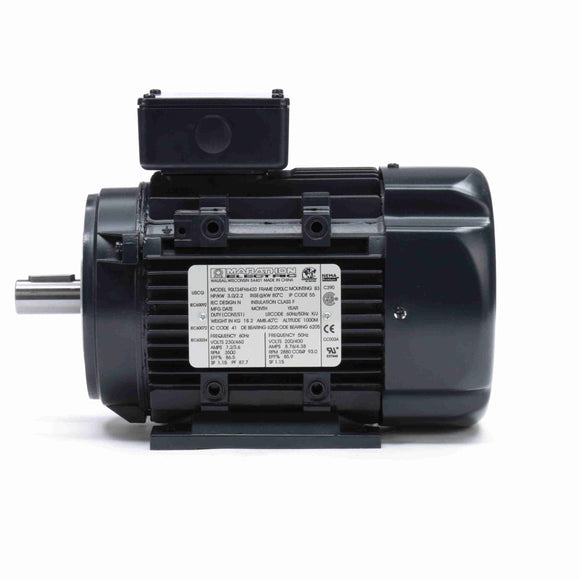

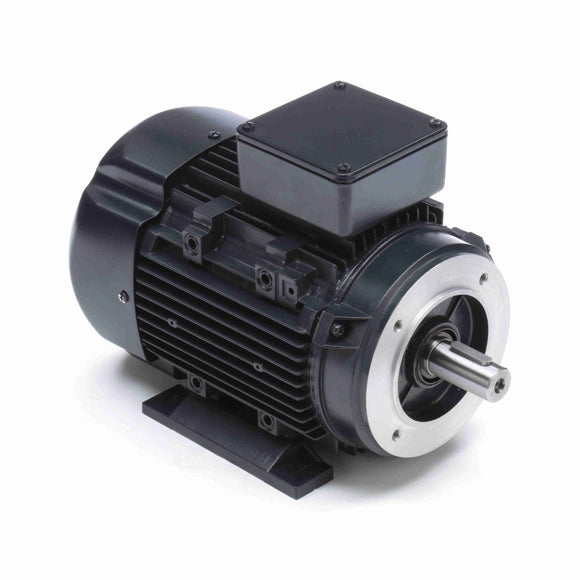

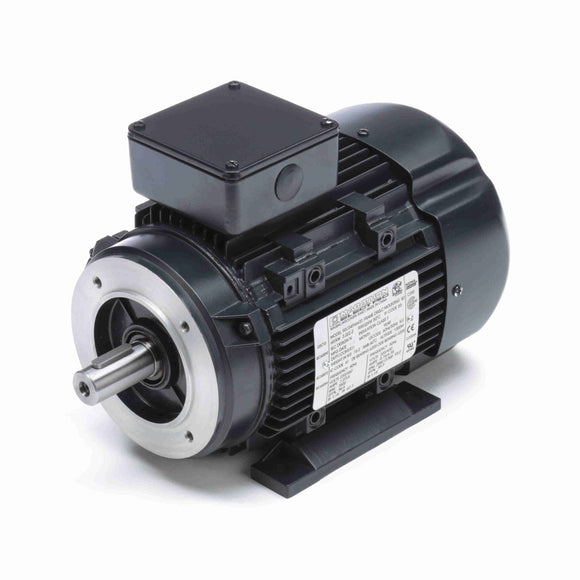

Features
- Meets IE3 European and NEMA Premium® efficiencies
- MAX GUARD® Class F Insulation, Class B rise @ rated KW
- Wye Start-Delta Run on 160 Frame and larger
- 10:1 Variable Torque, Constant Torque speed range as noted
- Top Mounted/Oversized gasketed terminal box
General Specifications
| UPC: | 722856027214 | Weight: | 41.00 LB |
| Packaged Length: | 14.76 IN | Packaged Width: | 9.65 IN |
| Packaged Height: | 10.63 IN |
Nameplate Specifications
| Output HP: | 3 Hp | Output KW: | 2.2 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 7.2/3.6 A | Speed: | 3500 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 87.5 % | Power Factor: | 87.5 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | K |
| Frame: | 90L | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 55 |
Technical Specifications
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 0 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Aluminum |
| Shaft Type: | IEC | Overall Length: | 12.83 in |
| Frame Length: | 7.08 in | Shaft Diameter: | 1.000 in |
| Shaft Extension: | 1.96 in | Assembly/Box Mounting: | F3 |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 3.60 | 100.0 | 4.50 | 100.0 | 3,503 | 2.55 | 88.8 | 3.00 |
| Pull-Up | 31.50 | 875.0 | 11.72 | 260.0 | 557 | 16.80 | 66.9 | 3.00 |
| Locked-Rotor | 32.40 | 900.0 | 13.24 | 294.0 | 3 | 16.90 | 65.5 | 3.00 |
| Break-Down | 20.40 | 567.0 | 16.45 | 366.0 | 2,671 | 13.20 | 81.5 | 3.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 1.40 | 1.60 | 2.20 | 2.90 | 3.60 | 4.50 | 5.50 |
| Rated Output (KW) | 0.11 | 0.69 | 1.28 | 1.90 | 2.55 | 3.23 | 3.95 |
| Efficiency (%) | 0.0 | 81.4 | 87.6 | 88.4 | 87.9 | 86.6 | 84.9 |
| Power Factor (%) | 10.1 | 53.8 | 73.0 | 82.2 | 88.8 | 90.1 | 90.1 |
| Speed (RPM) | 3,597 | 3,576 | 3,554 | 3,528 | 3,503 | 3,473 | 3,439 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 36.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 1.10 | 2.22 | 3.35 | 4.50 | 5.67 | 6.86 |
