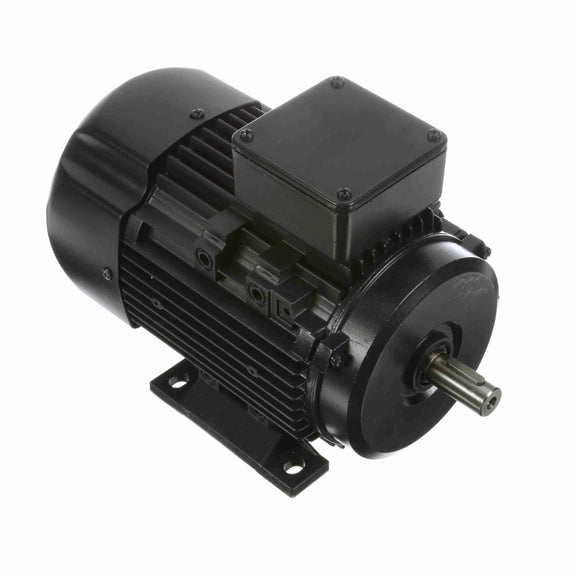

Features
- Aluminum (63-90 frame) or Cast Iron (100-250 frame) construction
- Nameplated 60/50 hertz at same HP (except as noted )
- Max Guard® Class F Insulation, Class B rise @ rated KW
- IP55 weatherproof enclosure
- Rotatable/Removable Base (63-90 frame)
- Wye Start-Delta Run on 160 Frame and larger
- Meets IEC 34 electrical standards; Meets IEC 72 dimensions and tolerances
- Top Mounted/Oversized gasketed terminal box
- Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty (63-90 frame “Below Deck”)
General Specifications
UPC: | 722856054333 | Weight: | 48.00 LB |
Packaged Length: | 14.17 IN | Packaged Width: | 9.65 IN |
Packaged Height: | 10.24 IN |
Nameplate Specifications
Output HP: | 1 Hp | Output KW: | 0.75 kW |
Frequency: | 60 Hz | Voltage: | 230/460 V |
Current: | 3.0/1.5 A | Speed: | 1740 rpm |
Service Factor: | 1.15 | Phase: | 3 |
Efficiency: | 85.5 % | Power Factor: | 72 |
Duty: | Continuous | Insulation Class: | F |
Design Code: | NO DESIGN CODE | KVA Code: | J |
Frame: | 80 | Enclosure: | Totally Enclosed Fan Cooled |
Thermal Protection: | No | Ambient Temperature: | 40 °C |
Drive End Bearing Size: | 6204 | Opp Drive End Bearing Size: | 6204 |
UL: | Recognized | CSA: | Y |
CE: | Y | IP Code: | 55 |
Technical Specifications
Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
Poles: | 4 | Rotation: | Reversible |
Resistance Main: | 0 Ohms | Mounting: | Rigid Base |
Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
Opp Drive End Bearing: | Ball | Frame Material: | Aluminum |
Shaft Type: | IEC | Overall Length: | 11.88 in |
Frame Length: | 6.10 in | Shaft Diameter: | 0.750 in |
Shaft Extension: | 1.57 in | Assembly/Box Mounting: | F3 |
Speed & Load Characteristics
Speed Characteristics
Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
Locked-Rotor | 9.90 | 660.0 | 8.50 | 283.0 | 0 | 0.00 | 0.0 | 1.00 |
Full Load | 1.50 | 100.0 | 3.00 | 100.0 | 1,740 | 0.00 | 0.0 | 1.00 |
No Load | 0.92 | 61.0 | 0.00 | 0.0 | 0 | 0.00 | 0.0 | 1.00 |
Break-Down | 0.00 | 0.0 | 10.00 | 333.0 | 0 | 0.00 | 0.0 | 1.00 |
