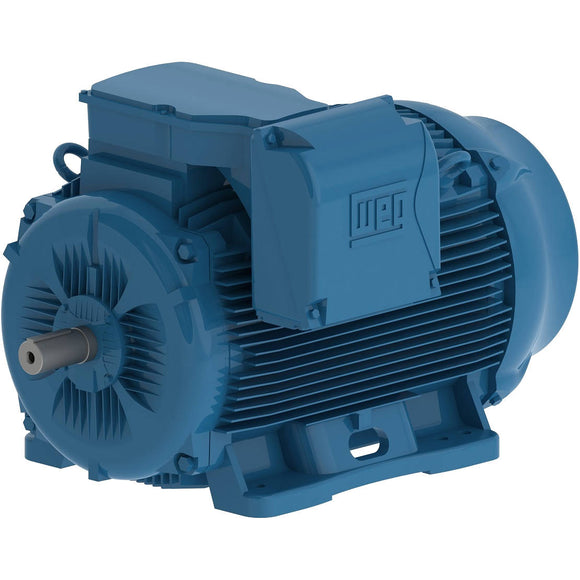

Electric Motors
| Frame | 355M/L |
|---|---|
| Output | 350 HP (260 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1193 rpm |
| Slip | 0.58 % |
| Rated voltage | 460 V |
| Rated current | 437 A |
| L. R. Amperes | 2316 A |
| LRC | 5.3 |
| No load current | 165 A |
| Rated torque | 1540 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 220 % |
| Locked rotor time | 131s (cold) 73s (hot) |
| Moment of inertia (J) | 356 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 77.0 dB(A) |
| Approx. weight³ | 4344 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 95.1 | 95.4 | 95.8 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.61 | 0.73 | 0.78 |
| Frame | 355M/L |
|---|---|
| Output | 350 HP (260 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 990 rpm |
| Slip | 1.00 % |
| Rated voltage | 380 V |
| Rated current | 501 A |
| L. R. Amperes | 2255 A |
| LRC | 4.5 |
| No load current | 160 A |
| Rated torque | 1860 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 180 % |
| Locked rotor time | 117s (cold) 65s (hot) |
| Moment of inertia (J) | 356 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 4344 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 95.7 | 96.1 | 96.2 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.68 | 0.78 | 0.82 |
| Frame | 355M/L |
|---|---|
| Output | 350 HP (260 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 992 rpm |
| Slip | 0.80 % |
| Rated voltage | 400 V |
| Rated current | 487 A |
| L. R. Amperes | 2338 A |
| LRC | 4.8 |
| No load current | 170 A |
| Rated torque | 1850 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 200 % |
| Locked rotor time | 111s (cold) 62s (hot) |
| Moment of inertia (J) | 356 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 4344 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 95.5 | 96.1 | 96.3 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.64 | 0.75 | 0.80 |
| Frame | 355M/L |
|---|---|
| Output | 350 HP (260 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 993 rpm |
| Slip | 0.70 % |
| Rated voltage | 415 V |
| Rated current | 475 A |
| L. R. Amperes | 2470 A |
| LRC | 5.2 |
| No load current | 180 A |
| Rated torque | 1850 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 210 % |
| Locked rotor time | 106s (cold) 59s (hot) |
| Moment of inertia (J) | 356 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 73.0 dB(A) |
| Approx. weight³ | 4344 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 95.3 | 96.0 | 96.3 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.61 | 0.73 | 0.79 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | 2xM63x1,5 |
| Terminal Block | BMC - 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Aluminum |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
