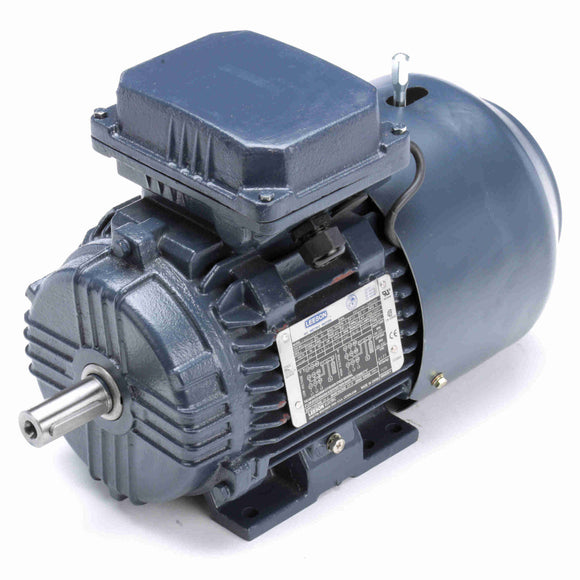

194223.00 Leeson 1.5HP/1.1kW IEC Metric AC Brakemotor, 1800RPM-1

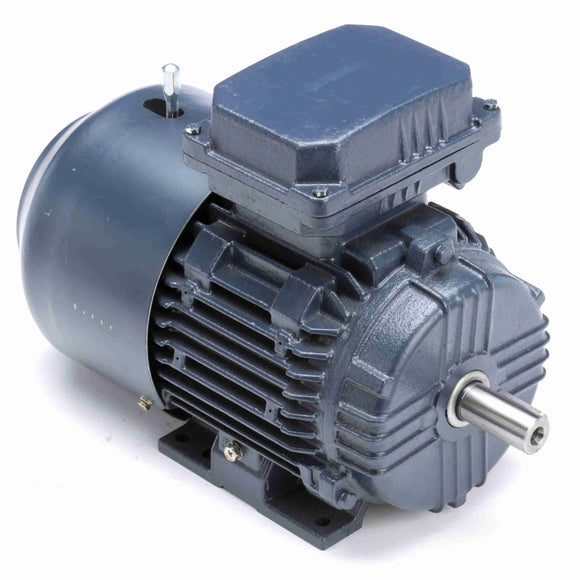

194223.00 Leeson 1.5HP/1.1kW IEC Metric AC Brakemotor, 1800RPM-2

194223.00 Leeson 1.5HP/1.1kW IEC Metric AC Brakemotor, 1800RPM

$1,449.97 USD $2,710.00 USD Save $1,260.03 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 194223.00 Barcode: 691720992180

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Cast iron construction
  • 60/50 Hz interchangeability
  • 230 volt brake coil
  • IP55 enclosure
  • B3 mounting
  • B5 & B14 flange kits available
  • UL listed and CSA certified

General Specifications

UPC: 691720992180 Weight: 81.00 LB
Packaged Length: 14.96 IN Packaged Width: 12.8 IN
Packaged Height: 9.8 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 4.2/2.1 A Speed: 1745 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 77
Duty: Continuous Insulation Class: F
Design Code: No Design Code KVA Code: K
Frame: 90S Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: B3
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: IEC Overall Length: 15.47 in
Frame Length: 6.02 in Shaft Diameter: 1.000 in
Shaft Extension: 1.96 in Assembly/Box Mounting: F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 15.00 333.0 0 0.00 0.0 1.50
Full Load 2.00 100.0 4.50 100.0 1,747 0.00 0.0 1.50
Locked-Rotor 14.80 740.0 11.30 251.0 0 0.00 0.0 1.50
No Load 1.00 50.0 0.00 0.0 1,798 0.00 0.0 1.50
