192213.00 Leeson 2HP IEC Metric Electric Motor, 3600RPM-1
192213.00 Leeson 2HP IEC Metric Electric Motor, 3600RPM-2

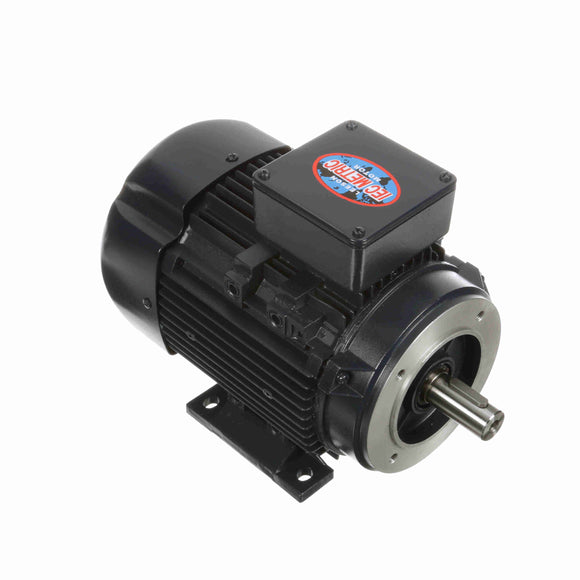

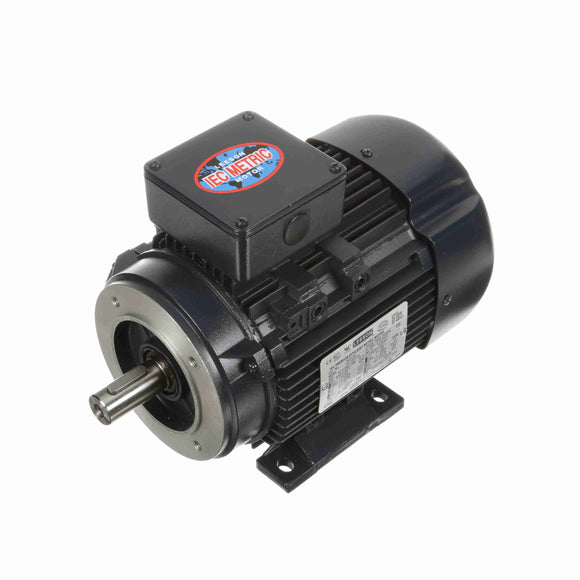

192213.00 Leeson 2HP IEC Metric Electric Motor, 3600RPM

$1,245.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 192213.00 Barcode: 691720246993

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • Aluminum frame construction
  • 60/50 Hz interchangeability
  • B3, B5, B14 mounting flanges
  • Inverter rated (IRIS™) insulation system on AC models
  • 1-year warranty AC standard efficiency models
  • UL listed and CSA certified
General Specifications
Model : C90T34FZ17A Catalog No : 192213.00
Part Description : 2HP-1.5kW..3470RPM.90S.IP55.230/460V.3PH.60HZ.CONT.40C.1.15SF.B3/B14......IEC METRIC........ Category : TEFC
Stock : No
Nameplate Specifications
Output HP : 2 Hp Output KW : 1.5 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 5.0/2.5 A Speed : 3520 rpm
Service Factor : 1.15 Phase : 3
Efficiency : 85.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : L Frame : 90S
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : Y
IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Line Or Inverter
Poles : 2 Rotation : Reversible
Mounting : B3 Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Aluminum Shaft Type : IEC
Overall Length : 12.83 in Frame Length : 6.33 in
Shaft Diameter : 1.000 in Shaft Extension : 1.96 in
Assembly/Box Mounting : F1 ONLY UPC : 691720246993
Weight : 36.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 16.10 644.0 13.28 446.0 2,786 10.50 81.4 2.00
Locked-Rotor 25.00 1,000.0 9.16 307.0 0 13.10 65.6 2.00
Full Load 2.50 100.0 2.98 100.0 3,523 1.70 85.5 2.00
Pull-Up 24.50 980.0 7.83 263.0 386 13.20 67.5 2.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.20
  • 0.104
  • 0.0
  • 10.9
  • 3,597
  • 0.0
  • 0.00
  • 25 %
  • 1.30
  • 0.485
  • 73.4
  • 46.8
  • 3,580
  • 0.0
  • 0.70
  • 50 %
  • 1.60
  • 0.877
  • 86.6
  • 68.8
  • 3,563
  • 0.0
  • 1.50
  • 75 %
  • 2.00
  • 1.282
  • 86.4
  • 80.5
  • 3,544
  • 0.0
  • 2.20
  • 100 %
  • 2.50
  • 1.702
  • 88.2
  • 85.5
  • 3,523
  • 21.6
  • 3.00
  • 125 %
  • 3.00
  • 2.139
  • 88.3
  • 89.5
  • 3,500
  • 0.0
  • 3.80
  • 150 %
  • 3.60
  • 2.595
  • 85.6
  • 90.5
  • 3,476
  • 0.0
  • 4.50
