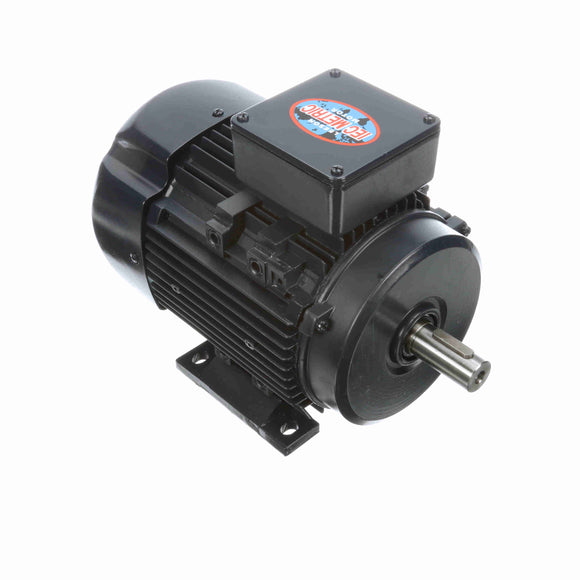

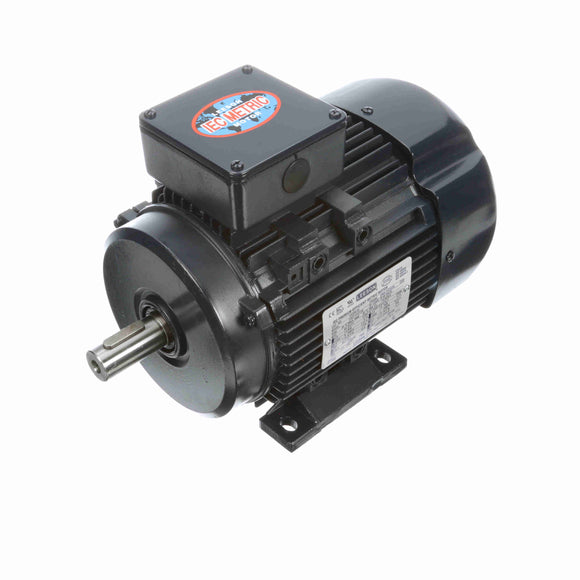

Features
- Aluminum frame construction
- 60/50 Hz interchangeability
- B3, B5, B14 mounting flanges
- Inverter rated (IRIS™) insulation system on AC models
- UL listed and CSA certified
General Specifications
UPC: | 691720246870 | Weight: | 36.00 LB |
Packaged Length: | 14.76 IN | Packaged Width: | 9.65 IN |
Packaged Height: | 10.63 IN |
Nameplate Specifications
Output HP: | 1 Hp | Output KW: | 0.75 kW |
Frequency: | 60 Hz | Voltage: | 230/460 V |
Current: | 3.2/1.6 A | Speed: | 1155 rpm |
Service Factor: | 1.15 | Phase: | 3 |
Efficiency: | 82.5 % | Power Factor: | 69.5 |
Duty: | Continuous | Insulation Class: | F |
Design Code: | B | KVA Code: | K |
Frame: | D90S | Enclosure: | Totally Enclosed Fan Cooled |
Thermal Protection: | No | Ambient Temperature: | 40 °C |
Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6205 |
UL: | Recognized | CSA: | Y |
CE: | Y | IP Code: | 55 |
Technical Specifications
Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Line Or Inverter |
Poles: | 6 | Rotation: | Reversible |
Resistance Main: | 0 Ohms | Mounting: | B3 |
Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
Opp Drive End Bearing: | Ball | Frame Material: | Aluminum |
Shaft Type: | IEC | Overall Length: | 12.83 in |
Frame Length: | 6.33 in | Shaft Diameter: | 1.000 in |
Shaft Extension: | 1.96 in | Assembly/Box Mounting: | F3 |
Speed & Load Characteristics
Speed Characteristics
Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
Pull-Up | 10.00 | 625.0 | 8.45 | 186.0 | 193 | 4.30 | 54.5 | 1.00 |
Locked-Rotor | 10.20 | 638.0 | 10.71 | 236.0 | 4 | 4.30 | 53.1 | 1.00 |
Break-Down | 6.50 | 406.0 | 15.70 | 346.0 | 907 | 3.50 | 67.2 | 1.00 |
Full Load | 1.60 | 100.0 | 4.54 | 100.0 | 1,156 | 0.90 | 70.7 | 1.00 |
Load Characteristics
% of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
Current (Amps) | 1.10 | 1.10 | 1.30 | 1.40 | 1.60 | 1.90 | 2.20 |
Rated Output (KW) | 0.08 | 0.28 | 0.48 | 0.68 | 0.90 | 1.13 | 1.38 |
Efficiency (%) | 10.1 | 67.5 | 78.6 | 81.9 | 82.8 | 82.3 | 81.0 |
Power Factor (%) | 9.6 | 31.5 | 45.9 | 61.1 | 70.7 | 74.7 | 78.7 |
Speed (RPM) | 1,198 | 1,189 | 1,179 | 1,168 | 1,156 | 1,144 | 1,128 |
Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 24.3 | 0.0 | 0.0 |
Torque (ft-lbs) | 0.05 | 1.10 | 2.23 | 3.37 | 4.54 | 5.73 | 6.98 |
