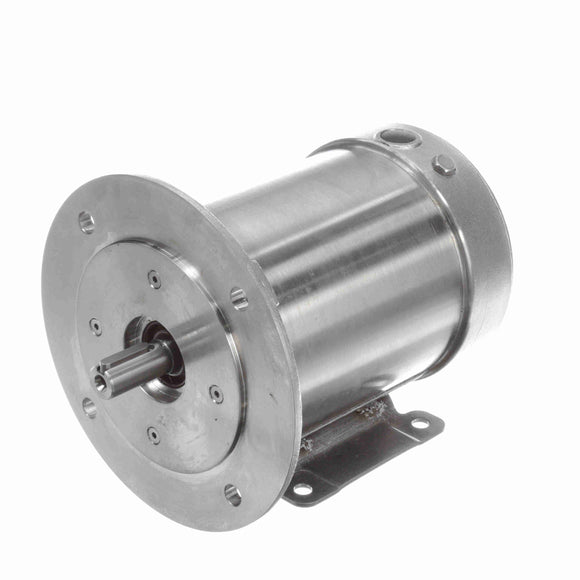

103408.00 Leeson 0.33HP/0.25kW IEC Metric Washguard Electric Motor, 1800RPM-1

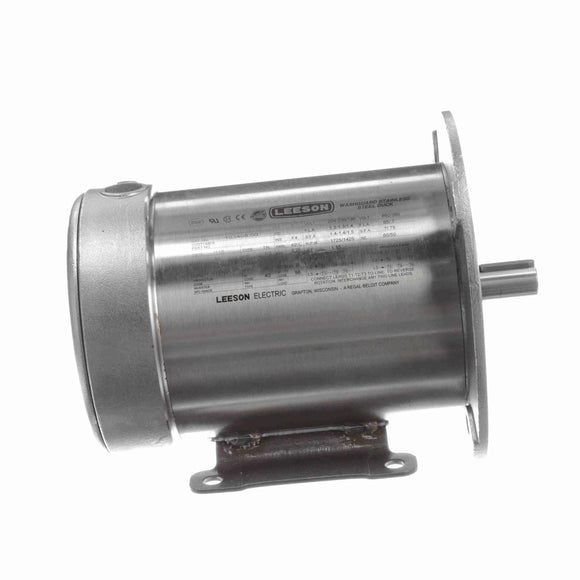

103408.00 Leeson 0.33HP/0.25kW IEC Metric Washguard Electric Motor, 1800RPM-2

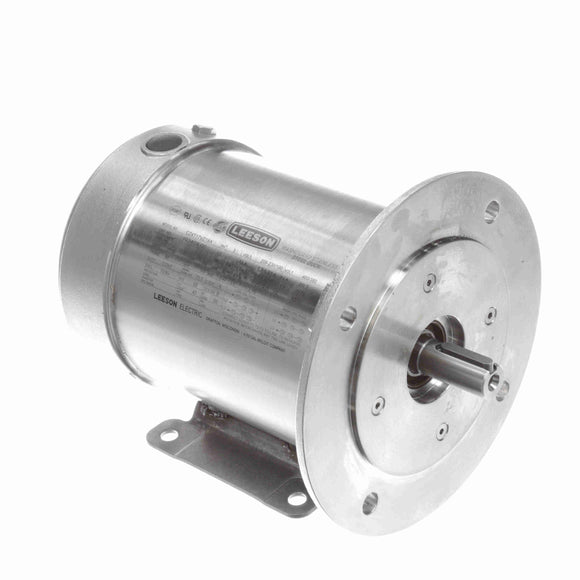

103408.00 Leeson 0.33HP/0.25kW IEC Metric Washguard Electric Motor, 1800RPM-3

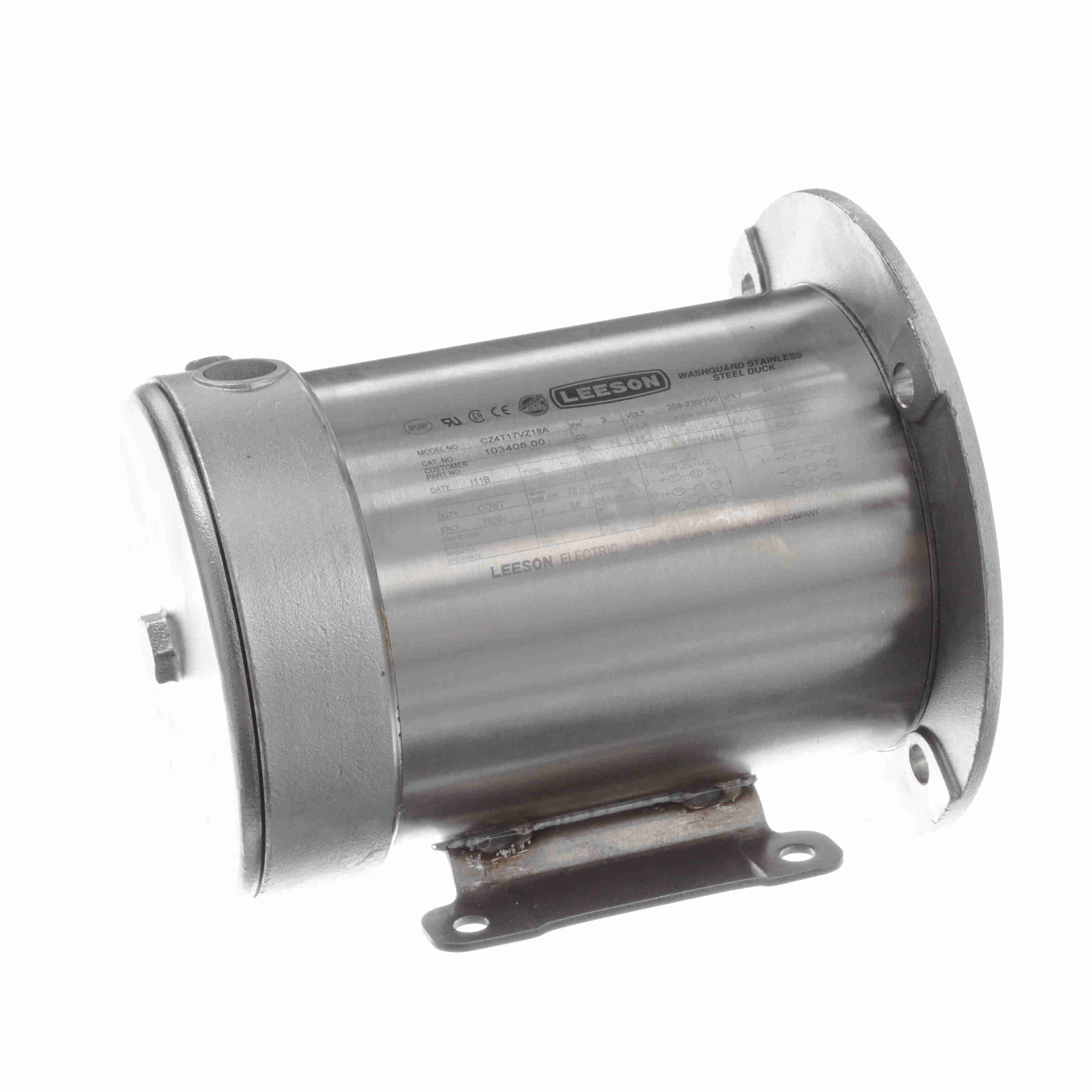

103408.00 Leeson 0.33HP/0.25kW IEC Metric Washguard Electric Motor, 1800RPM-4

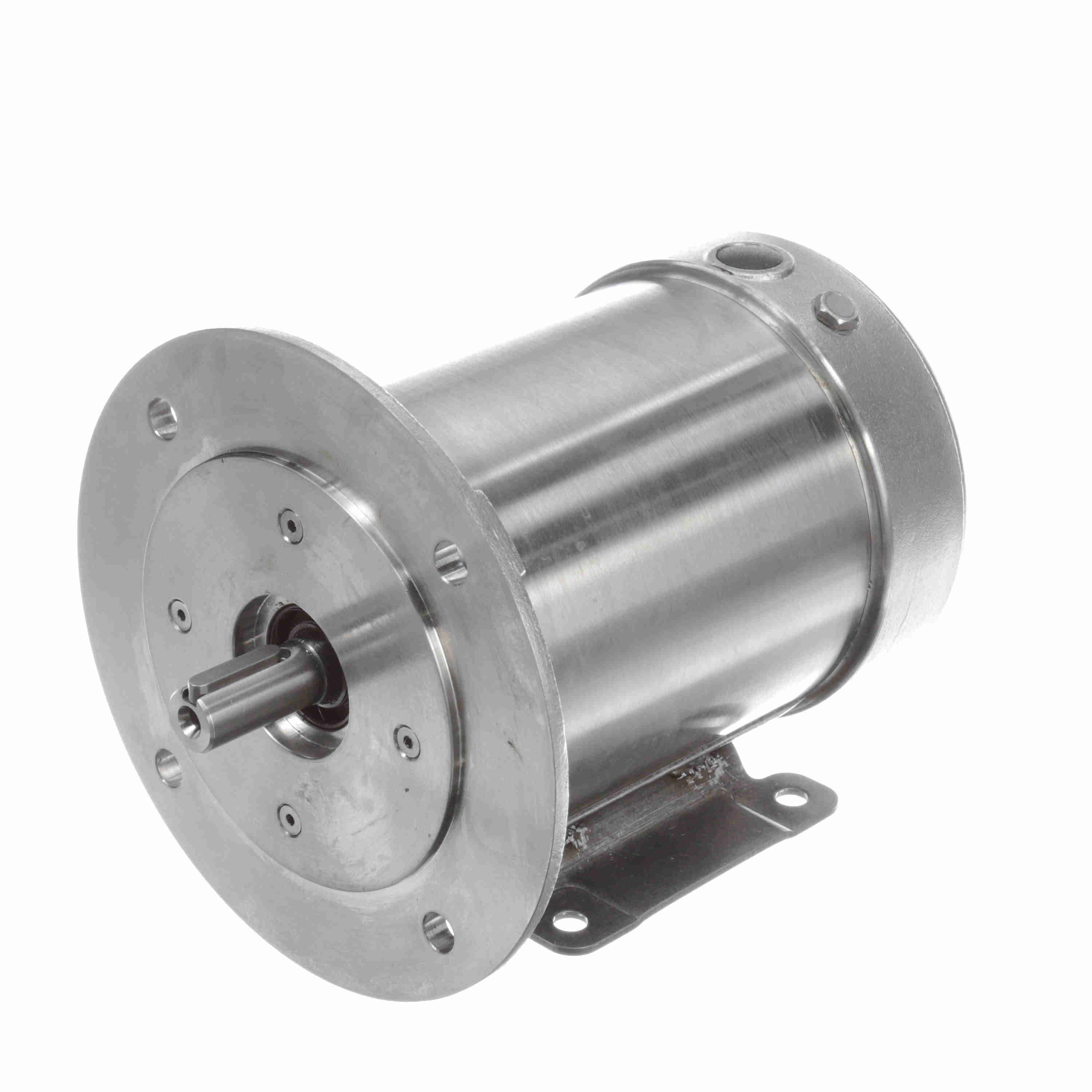

103408.00 Leeson 0.33HP/0.25kW IEC Metric Washguard Electric Motor, 1800RPM

$2,481.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 103408.00 Barcode: 691720211731

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • All exterior components are 300-series stainless steel
  • All sealing components are Viton® for superior chemical resistance
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • All Washdown Duty motors have Class F Insulation
  • Ease to clean construction is BISSC Certified for bakery applications
  • Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720211731 Weight: 30.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 1.3-1.3/0.65 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 70.5 % Power Factor: 68
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 80 Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6204 Opp Drive End Bearing Size: 6204
UL: Recognized CSA: Y
CE: Y IP Code: 56

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 11 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Stainless Steel
Shaft Type: IEC Overall Length: 9.50 in
Frame Length: 5.50 in Shaft Diameter: 0.750 in
Shaft Extension: 1.57 in Assembly/Box Mounting: F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 8.80 677.0 69.60 435.0 0 0.00 0.0 0.33
Break-Down 0.00 0.0 79.60 498.0 0 0.00 0.0 0.33
Pull-Up 0.00 0.0 68.70 429.0 0 0.00 0.0 0.33
Full Load 1.30 100.0 16.00 100.0 1,742 0.00 0.0 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.47 0.49 0.52 0.56 0.61 0.68 0.74
Rated Output (KW) 0.07 0.13 0.19 0.26 0.33 0.40 0.46
Efficiency (%) 0.0 50.7 65.9 71.7 74.8 76.5 78.7
Power Factor (%) 19.0 32.3 46.6 59.0 68.1 74.6 78.7
Speed (RPM) 1,795 1,784 1,771 1,757 1,742 1,728 1,714
Temp. Rise @ FL 0.0 0.0 0.0 0.0 50.0 0.0 0.0
Torque (ft-lbs) 0.00 4.00 8.00 12.00 16.00 20.00 24.00
