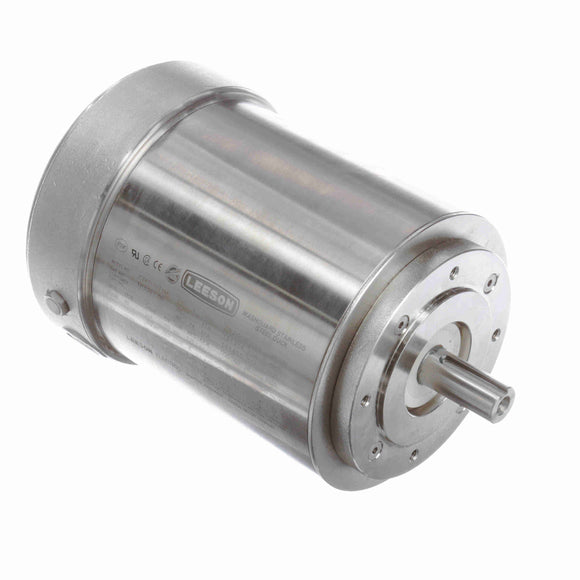

103397.00 Leeson 0.33HP / 0.25kW IEC Metric Washguard Electric Motor, 1800RPM

$2,353.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 103397.00 Barcode: 691720989418

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • All exterior components are 300-series stainless steel
  • All sealing components are Viton® for superior chemical resistance
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • All Washdown Duty motors have Class F Insulation
  • Ease to clean construction is BISSC Certified for bakery applications
  • Full fact nameplate is laser etched on the motor frame

General Specifications

General Specifications
Model : CZ4T17VZ14A Catalog No : 103397.00
Part Description : 1/3HP..25KW.1800RPM.IEC80.TENV.230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.B14.Stainless Washdown. Category : Washguard
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.33 HP Output KW : 0.25 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 1.3-1.3/0.65 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 72 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : K Frame : 80
Enclosure : Totally Enclosed Non Ventilated Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6204
Opp Drive End Bearing Size : 6204 UL : Recognized
CSA : Y CE : Y
IP Code : 56

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Stainless Steel Shaft Type : IEC
Overall Length : 9.72 in Frame Length : 5.50 in
Shaft Diameter : 0.750 in Shaft Extension : 1.57 in
Assembly/Box Mounting : F1 ONLY UPC : 691720989418
Weight : 30.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 8.80 677.0 69.60 435.0 0 0.00 0.0 0.33
Break-Down 0.00 0.0 79.60 498.0 0 0.00 0.0 0.33
Pull-Up 0.00 0.0 68.70 429.0 0 0.00 0.0 0.33
Full Load 1.30 100.0 16.00 100.0 1,742 0.00 0.0 0.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.47
  • 0.071
  • 0.0
  • 19.0
  • 1,795
  • 0.0
  • 0.00
  • 25 %
  • 0.49
  • 0.125
  • 50.7
  • 32.3
  • 1,784
  • 0.0
  • 4.00
  • 50 %
  • 0.52
  • 0.191
  • 65.9
  • 46.6
  • 1,771
  • 0.0
  • 8.00
  • 75 %
  • 0.56
  • 0.261
  • 71.7
  • 59.0
  • 1,757
  • 0.0
  • 12.00
  • 100 %
  • 0.61
  • 0.331
  • 74.8
  • 68.1
  • 1,742
  • 50.0
  • 16.00
  • 125 %
  • 0.68
  • 0.401
  • 76.5
  • 74.6
  • 1,728
  • 0.0
  • 20.00
  • 150 %
  • 0.74
  • 0.464
  • 78.7
  • 78.7
  • 1,714
  • 0.0
  • 24.00
