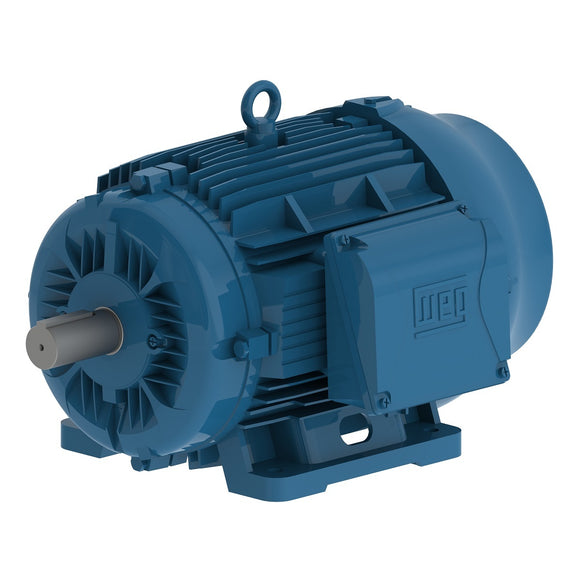

02236ET3Y180M-W22 WEG 30HP/22kW IEC TRU-Metric Electric Motor, 3600RPM

$3,492.00

Shipping calculated at checkout

WEG Electric Corporation SKU: 02236ET3Y180M-W22 Barcode: 7891327437647

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 30 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Electric Motors

Frame 180M
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 40.7 A
L. R. Amperes 326 A
LRC 8.0
No load current 12.2 A
Rated torque 52.7 ft.lb
Locked rotor torque 220 %
Breakdown torque 290 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 2.83 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 406 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.7  93.2  93.4

Power factor

50% 75% 100%
0.77  0.84  0.88
Frame 180M
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 39.0 A
L. R. Amperes 312 A
LRC 8.0
No load current 13.2 A
Rated torque 52.6 ft.lb
Locked rotor torque 250 %
Breakdown torque 330 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 2.83 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 406 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.5  93.3  93.7

Power factor

50% 75% 100%
0.73  0.82  0.87
Frame 180M
Output 30 HP (22 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 37.9 A
L. R. Amperes 303 A
LRC 8.0
No load current 14.0 A
Rated torque 52.5 ft.lb
Locked rotor torque 270 %
Breakdown torque 360 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 2.83 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 406 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.3  93.3  93.8

Power factor

50% 75% 100%
0.70  0.80  0.86
Frame 180M
Output 30 HP (22 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 460 V
Rated current 34.7 A
L. R. Amperes 302 A
LRC 8.7
No load current 12.4 A
Rated torque 43.7 ft.lb
Locked rotor torque 280 %
Breakdown torque 409 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 2.83 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 406 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  91.7  92.4

Power factor

50% 75% 100%
0.71  0.81  0.86
