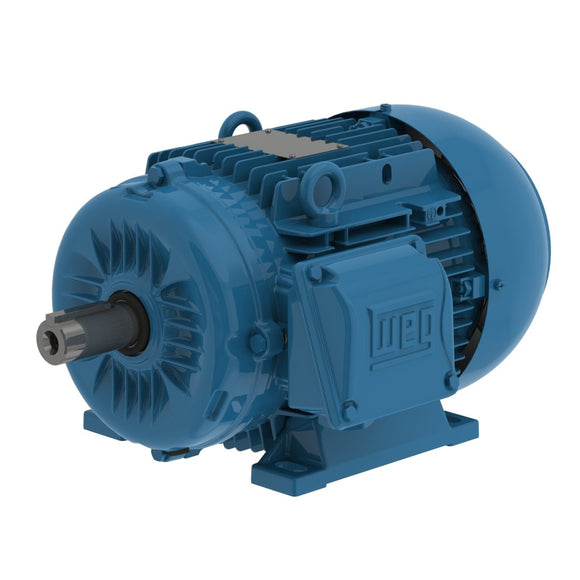

Electric Motors
| Frame | 132S |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2925 rpm |
| Slip | 2.50 % |
| Rated voltage | 380 V |
| Rated current | 14.3 A |
| L. R. Amperes | 122 A |
| LRC | 8.5 |
| No load current | 4.70 A |
| Rated torque | 17.7 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 300 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.5980 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 146 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 89.6 | 90.6 | 90.6 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.74 | 0.84 | 0.88 |
| Frame | 132S |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2935 rpm |
| Slip | 2.17 % |
| Rated voltage | 400 V |
| Rated current | 13.9 A |
| L. R. Amperes | 118 A |
| LRC | 8.5 |
| No load current | 5.20 A |
| Rated torque | 17.7 ft.lb |
| Locked rotor torque | 300 % |
| Breakdown torque | 340 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.5980 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 146 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 89.1 | 90.5 | 90.8 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.69 | 0.80 | 0.86 |
| Frame | 132S |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2940 rpm |
| Slip | 2.00 % |
| Rated voltage | 415 V |
| Rated current | 13.8 A |
| L. R. Amperes | 117 A |
| LRC | 8.5 |
| No load current | 5.60 A |
| Rated torque | 17.6 ft.lb |
| Locked rotor torque | 330 % |
| Breakdown torque | 370 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.5980 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 146 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 88.6 | 90.3 | 90.8 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.65 | 0.77 | 0.83 |
| Frame | 132S |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3540 rpm |
| Slip | 1.67 % |
| Rated voltage | 230/460 V |
| Rated current | 24.6/12.3 A |
| L. R. Amperes | 239/119 A |
| LRC | 9.7 |
| No load current | 9.60/4.80 A |
| Rated torque | 14.6 ft.lb |
| Locked rotor torque | 330 % |
| Breakdown torque | 440 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.5980 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 146 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 86.5 | 89.5 | 90.2 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.68 | 0.79 | 0.85 |
Features
| Frame Material | Aluminum |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 2xM32x1,5 |
| Terminal Block | BMC - 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
