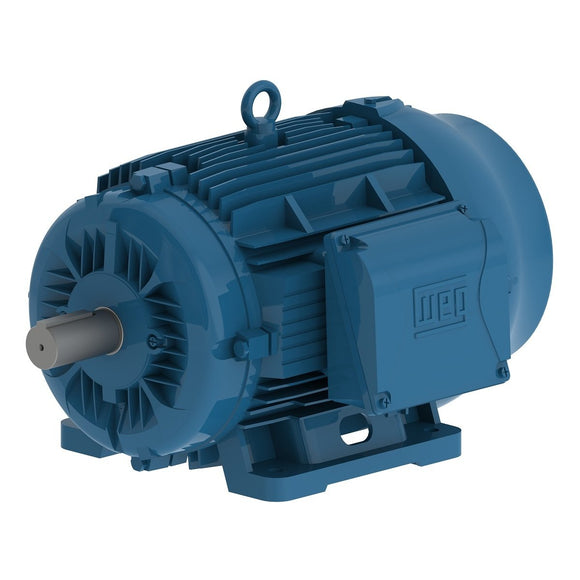

00709ET3Y160L-W22 WEG 10HP/7.5HP IEC TRU-Metric Electric Motor, 900RPM

$2,468.86 USD $2,774.00 USD Save $305.14 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00709ET3Y160L-W22 Barcode: 7891327642539

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 160L
Output 10 HP (7.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 720 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 17.4 A
L. R. Amperes 85.3 A
LRC 4.9
No load current 9.50 A
Rated torque 72.0 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 3.75 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 301 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.8  88.5  87.5

Power factor

50% 75% 100%
0.56  0.68  0.75
Frame 160L
Output 10 HP (7.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 17.2 A
L. R. Amperes 89.4 A
LRC 5.2
No load current 10.5 A
Rated torque 71.5 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 3.75 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 301 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.0  88.3  87.5

Power factor

50% 75% 100%
0.52  0.64  0.72
Frame 160L
Output 10 HP (7.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 17.0 A
L. R. Amperes 93.5 A
LRC 5.5
No load current 11.5 A
Rated torque 71.0 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 3.75 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 301 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.2  88.0  87.5

Power factor

50% 75% 100%
0.49  0.61  0.70
Frame 160L
Output 10 HP (7.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 460 V
Rated current 15.0 A
L. R. Amperes 85.5 A
LRC 5.7
No load current 9.51 A
Rated torque 58.9 ft.lb
Locked rotor torque 240 %
Breakdown torque 270 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 3.75 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 301 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.0  89.5

Power factor

50% 75% 100%
0.49  0.62  0.70

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM40x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
