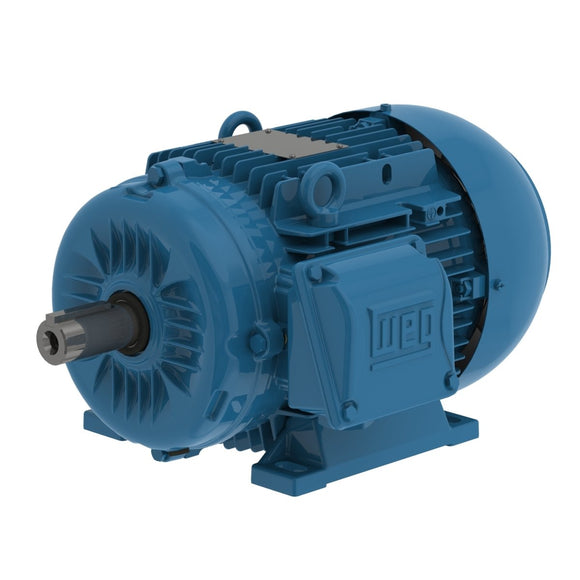

00312ET3YAL132M-W22 WEG 4HP/3kW IEC TRU-Metric Electric Motor, 1200RPM

$1,109.83 USD $1,247.00 USD Save $137.17 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00312ET3YAL132M-W22 Barcode: 7909323285046

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 132M
Output 4 HP (3 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 380 V
Rated current 6.89 A
L. R. Amperes 39.3 A
LRC 5.7
No load current 3.40 A
Rated torque 21.5 ft.lb
Locked rotor torque 170 %
Breakdown torque 220 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 1.07 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 137 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.9  87.0  87.0

Power factor

50% 75% 100%
0.56  0.69  0.76
Frame 132M
Output 4 HP (3 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 6.74 A
L. R. Amperes 44.5 A
LRC 6.6
No load current 3.60 A
Rated torque 21.4 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 1.07 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 137 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  88.0  88.0

Power factor

50% 75% 100%
0.52  0.65  0.73
Frame 132M
Output 4 HP (3 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 6.68 A
L. R. Amperes 46.1 A
LRC 6.9
No load current 3.80 A
Rated torque 21.3 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 1.07 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 137 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.0  88.0  88.0

Power factor

50% 75% 100%
0.49  0.62  0.71
Frame 132M
Output 4 HP (3 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 460 V
Rated current 6.01 A
L. R. Amperes 44.5 A
LRC 7.4
No load current 3.50 A
Rated torque 17.6 ft.lb
Locked rotor torque 220 %
Breakdown torque 310 %
Locked rotor time 122s (cold) 68s (hot)
Moment of inertia (J) 1.07 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 137 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  88.5  89.5

Power factor

50% 75% 100%
0.49  0.62  0.70

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without
