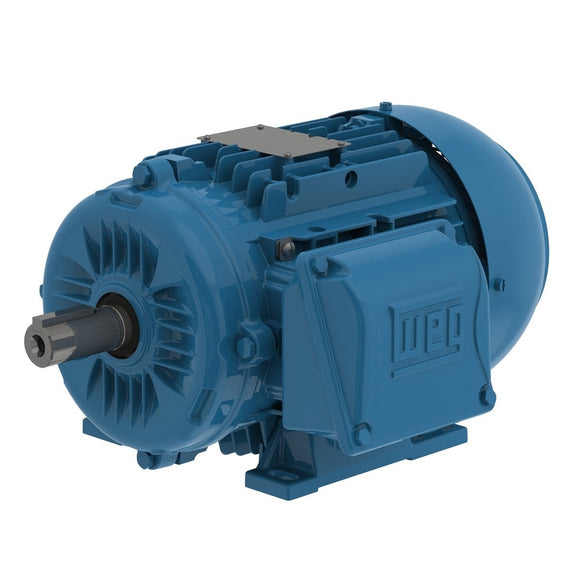

Electric Motors
| Frame | 90S/L |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2840 rpm |
| Slip | 5.33 % |
| Rated voltage | 220/380 V |
| Rated current | 7.81/4.52 A |
| L. R. Amperes | 55.4/32.1 A |
| LRC | 7.1 |
| No load current | 2.85/1.65 A |
| Rated torque | 5.47 ft.lb |
| Locked rotor torque | 300 % |
| Breakdown torque | 310 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.0617 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 44.6 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 86.5 | 86.4 | 85.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.70 | 0.81 | 0.86 |
| Frame | 90S/L |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2865 rpm |
| Slip | 4.50 % |
| Rated voltage | 230/400 V |
| Rated current | 7.70/4.43 A |
| L. R. Amperes | 58.6/33.7 A |
| LRC | 7.6 |
| No load current | 3.22/1.85 A |
| Rated torque | 5.42 ft.lb |
| Locked rotor torque | 340 % |
| Breakdown torque | 350 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.0617 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 44.6 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 86.0 | 86.5 | 86.3 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.65 | 0.77 | 0.83 |
| Frame | 90S/L |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2875 rpm |
| Slip | 4.17 % |
| Rated voltage | 240/415 V |
| Rated current | 7.56/4.37 A |
| L. R. Amperes | 60.5/35.0 A |
| LRC | 8.0 |
| No load current | 3.54/2.05 A |
| Rated torque | 5.41 ft.lb |
| Locked rotor torque | 380 % |
| Breakdown torque | 380 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.0617 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 62.0 dB(A) |
| Approx. weight³ | 44.6 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 85.3 | 86.4 | 86.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.61 | 0.74 | 0.81 |
| Frame | 90S/L |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3480 rpm |
| Slip | 3.33 % |
| Rated voltage | 460 V |
| Rated current | 3.85 A |
| L. R. Amperes | 35.0 A |
| LRC | 9.1 |
| No load current | 1.70 A |
| Rated torque | 4.47 ft.lb |
| Locked rotor torque | 430 % |
| Breakdown torque | 459 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 0.0617 sq.ft.lb |
|---|---|
| Design | N |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 44.6 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 84.0 | 85.5 | 86.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.64 | 0.76 | 0.83 |
Features
| Frame Material | Aluminum |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 2xM25x1,5 |
| Terminal Block | BMC - 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
