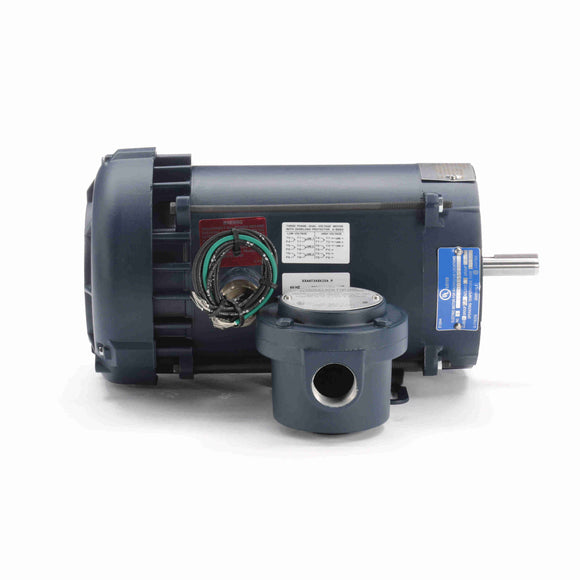

119436.00 Leeson 1HP Explosion Proof Electric Motor, 3600RPM-1

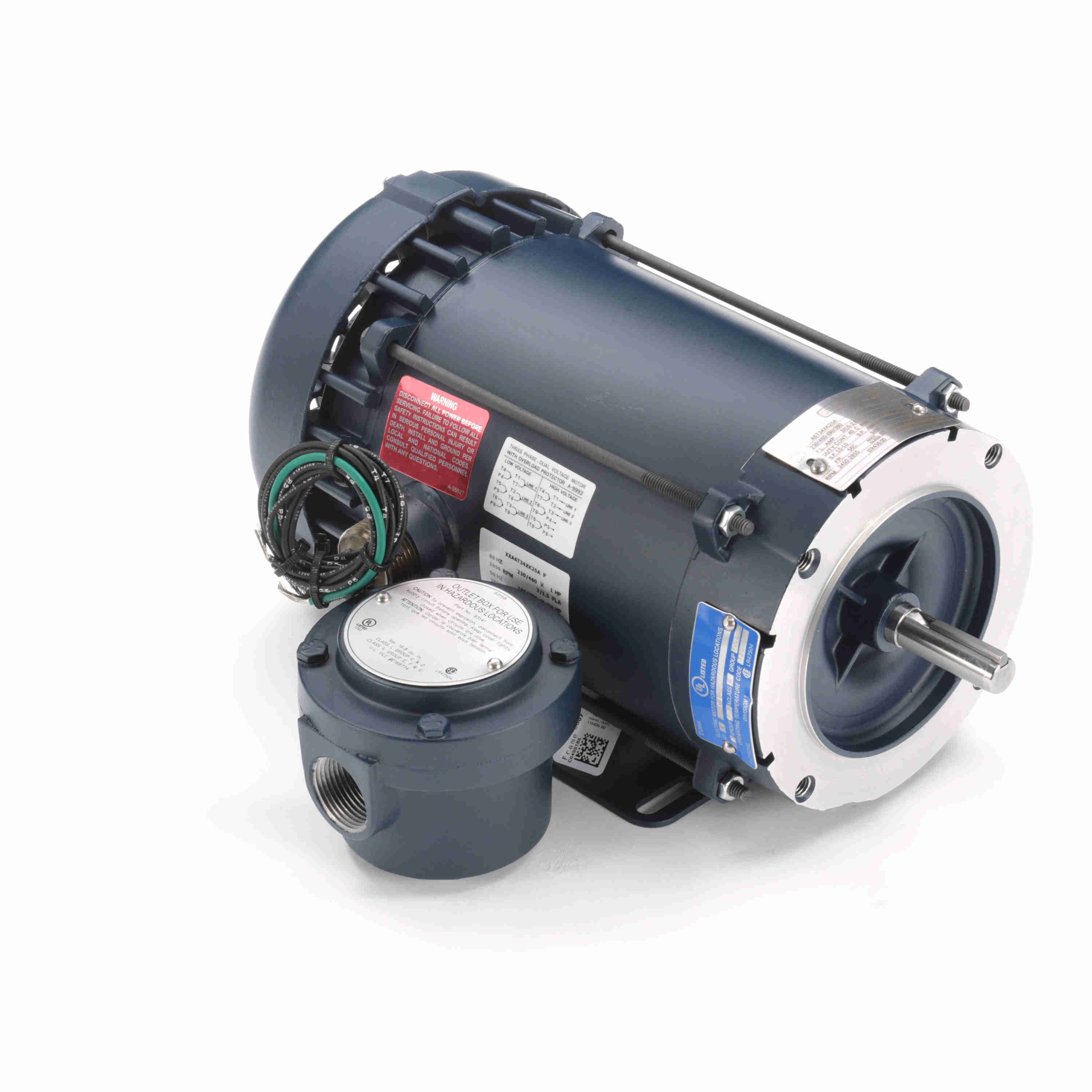

119436.00 Leeson 1HP Explosion Proof Electric Motor, 3600RPM-2

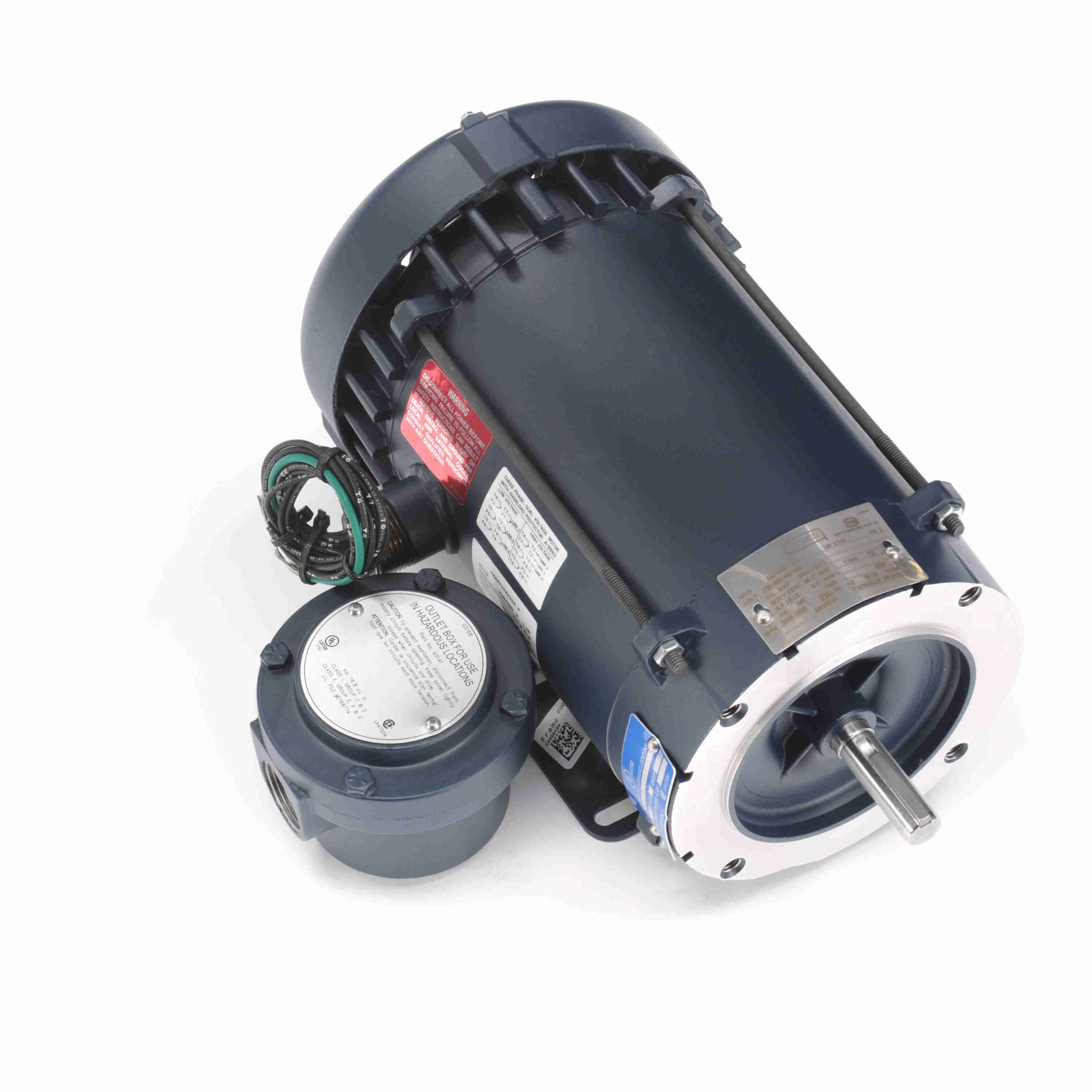

119436.00 Leeson 1HP Explosion Proof Electric Motor, 3600RPM-3

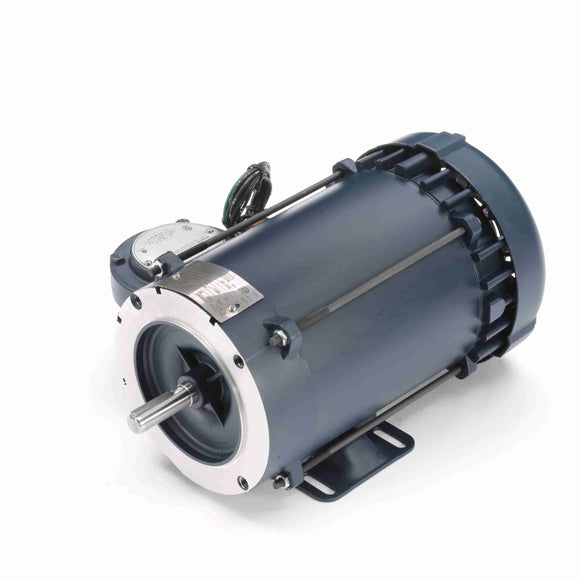

119436.00 Leeson 1HP Explosion Proof Electric Motor, 3600RPM-4

119436.00 Leeson 1HP Explosion Proof Electric Motor, 3600RPM

$1,299.97 USD $2,300.00 USD Save $1,000.03 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 119436.00 Barcode: 691720047118

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Meets UL and CSA safety requirements
  • Automatic overload protected
  • Explosion rated conduit box included
  • Internal mounted capacitors
  • Double shielded ball bearings
  • Meets temperature code T3B

General Specifications

UPC: 691720047118 Weight: 38.00 LB
Packaged Length: 16.12 IN Packaged Width: 10.25 IN
Packaged Height: 8.12 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 3.0/1.5 A Speed: 3450 rpm
Service Factor: 1 Phase: 3
Efficiency: 80 % Power Factor: 83.5
Duty: Continuous Insulation Class: B
Design Code: B KVA Code: K
Frame: 56C Enclosure: Explosion Proof Fan cooled
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Resistance Main: 19.5 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 13.94 in
Frame Length: 6.81 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
No Load 0.65 43.0 0.00 0.0 3,600 1.00
1/3 10.50 700.0 3.00 200.0 1,200 1.00
Full Load 1.50 100.0 1.50 100.0 3,500 1.00
Locked-Rotor 11.00 733.0 3.50 233.0 66.0 1.00
Break-Down 7.00 467.0 5.30 353.0 2,830 83.5 1.00
Pull-Up 10.00 667.0 3.20 213.0 1,800 1.00
2/3 9.00 600.0 3.70 247.0 2,400 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 0.65 0.80 1.00 1.20 1.50 1.60 1.70
Rated Output (KW) 0.17 0.32 0.52 0.75 0.95 1.10 1.20
Efficiency (%) 0.0 60.2 72.7 73.4 80.0 76.6 78.3
Power Factor (%) 32.8 50.2 65.3 78.4 83.5 86.3 88.6
Speed (RPM) 3,600 3,570 3,550 3,525 3,500 3,490 3,480
Temp. Rise @ FL 0.0 0.0 0.0 0.0 35.0 45.0 55.0
Torque (ft-lbs) 0.00 0.38 0.75 1.10 1.50 1.70 1.90
