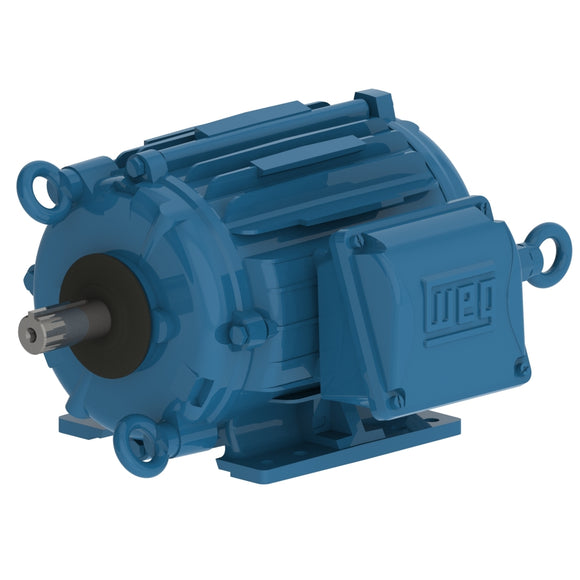

00158AT3PCT145T-W22 WEG 1.5HP Cooling Tower Electric Motor, 1800RPM

$619.44 USD $696.00 USD Save $76.56 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00158AT3PCT145T-W22 Barcode: 7909018577807

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 200 V
Rated current 4.65 A
L. R. Amperes 39.0 A
LRC 8.4x(Code L)
No load current 2.53 A
Rated torque 4.49 ft.lb
Locked rotor torque 290 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.1431 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 53.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  85.5  86.5

Power factor

50% 75% 100%
0.60  0.70  0.79

Features

Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 200 - 240 V
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Without fan
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
