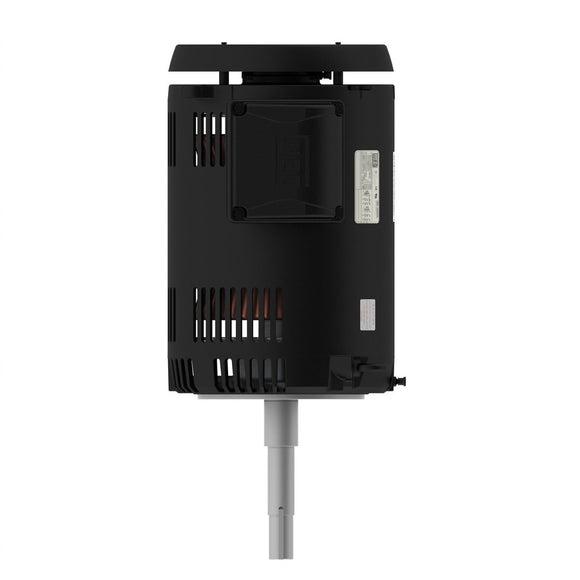

01012OT3E256JPV-S WEG 10HP JP Close Coupled Pump Electric Motor, 1200PM

$2,132.44 USD $2,396.00 USD Save $263.56 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 01012OT3E256JPV-S Barcode: 7909322282824

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 254/6JP
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 208-230/460 V
Rated current 30.7-27.8/13.9 A
L. R. Amperes 163-147/73.7 A
LRC 5.3x(Code G)
No load current 12.6-14.7/7.33 A
Rated torque 43.9 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 2.50 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 209 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  91.7  91.7

Power factor

50% 75% 100%
0.56  0.68  0.74
Frame 254/6JP
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 190/380 V
Rated current 33.2/16.6 A
L. R. Amperes 139/69.7 A
LRC 4.2x(Code E)
No load current 14.4/7.22 A
Rated torque 53.4 ft.lb
Locked rotor torque 150 %
Breakdown torque 180 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.50 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 209 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.1  89.7  88.0

Power factor

50% 75% 100%
0.63  0.74  0.78
Frame 254/6JP
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 220/415 V
Rated current 29.4/15.6 A
L. R. Amperes 147/78.0 A
LRC 5.0x(Code G)
No load current 15.9/8.42 A
Rated torque 53.1 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.50 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 209 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.2  89.8  89.0

Power factor

50% 75% 100%
0.56  0.68  0.75

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 1.732"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Superior
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Resilient Base Without
