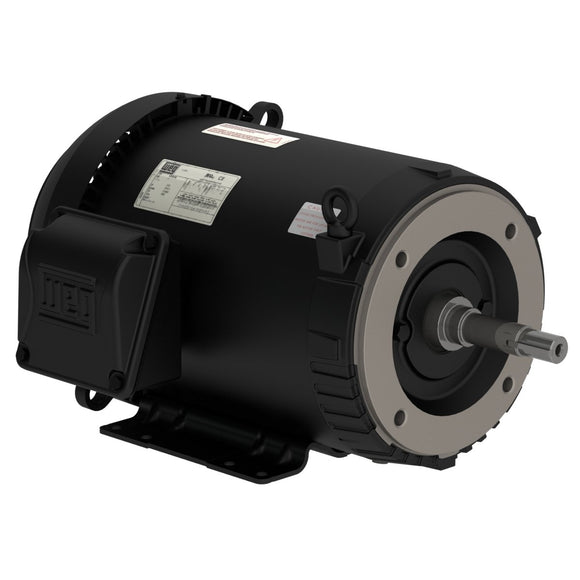

00736ET3E213JM-S WEG 7.5HP JM Close Coupled Pump Electric Motor, 3600RPM

$1,262.91 USD $1,419.00 USD Save $156.09 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00736ET3E213JM-S Barcode: 7909322107493

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 19.2-17.3/8.67 A
L. R. Amperes 146-132/65.9 A
LRC 7.6x(Code H)
No load current 5.72-6.63/3.32 A
Rated torque 11.0 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.5496 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 143 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  89.5

Power factor

50% 75% 100%
0.76  0.85  0.89
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 190/380 V
Rated current 21.2/10.6 A
L. R. Amperes 134/66.8 A
LRC 6.3x(Code G)
No load current 6.54/3.27 A
Rated torque 13.4 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.5496 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 143 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.6  88.4  86.9

Power factor

50% 75% 100%
0.81  0.88  0.91
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2925 rpm
Slip 2.50 %
Rated voltage 220/415 V
Rated current 18.4/9.75 A
L. R. Amperes 140/74.1 A
LRC 7.6x(Code J)
No load current 7.02/3.72 A
Rated torque 13.3 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.5496 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 143 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.1  88.2

Power factor

50% 75% 100%
0.75  0.85  0.89

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
