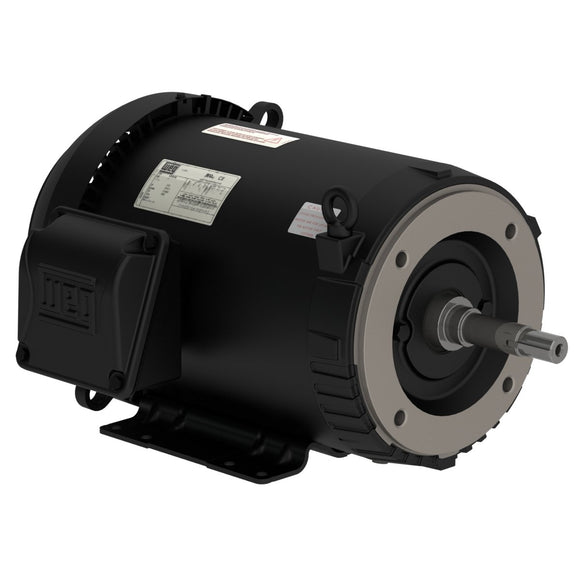

00712ET3E254JM-S WEG 7.5HP JM Close Coupled Pump Electric Motor, 1200RPM

$2,184.95 USD $2,455.00 USD Save $270.05 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00712ET3E254JM-S Barcode: 7909158963065

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 254/6JM
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 22.1-20.0/9.98 A
L. R. Amperes 119-108/53.9 A
LRC 5.4x(Code G)
No load current 8.66-10.1/5.03 A
Rated torque 33.1 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 75s (cold) 42s (hot)
Moment of inertia (J) 2.34 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 224 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  89.5  91.0

Power factor

50% 75% 100%
0.58  0.70  0.76
Frame 254/6JM
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 190/380 V
Rated current 24.0/12.0 A
L. R. Amperes 101/50.4 A
LRC 4.2x(Code D)
No load current 9.92/4.96 A
Rated torque 40.3 ft.lb
Locked rotor torque 150 %
Breakdown torque 180 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.34 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 224 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.9  89.5  88.0

Power factor

50% 75% 100%
0.65  0.75  0.79
Frame 254/6JM
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 220/415 V
Rated current 21.3/11.3 A
L. R. Amperes 109/57.6 A
LRC 5.1x(Code F)
No load current 10.6/5.64 A
Rated torque 39.9 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.34 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 224 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.4  89.8  89.0

Power factor

50% 75% 100%
0.58  0.70  0.76

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 1.732"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Superior
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
