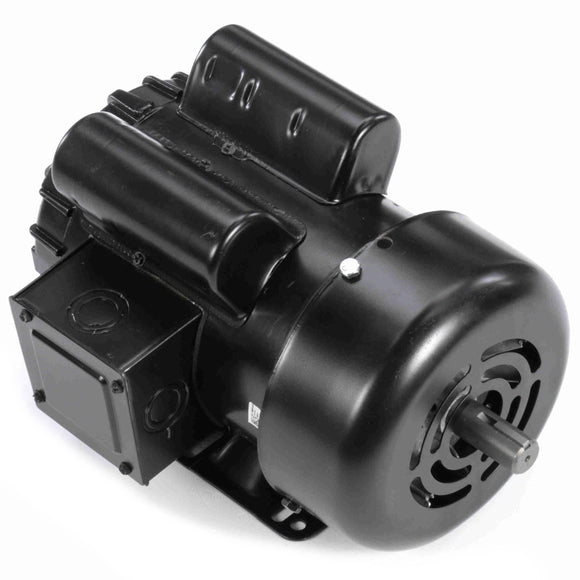

C317V1 Century 1.5HP Grain Stirring Electric Motor, 1800RPM

$497.97 USD $1,282.00 USD Save $784.03 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: C317V1 Barcode: 786674015754

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Features

  • Fully gasketed construction to keep grain dust out
  • Fan/fan guard on shaft end keeps grain dust out of motor
  • Durable powder coat paint
  • Manual reset thermal protector

General Specifications

UPC: 786674015754 Weight: 32.00 LB
Packaged Length: 17 IN Packaged Width: 11 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 1.5 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230 V
Current: 7.4 A Speed: 1725 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: M56Y Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 13.28 in
Frame Length: 6.75 in Shaft Diameter: 0.875 in
Shaft Extension: 1.44 in
