Features
Features
- High starting and breakdown torque
- Heavy gauge steel frame and base
General Specifications
General Specifications

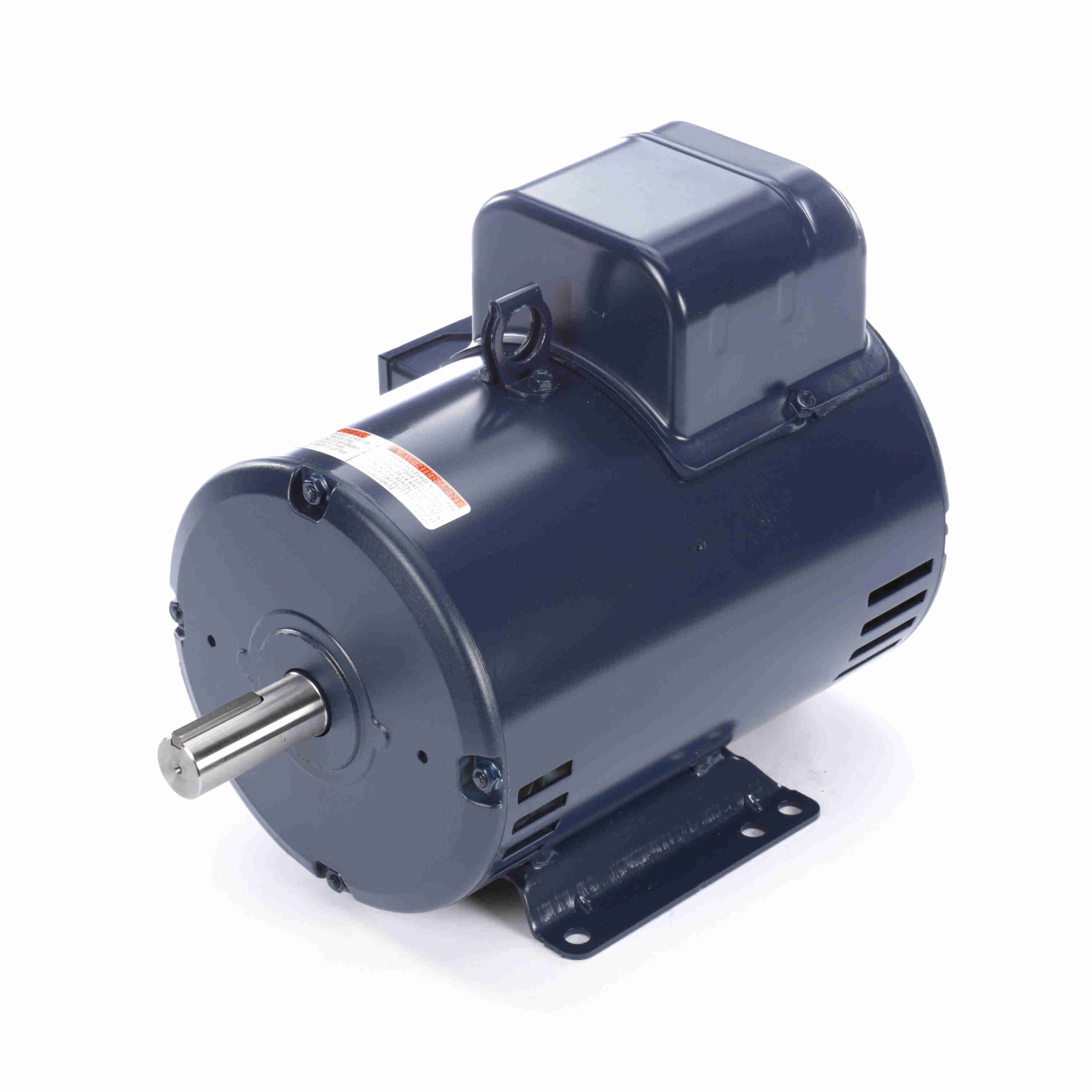

| Model : | Catalog No : | V208M2 | |
| Part Description : | 5,1750,DP,184T,1/60/208-230 | Category : | Air Compressor |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 5 Hp | Output KW : | 3.7 kW |
| Frequency : | 60 Hz | Voltage : | 208-230 V |
| Current : | 22-20 A | Speed : | 1750 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | F |
| Frame : | 184T | Enclosure : | Drip Proof |
| Overload Protector : | No | Ambient Temperature : | 40 °C |
| UL : | Recognized | CSA : | Y |
| CE : | Y |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Counterclockwise |
| Mounting : | Rigid base | Drive End Bearing : | Ball |
| Opp Drive End Bearing : | Ball | Frame Material : | Rolled Steel |
| Shaft Type : | Keyed | Overall Length : | 16.19 in |
| Frame Length : | 11.00 in | Shaft Diameter : | 1.125 in |
| Shaft Extension : | 2.81 in | UPC : | 786674066978 |
| Weight : | 89.00 LB |
Speed & Load Characteristics
