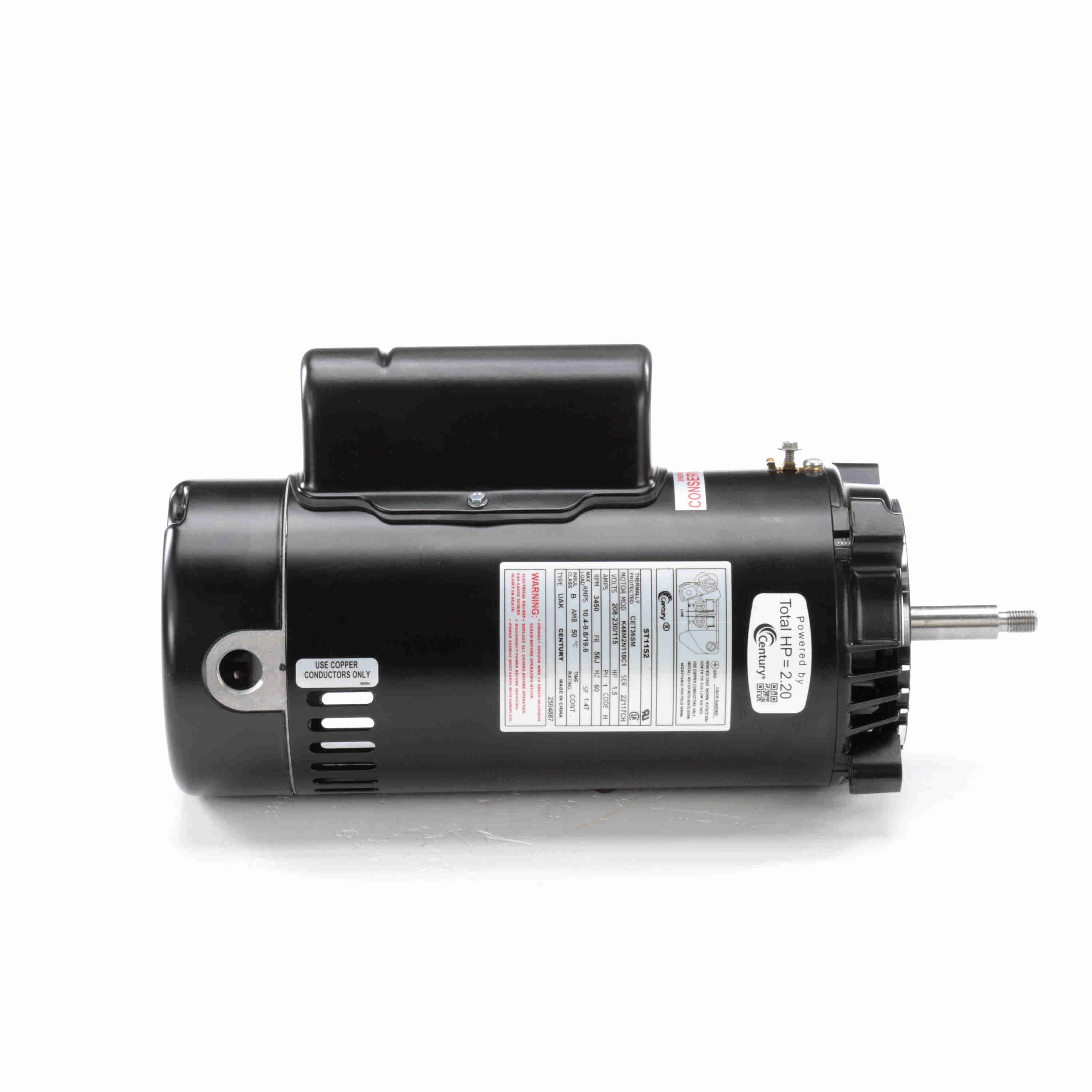

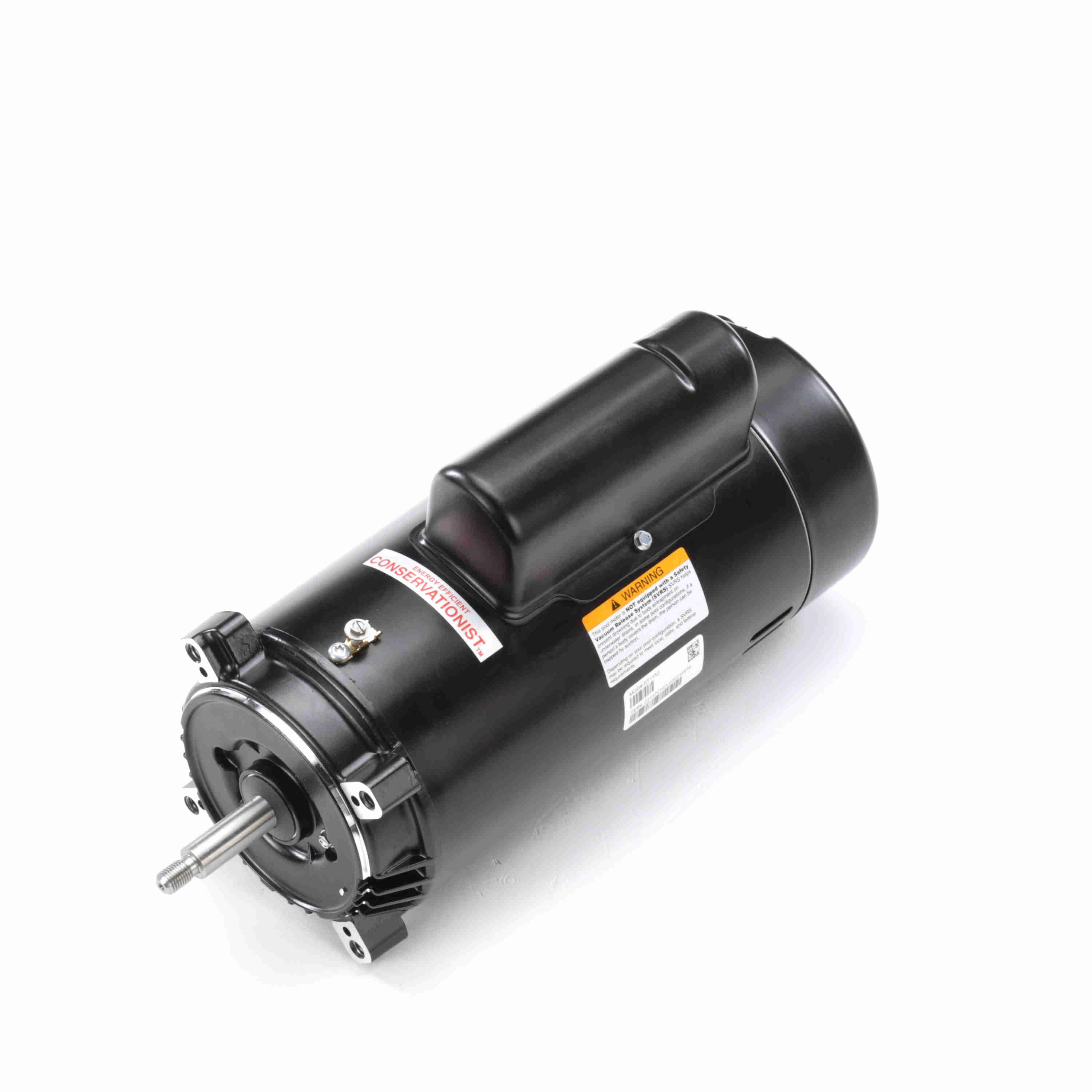

ST1152 Century 1.5HP Pool Pump Electric Motor, 3450 RPM

$480.97

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: ST1152 Barcode: 786674031792

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Sealed Ball Bearings
  • Capacitor Start-Capacitor Run
  • Sealed Switch Design
  • 50°C Ambient
  • 303 Stainless Shaft
  • UL 1081 Design
  • 304 Bearing Shaft End
  • Threaded Shaft
  • Energy Efficient

General Specifications

General Specifications
Model : ST1152 Catalog No : ST1152
Part Description : 1.5 HP 3450 115/230 ODP 56J THD SHAFT Category : Induction Motors
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 1.5 Hp Output KW : 1.1 kW
Frequency : 60 Hz Voltage : 208-230/115 V
Current : 10.4-9.8/19.6 A Speed : 3450 rpm
Service Factor : 1.47 Phase : 1
Duty : Continuous Insulation Class : B
Frame : 56J Enclosure : Open Drip Proof
Overload Protector : Automatic Ambient Temperature : 50 °C
UL : Recognized CSA : Y

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Poles : 2
Rotation : Counterclockwise Pump End Mounting : Round
Motor Orientation : Horizontal Drive End Bearing : BALL
Opp Drive End Bearing : BALL Frame Material : Rolled Steel
Shaft Type : Threaded Overall Length : 15.19 in
Frame Length : 9.25 in Shaft Diameter : 0.625 in
Shaft Extension : 2.563 in UPC : 786674031792
Weight : 32.00 LB
