6319ZZXC3 Koyo Ball Bearing, Shielded-1
6319ZZXC3 Koyo Ball Bearing, Shielded-2

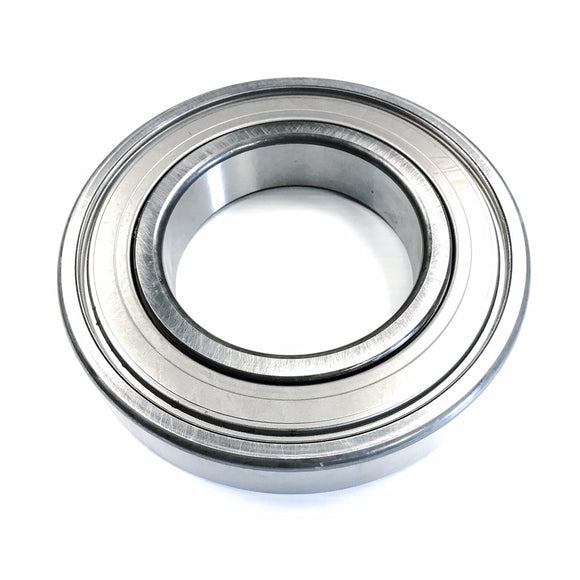

6319ZZXC3 Koyo Ball Bearing, Shielded

$320.50

Shipping calculated at checkout

JTEKT Corporation SKU: 6319-ZZC3 Barcode: 4549250175992

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6319ZZXC3
Group Deep Groove Ball Bearings
Type Shielded (ZZX)
Bore / Inside Diameter (d) 95 mm
Housing / Outside Diameter (D) 200 mm
Width (B) 45 mm
Minimum Radius (r) 3 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 153 kN
C0r 119 kN
Fatigue Load Limit (Cu) 9.45 kN
Factor (f0) 13.3
Limiting Speeds (Grease Lubrication) 3,300 min-1
Shaft Shoulder Mounting Dimension (da) 108 mm Minimum
122 mm Maximum
Housing Shoulder Mounting Dimension (Da) 187 mm Maximum
Shoulder Radius (ra) 2.5 mm Maximum
Mass 5.67 kg
12.51 lbs
UPC 4549250175992
Country of Manufacture Japan
