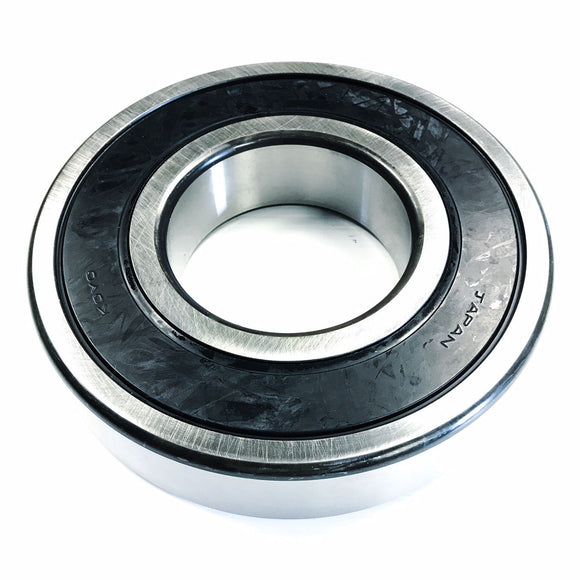

63142RDTC3 Koyo Ball Bearing, Rubber Sealed

$180.88 USD

Shipping calculated at checkout

JTEKT Corporation SKU: 6314-2RS Barcode: 4549250174421

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 63142RDTC3
Group Deep Groove Ball Bearings

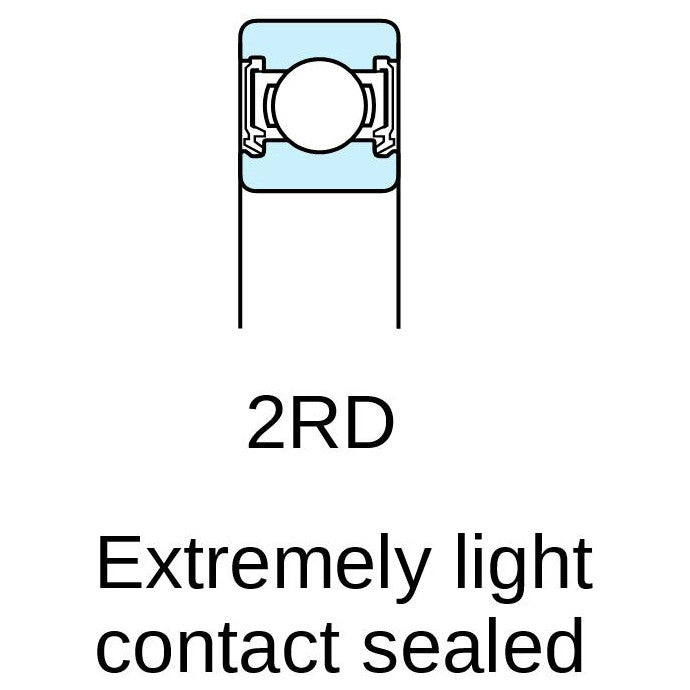

Type Extremely Light Contact Sealed (2RD)

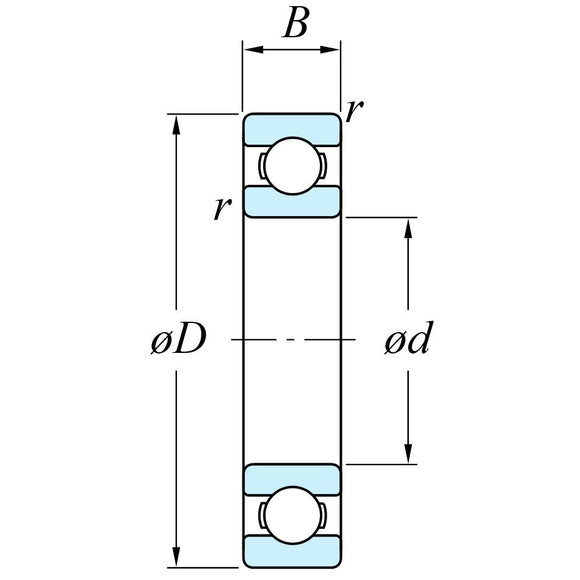

Bore / Inside Diameter (d) 70 mm
Housing / Outside Diameter (D) 150 mm
Width (B) 35 mm
Minimum Radius (r) 2.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 104 kN
C0r 68.2 kN
Fatigue Load Limit (Cu) 4.95 kN
Factor (f0) 13.2
Limiting Speeds (Grease Lubrication) N/A

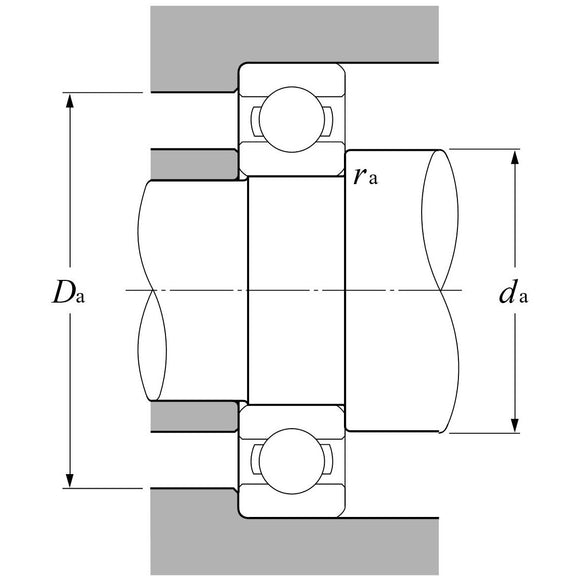

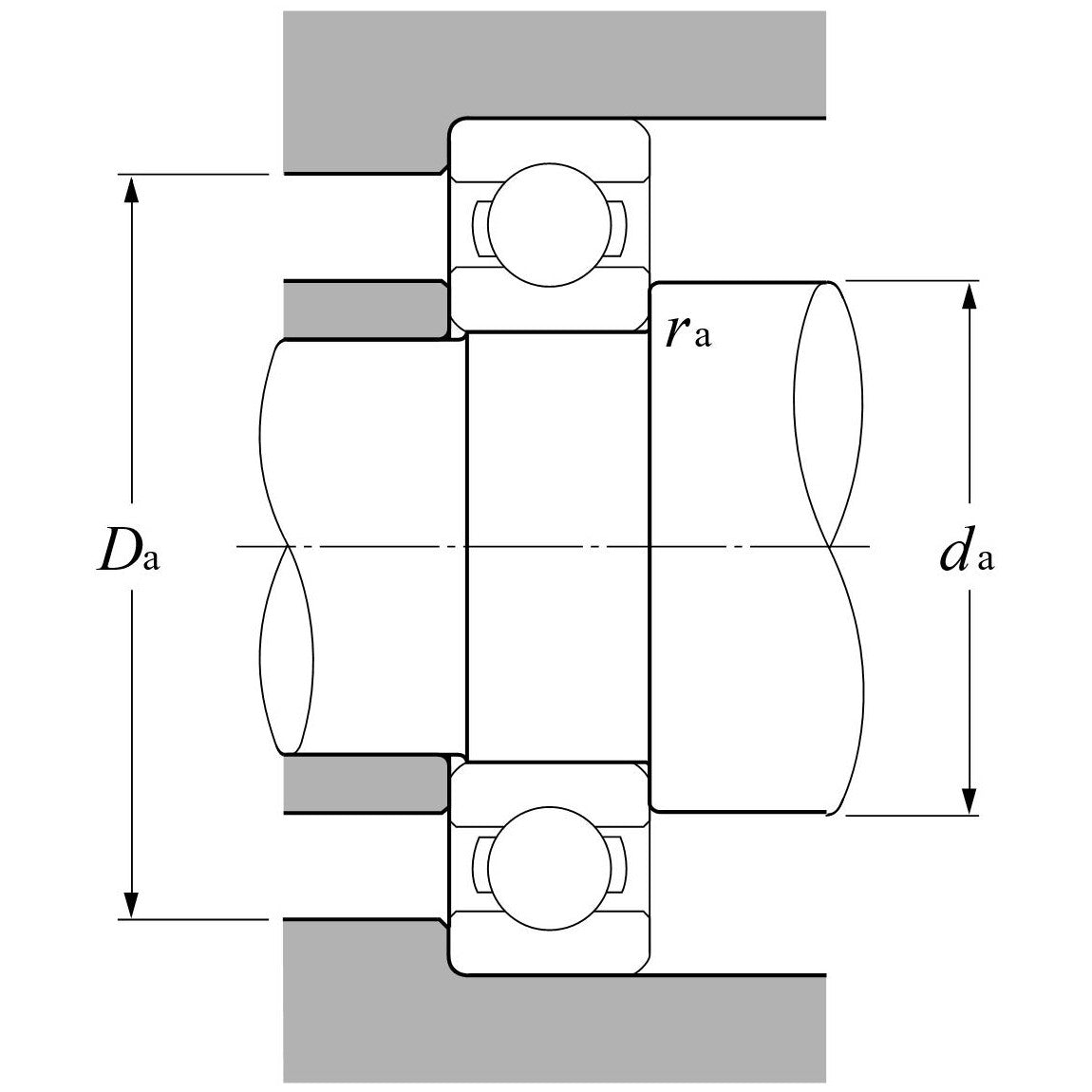

Shaft Shoulder Mounting Dimension (da) 81 mm Minimum
92 mm Maximum
Housing Shoulder Mounting Dimension (Da) 139 mm Maximum
Shoulder Radius (ra) 2 mm Maximum
Mass 2.52 kg
5.56 lbs
UPC
Country of Manufacture Japan
