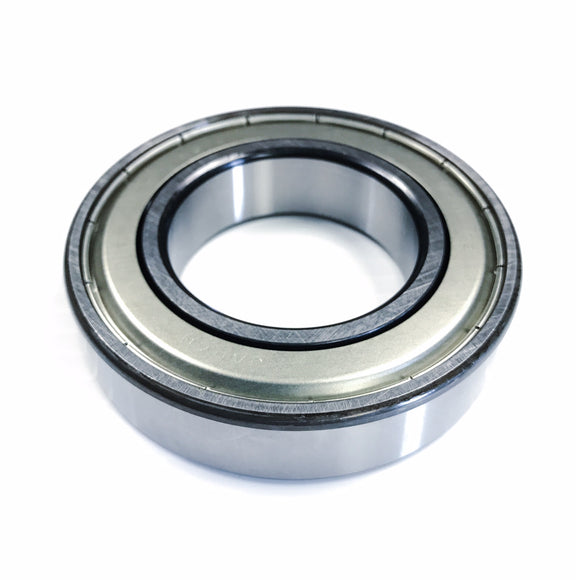

6310ZZC3 Koyo Ball Bearing, Double Shielded

$53.10

Shipping calculated at checkout

JTEKT Corporation SKU: 6310-ZZC3 Barcode: 4549250172113

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6310ZZC3
Group Deep Groove Ball Bearings

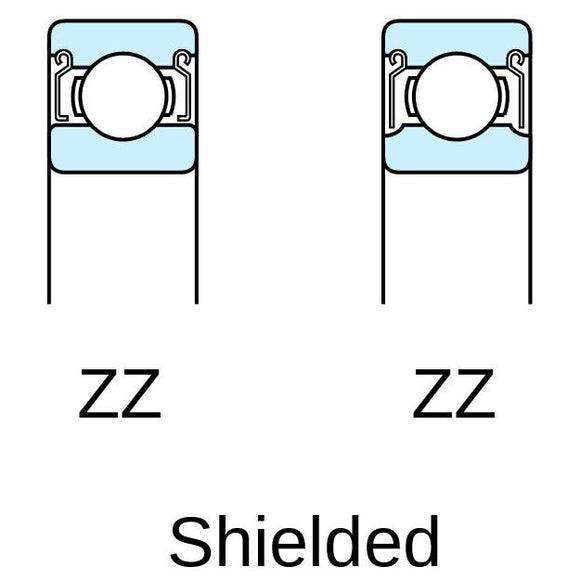

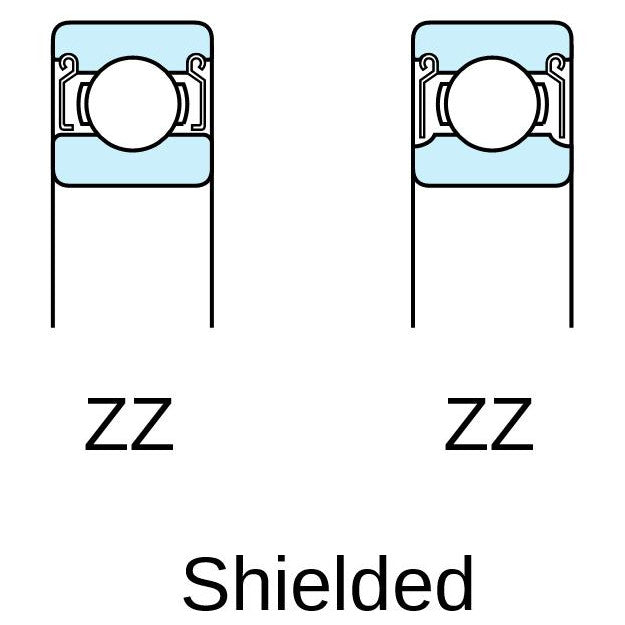

Type Shielded (ZZ)

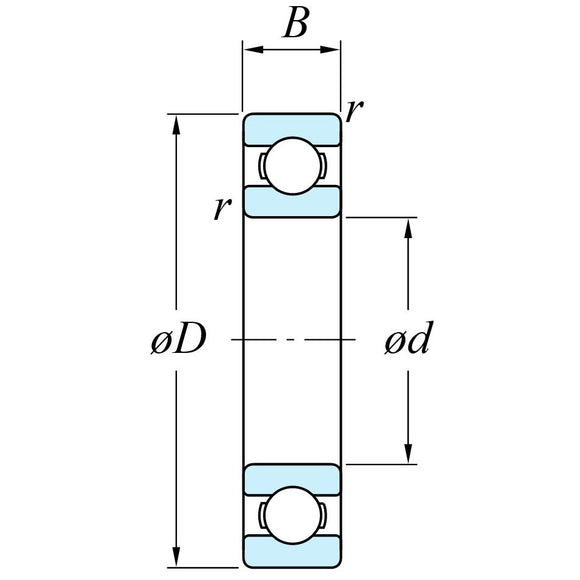

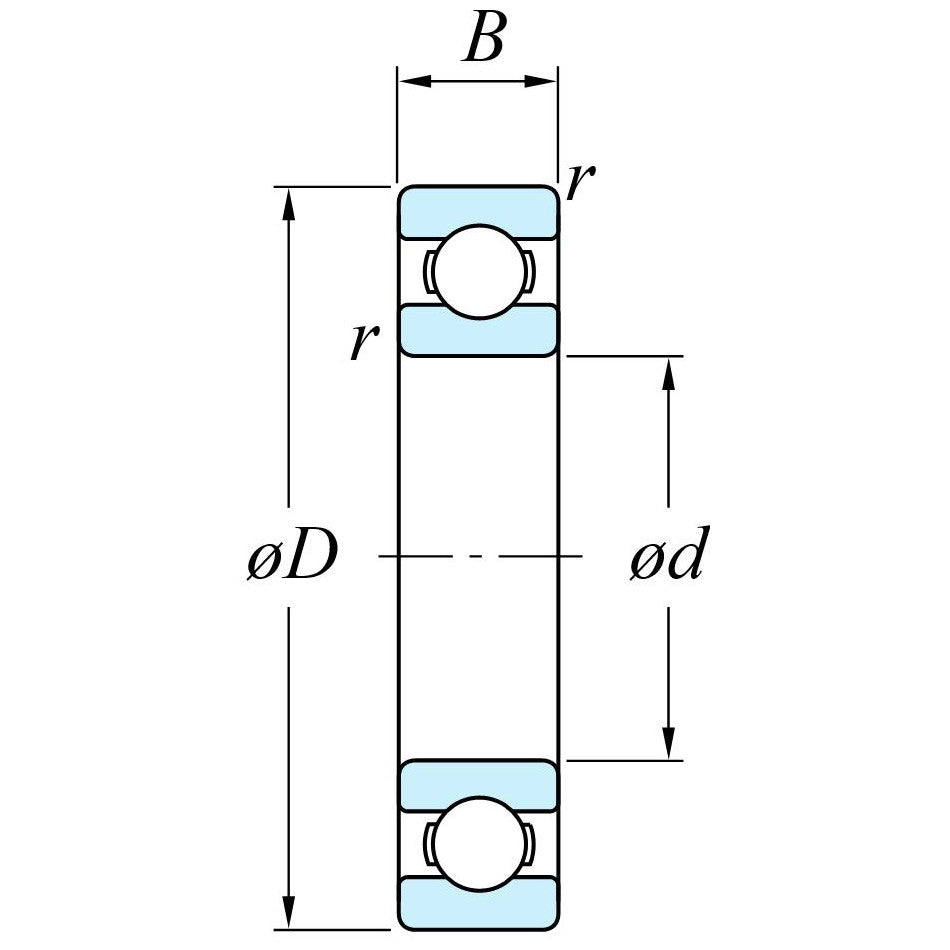

Bore / Inside Diameter (d) 50 mm
Housing / Outside Diameter (D) 110 mm
Width (B) 27 mm
Minimum Radius (r) 2 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 62.0 kN
C0r 38.3 kN
Fatigue Load Limit (Cu) 2.90 kN
Factor (f0) 13.2
Limiting Speeds (Grease Lubrication) 6,100 min-1

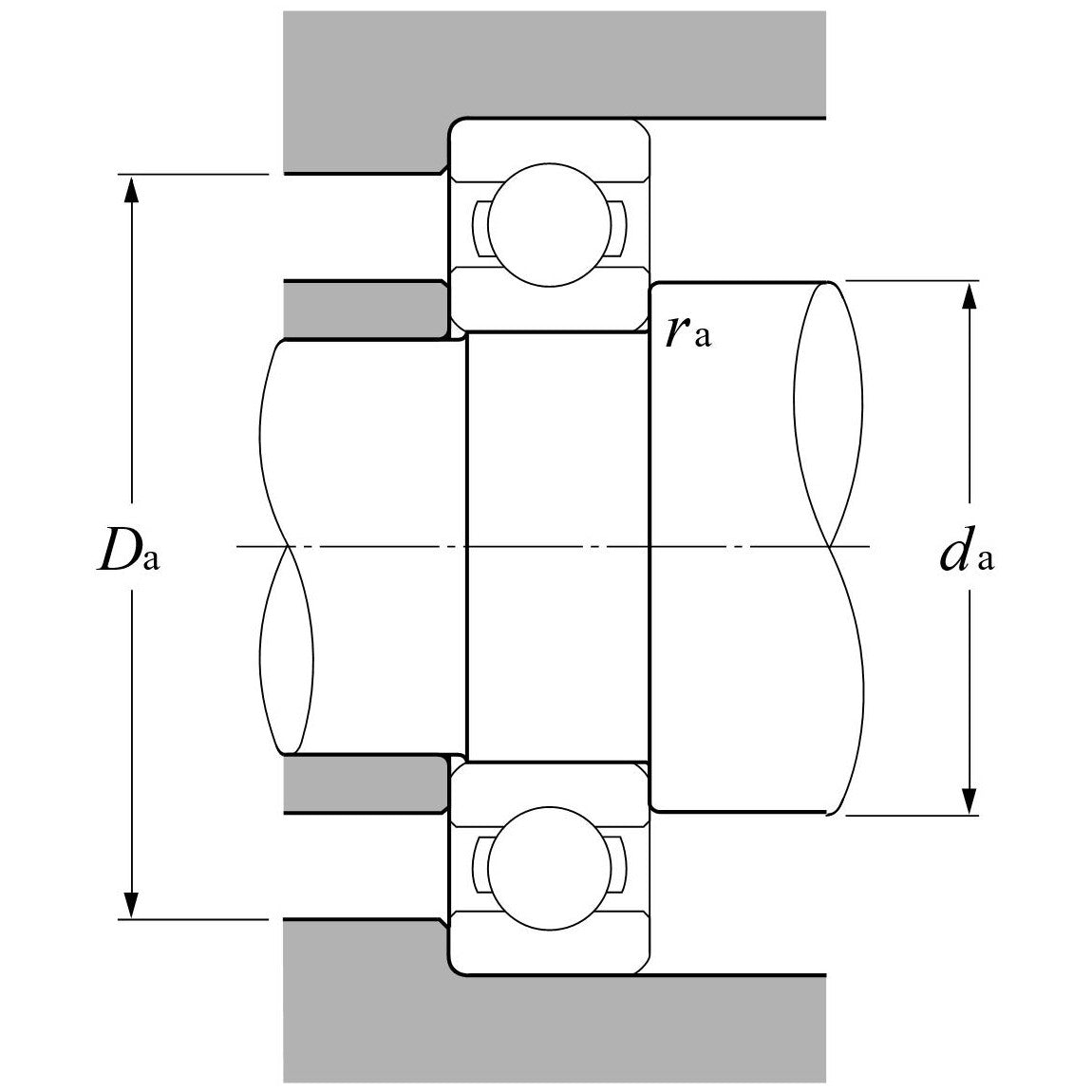

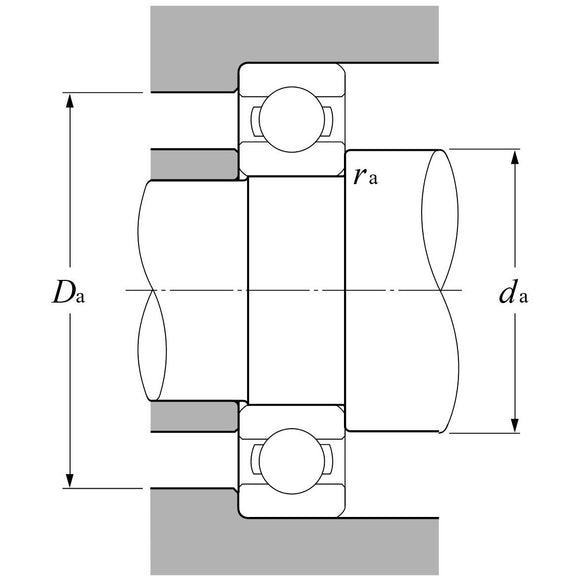

Shaft Shoulder Mounting Dimension (da) 59 mm Minimum
66.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 101 mm Maximum
Shoulder Radius (ra) 2 mm Maximum
Mass 1.07 kg
2.36 lbs
UPC 4549250172113
Country of Manufacture Japan
