6309ZZC3 Koyo Ball Bearing, Double Shielded-1
6309ZZC3 Koyo Ball Bearing, Double Shielded-2
6309ZZC3 Koyo Ball Bearing, Double Shielded-3

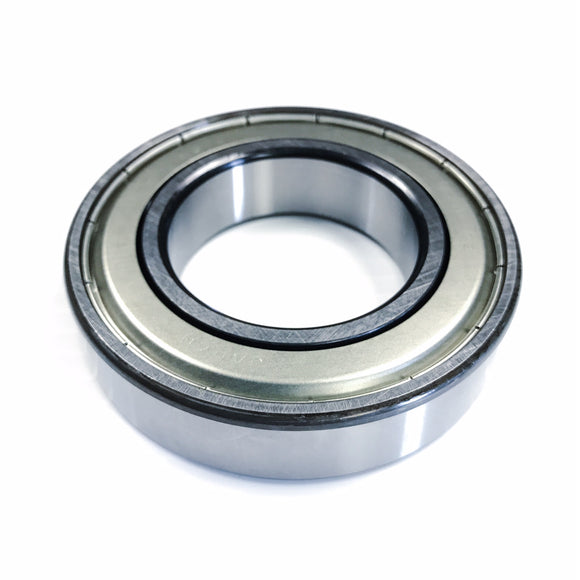

6309ZZC3 Koyo Ball Bearing, Double Shielded

$52.27

Shipping calculated at checkout

JTEKT Corporation SKU: 6309-ZZC3 Barcode: 4549250171536

30 Day
Return Policy

Ships Fast
in 24 hours

10

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6309ZZC3
Group Deep Groove Ball Bearings

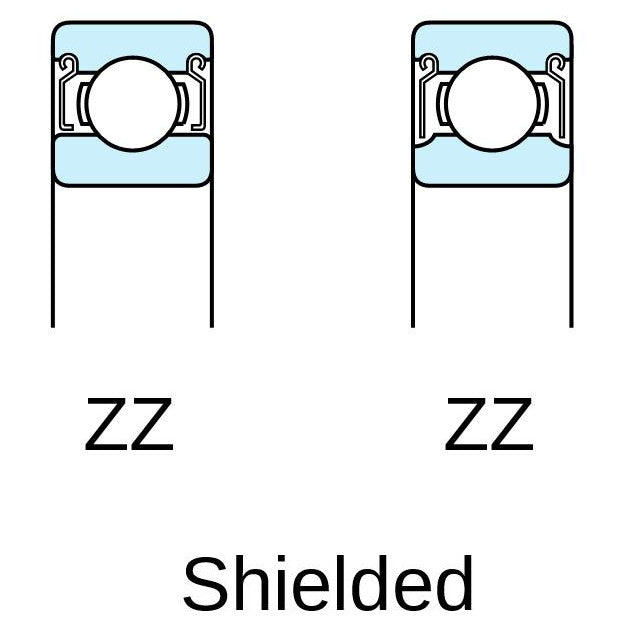

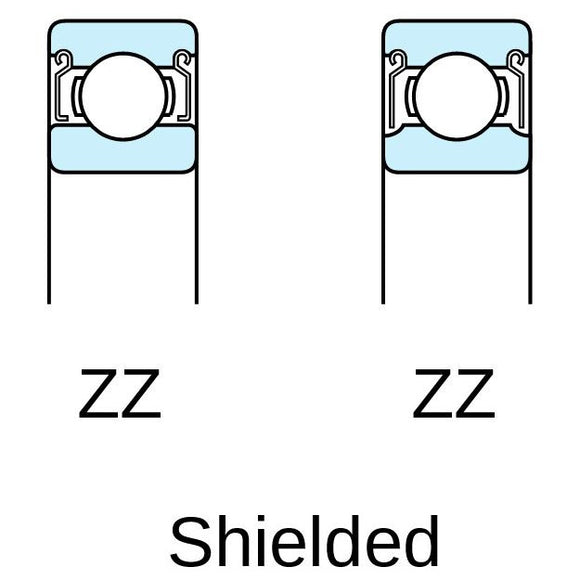

Type Shielded (ZZ)
Bore / Inside Diameter (d) 45 mm
Housing / Outside Diameter (D) 100 mm
Width (B) 25 mm
Minimum Radius (r) 1.5 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 48.9 kN
C0r 29.5 kN
Fatigue Load Limit (Cu) 2.25 kN
Factor (f0) 13.3
Limiting Speeds (Grease Lubrication) 6,800 min-1
Shaft Shoulder Mounting Dimension (da) 53 mm Minimum
59.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 92 mm Maximum
Shoulder Radius (ra) 1.5 mm Maximum
Mass 0.833 kg
1.84 lbs
UPC 4549250171536
Country of Manufacture Japan
