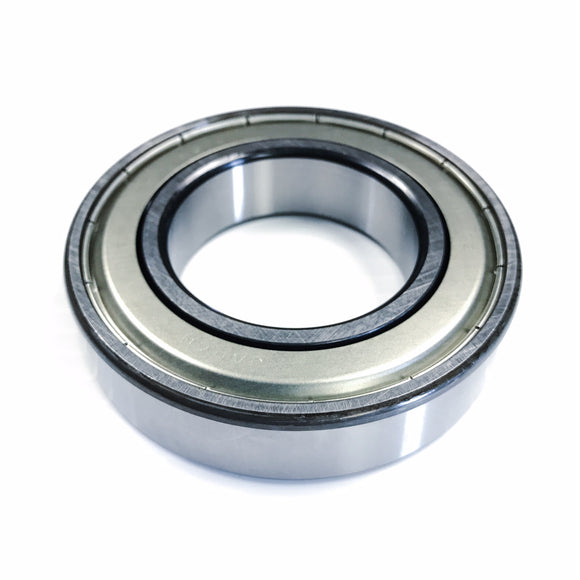

6306ZZC3 Koyo Ball Bearing, Shielded

$25.01 USD

Shipping calculated at checkout

JTEKT Corporation SKU: 6306-ZZC3 Barcode: 4549250169298

30 Day
Return Policy

Ships Fast
in 24 hours

3

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6306ZZC3
Group Deep Groove Ball Bearings
Type Shielded (ZZ)
Bore / Inside Diameter (d) 30 mm
Housing / Outside Diameter (D) 72 mm
Width (B) 19 mm
Minimum Radius (r) 1.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 26.7 kN
C0r 15.0 kN
Fatigue Load Limit (Cu) 1.15 kN
Factor (f0) 13.3
Limiting Speeds (Grease Lubrication) 9,600 min-1
Shaft Shoulder Mounting Dimension (da) 36.5 mm Minimum
40 mm Maximum
Housing Shoulder Mounting Dimension (Da) 65.5 mm Maximum
Shoulder Radius (ra) 1 mm Maximum
Mass 0.346 kg
0.77 lbs
UPC 4549250169298
Country of Manufacture Japan
