Specifications
| Brand | Koyo Seiko Company, LTD |
|---|---|
| Manufacturer Part Number | 6216ZZC3 |
| Group | Deep Groove Ball Bearings |

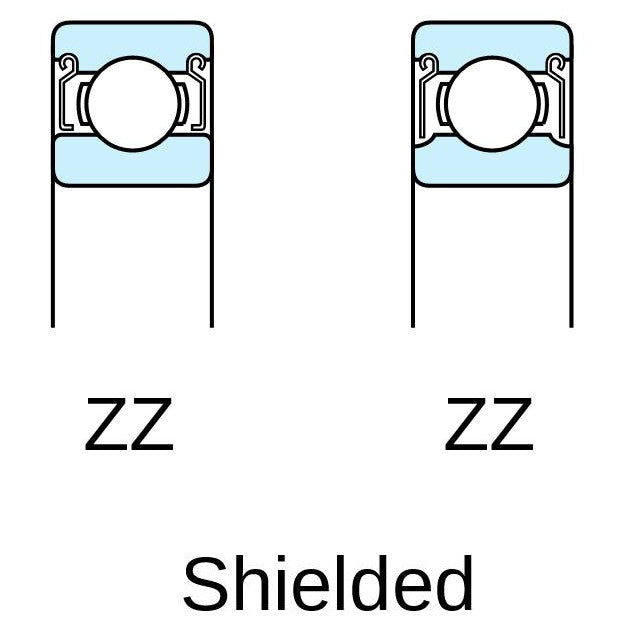

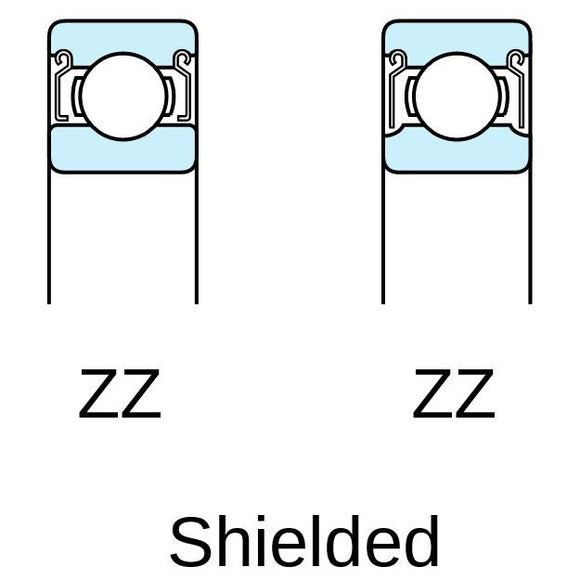

| Type | Shielded (ZZ) |
| Bore / Inside Diameter (d) | 80 mm |
| Housing / Outside Diameter (D) | 140 mm |
| Width (B) | 26 mm |
| Minimum Radius (r) | 2 mm |
| Operating Temperature | -30 to 110°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Tolerances | JIS B 1514 |
| Allowable Misalignment | .002 3 - .003 4 rad ( 8’ - 12’ ) |
| Basic Load Rating | Cr 72.7 kN C0r 53.0 kN |
| Fatigue Load Limit (Cu) | 3.25 kN |
| Factor (f0) | 14.6 |
| Limiting Speeds (Grease Lubrication) | 4,500 min-1 |

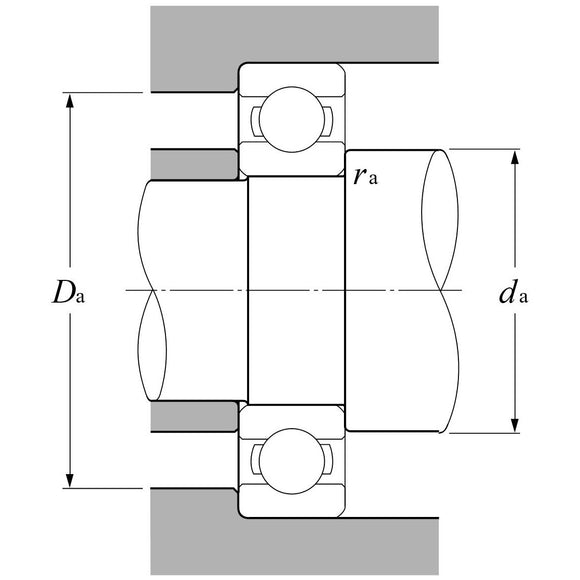

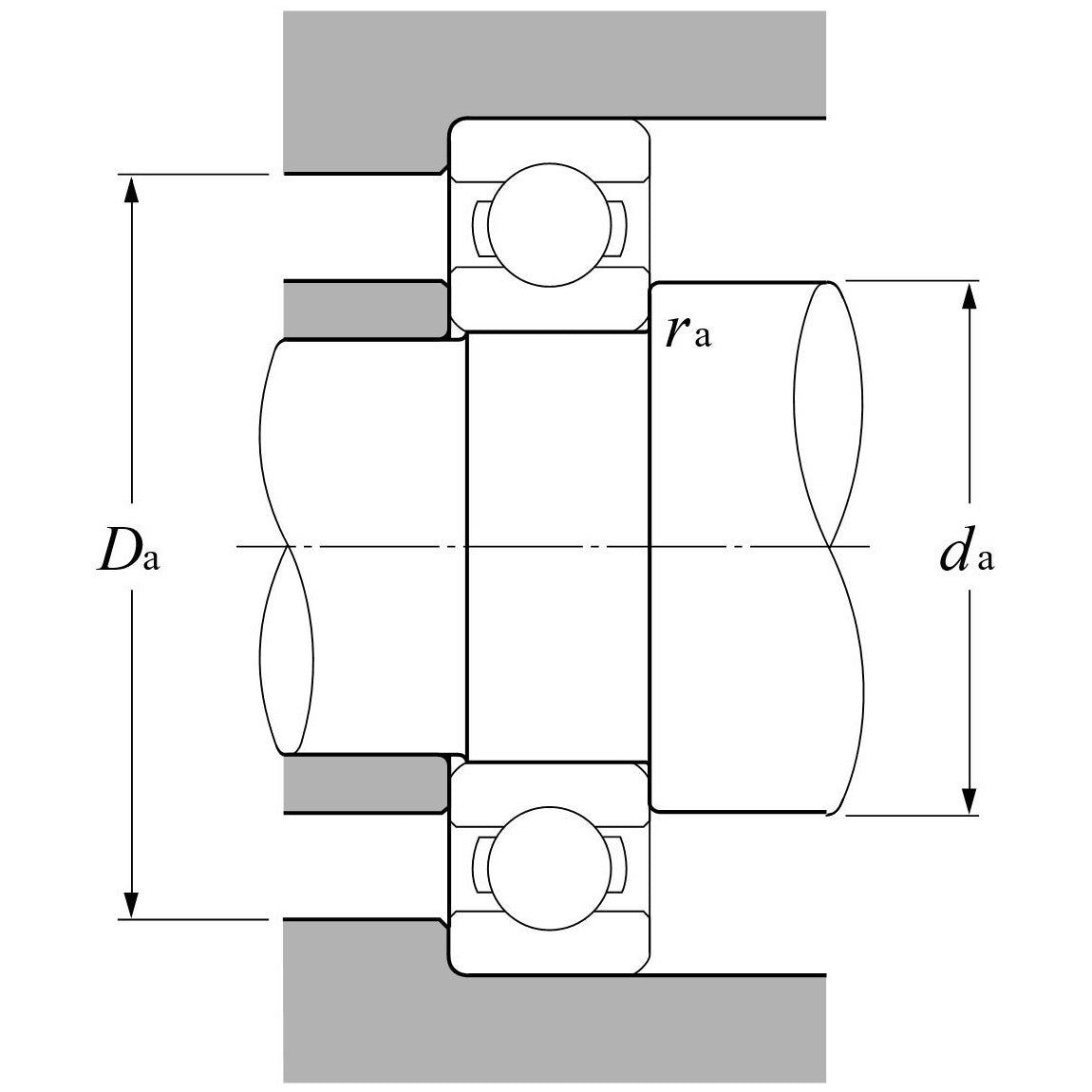

| Shaft Shoulder Mounting Dimension (da) | 89 mm Minimum 93 mm Maximum |
| Housing Shoulder Mounting Dimension (Da) | 131 mm Maximum |
| Shoulder Radius (ra) | 2 mm Maximum |
| Mass | 1.40 kg 3.09 lbs |
| UPC | 4549250162275 |
| Country of Manufacture | Japan |
