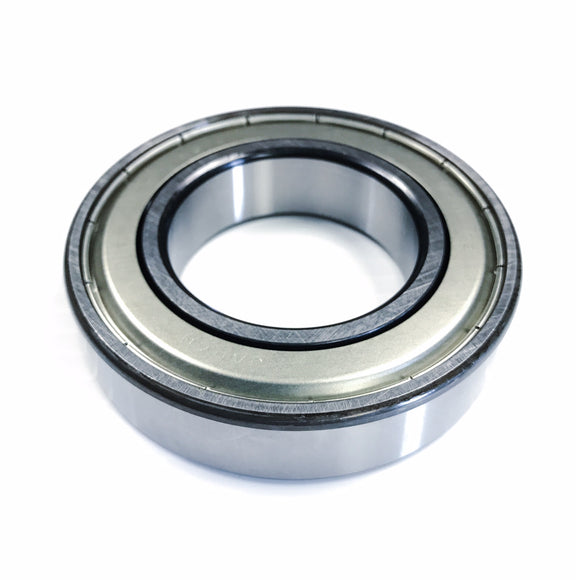

6211ZZC3 Koyo Ball Bearing, Shielded-1
6211ZZC3 Koyo Ball Bearing, Shielded-2

6211ZZC3 Koyo Ball Bearing, Shielded

$61.34

Shipping calculated at checkout

JTEKT Corporation SKU: 6211-ZZC3 Barcode: 4549250160103

30 Day
Return Policy

Ships Fast
in 24 hours

4

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6211ZZC3
Group Deep Groove Ball Bearings
Type Shielded (ZZ)

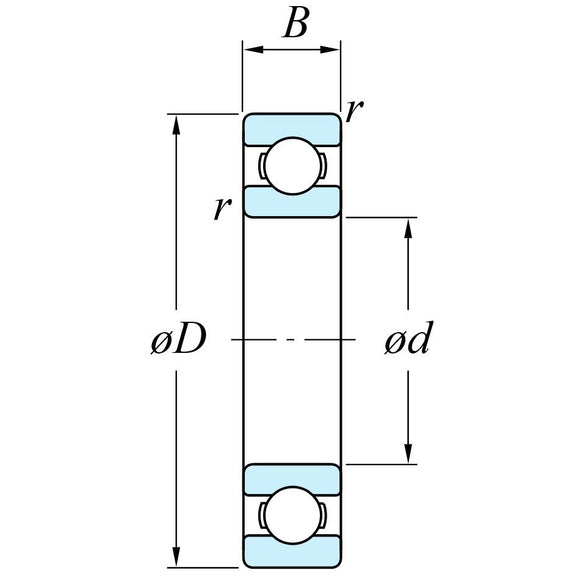

Bore / Inside Diameter (d) 55 mm
Housing / Outside Diameter (D) 100 mm
Width (B) 21 mm
Minimum Radius (r) 1.5 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 43.4 kN
C0r 29.4 kN
Fatigue Load Limit (Cu) 1.95 kN
Factor (f0) 14.4
Limiting Speeds (Grease Lubrication) 6,300 min-1
Shaft Shoulder Mounting Dimension (da) 63 mm Minimum
66 mm Maximum
Housing Shoulder Mounting Dimension (Da) 92 mm Maximum
Shoulder Radius (ra) 1.5 mm Maximum
Mass 0.607 kg
1.34 lbs
UPC 4549250160103
Country of Manufacture Japan
