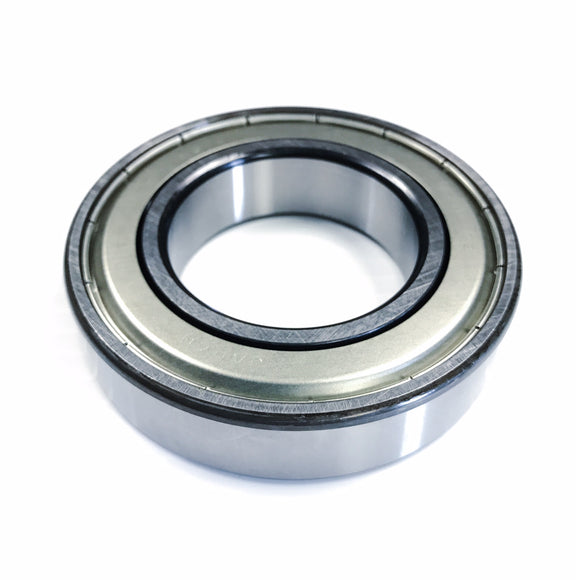

6210ZZC3 Koyo Ball Bearing, Shielded

$36.93

Shipping calculated at checkout

JTEKT Corporation SKU: 6210-ZZC3 Barcode: 4549250159503

30 Day
Return Policy

Ships Fast
in 24 hours

4

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6210ZZC3
Group Deep Groove Ball Bearings
Type Shielded (ZZ)
Bore / Inside Diameter (d) 50 mm
Housing / Outside Diameter (D) 90 mm
Width (B) 20 mm
Minimum Radius (r) 1.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 35.1 kN
C0r 23.3 kN
Fatigue Load Limit (Cu) 1.55 kN
Factor (f0) 14.4
Limiting Speeds (Grease Lubrication) 7,100 min-1
Shaft Shoulder Mounting Dimension (da) 56.5 mm Minimum
59 mm Maximum
Housing Shoulder Mounting Dimension (Da) 83.5 mm Maximum
Shoulder Radius (ra) 1 mm Maximum
Mass 0.463 kg
1.03 lbs
UPC 4549250159503
Country of Manufacture Japan
