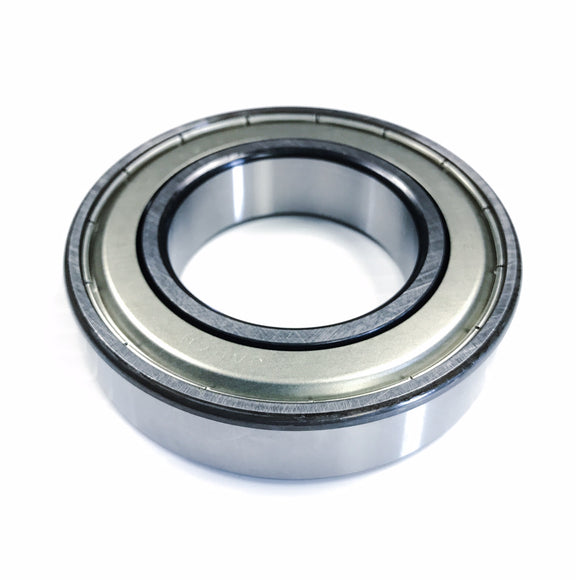

6204ZZC3 Koyo Ball Bearing, Shielded

$8.94 USD

Shipping calculated at checkout

JTEKT Corporation SKU: 6204-ZZC3

30 Day
Return Policy

Ships Fast
in 24 hours

10

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6204ZZC3
Group Deep Groove Ball Bearings

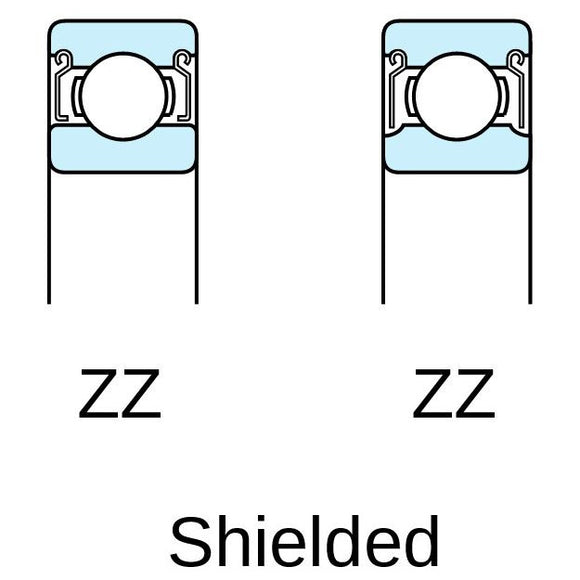

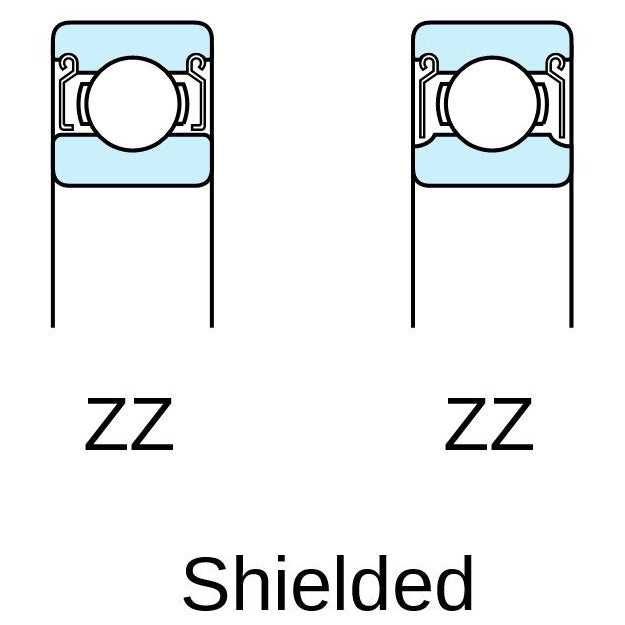

Type Shielded (ZZ)

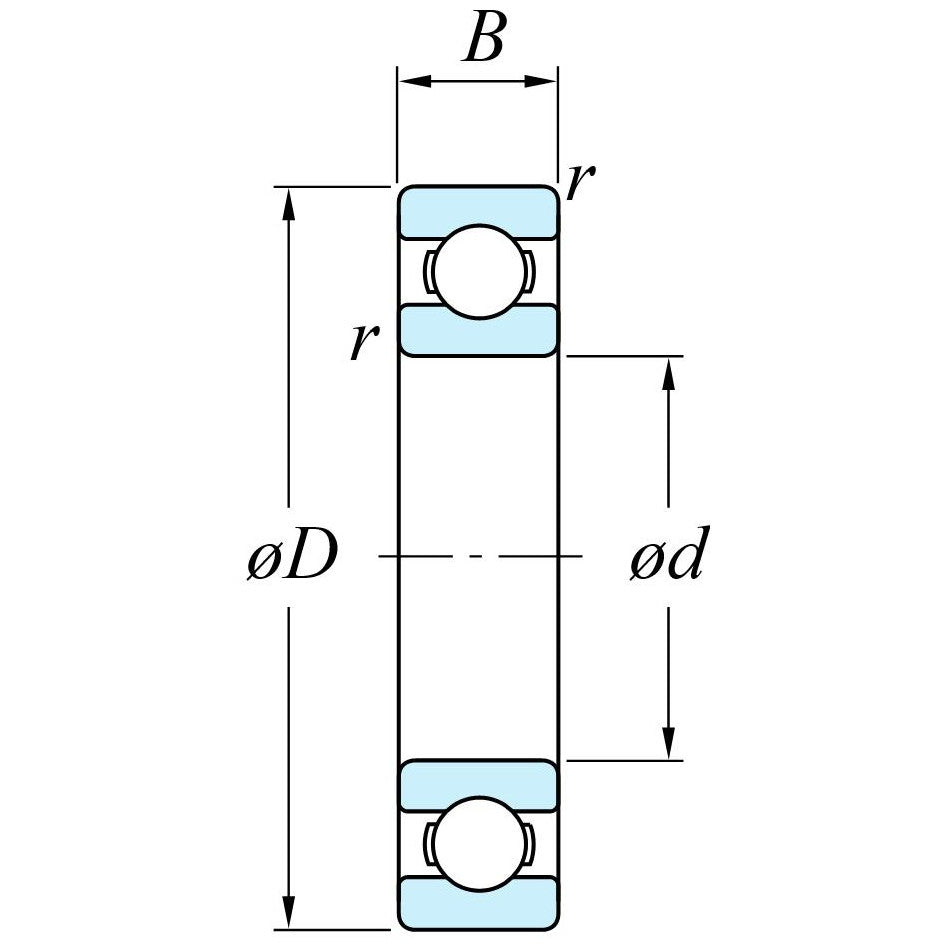

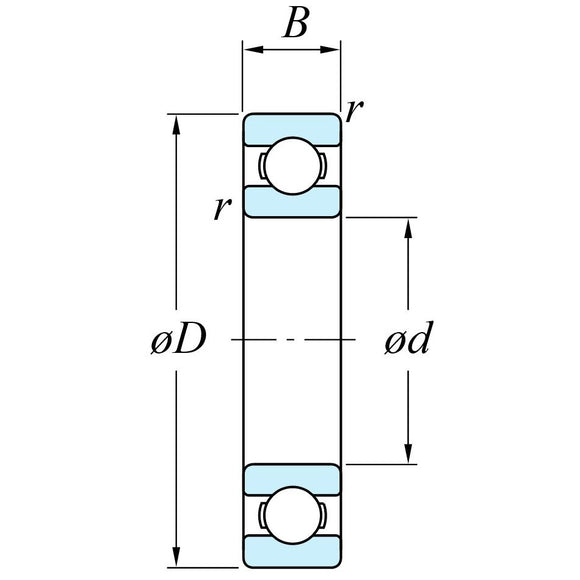

Bore / Inside Diameter (d) 20 mm
Housing / Outside Diameter (D) 47 mm
Width (B) 14 mm
Minimum Radius (r) 1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 12.8 kN
C0r 6.65 kN
Fatigue Load Limit (Cu) 0.510 kN
Factor (f0) 13.2
Limiting Speeds (Grease Lubrication) 15,000 min-1
Shaft Shoulder Mounting Dimension (da) 25 mm Minimum
26.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 42 mm Maximum
Shoulder Radius (ra) 1 mm Maximum
Mass 0.106 kg
0.24 lbs
UPC
Country of Manufacture Japan
