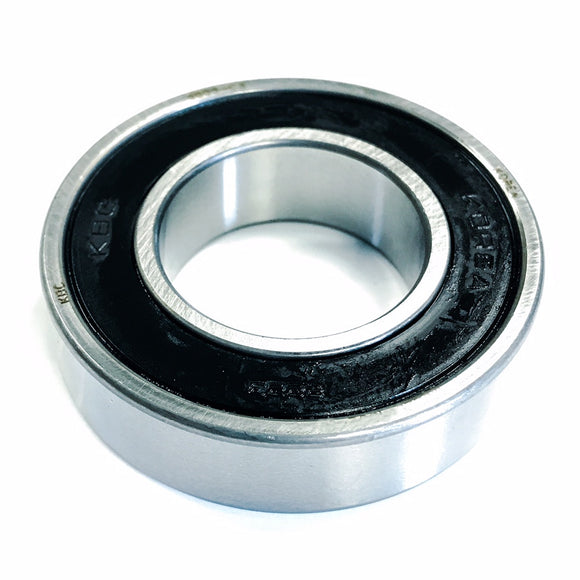

6002DDC3G81 KBC Ball Beaing, Rubber Sealed

$7.50 USD

Shipping calculated at checkout

AST Bearings (Owns KBC, JAF, SMT) SKU: 6002-2RS Barcode: 4047643207621

30 Day
Return Policy

Ships Fast
in 24 hours

11

In stock!

Specifications

Brand KBC Bearings (AST Bearing)
Manufacturer Part Number 6002DDC3G81
Group Deep Groove Ball Bearings

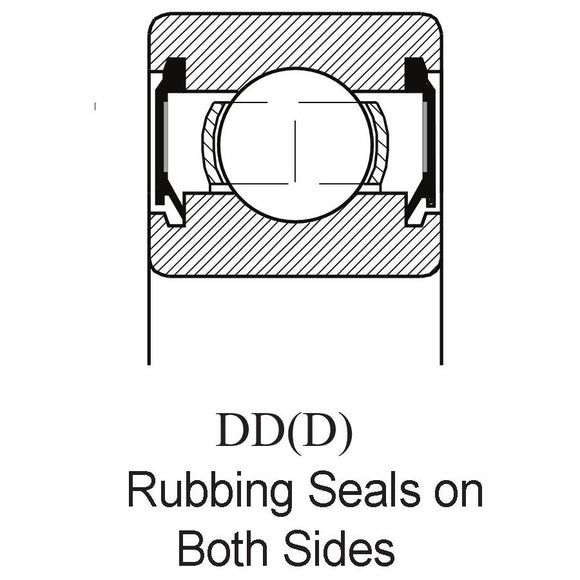

Type Rubbing Seals on Both Sides (DD)

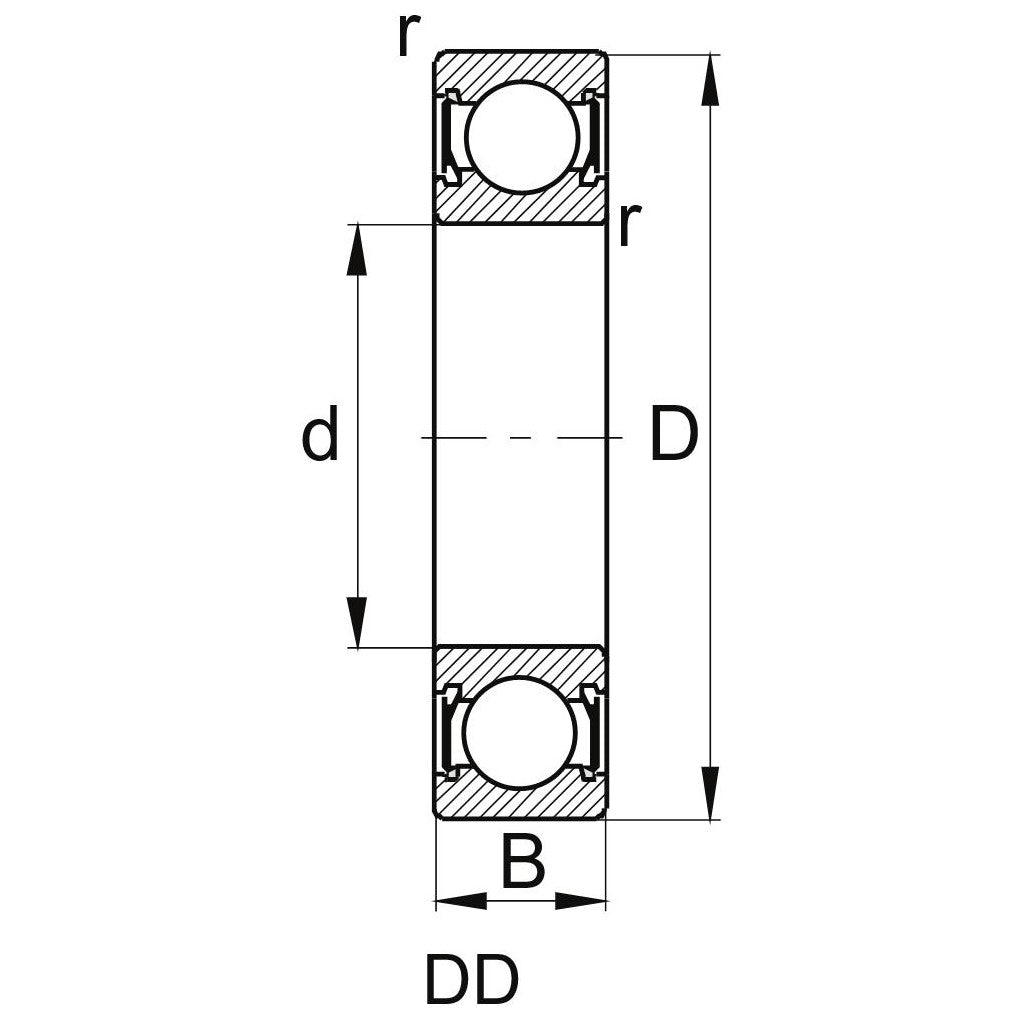

Bore / Inside Diameter (d) 15 mm
Housing / Outside Diameter (D) 32 mm
Width (B) 9 mm
Minimum Radius (r) 0.3 mm
Operating Temperature 120°C
Cage Type Pressed Steel Cage
Configuration Single-row
Standards KS B 2023
Allowable Misalignment Low Loads: 2’… 6’
High Loads: 5’… 10’
Basic Load Rating Cr 5,600 N (571 kgf)
C0r 2,840 N (290 kgf)
Limiting Speeds (Grease Lubrication) 15,000 min-1
Weight 0.032 kg
0.08 lbs
Ball Qty 9
Ball Diameter 4.762 mm

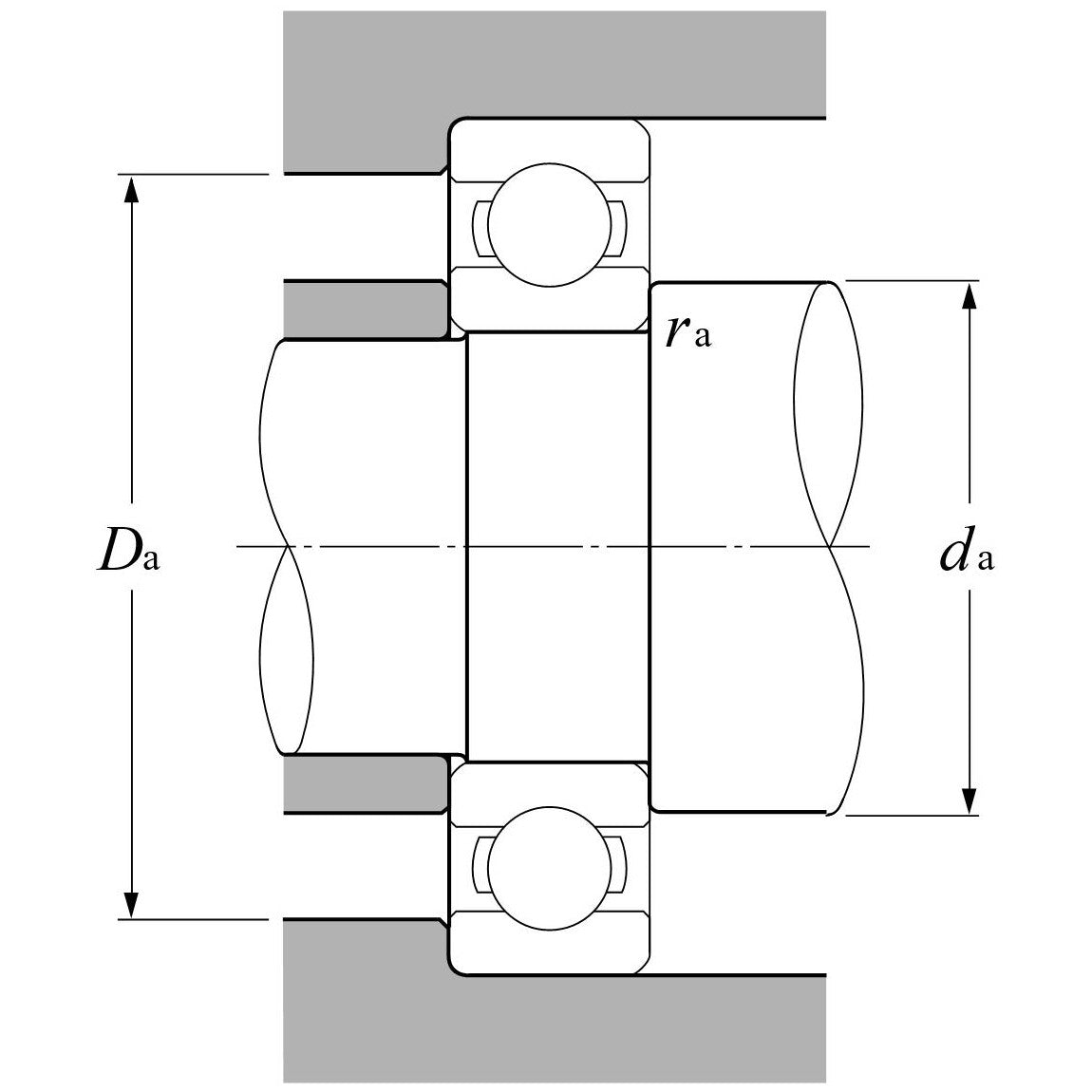

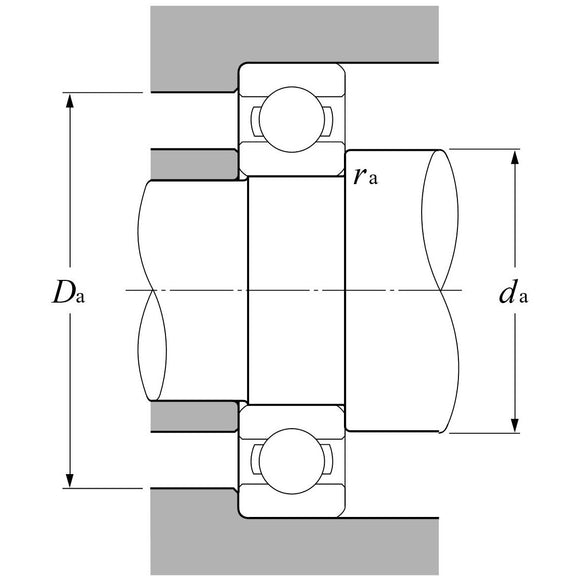

Shaft Abutment Dimension (da) 17 mm Minimum
Housing Abutment Dimension (Da) 30 mm Maximum
Abutment Radius (ra) 0.3 mm Maximum
Precision A1
Standard Clearance C0
Material 52100 Chrome Steel (or equivalent)
Country of Manufacture Korea
