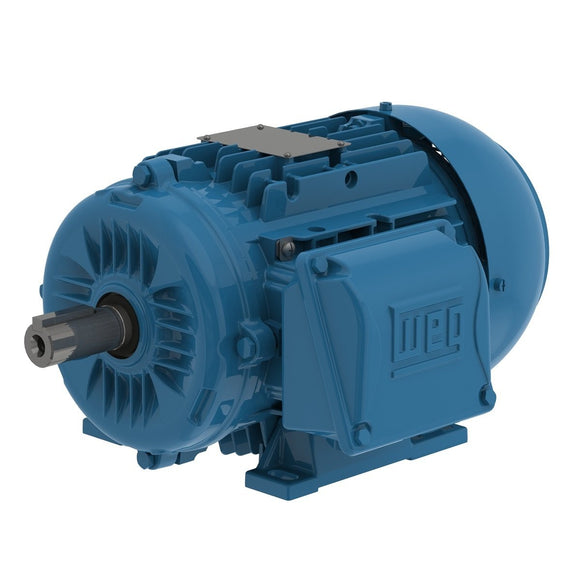

.7536ET3WAL80-W22 WEG 1HP/0.75kW IEC TRU-Metric Electric Motor, 3600RPM

$353.33 USD $397.00 USD Save $43.67 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: .7536ET3WAL80-W22 Barcode: 7909323282960

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 80
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2840 rpm
Slip 5.33 %
Rated voltage 220/380 V
Rated current 2.94/1.70 A
L. R. Amperes 22.0/12.8 A
LRC 7.5
No load current 1.43/0.830 A
Rated torque 1.82 ft.lb
Locked rotor torque 360 %
Breakdown torque 330 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 0.0180 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 26.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
75.5  82.2  81.6

Power factor

50% 75% 100%
0.66  0.77  0.82
Frame 80
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2850 rpm
Slip 5.00 %
Rated voltage 230/400 V
Rated current 2.87/1.65 A
L. R. Amperes 21.5/12.4 A
LRC 7.5
No load current 1.63/0.940 A
Rated torque 1.82 ft.lb
Locked rotor torque 409 %
Breakdown torque 380 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 0.0180 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 26.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
75.5  82.0  82.0

Power factor

50% 75% 100%
0.61  0.73  0.80
Frame 80
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2860 rpm
Slip 4.67 %
Rated voltage 240/415 V
Rated current 2.85/1.65 A
L. R. Amperes 21.7/12.5 A
LRC 7.6
No load current 1.82/1.05 A
Rated torque 1.81 ft.lb
Locked rotor torque 440 %
Breakdown torque 409 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 0.0180 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 26.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
75.5  81.7  82.1

Power factor

50% 75% 100%
0.57  0.70  0.77
Frame 80
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3470 rpm
Slip 3.61 %
Rated voltage 460 V
Rated current 1.46 A
L. R. Amperes 12.6 A
LRC 8.6
No load current 0.850 A
Rated torque 1.49 ft.lb
Locked rotor torque 490 %
Breakdown torque 450 %
Locked rotor time 57s (cold) 32s (hot)
Moment of inertia (J) 0.0180 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 26.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
75.5  80.0  81.5

Power factor

50% 75% 100%
0.59  0.72  0.79

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM20x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method Not Balanced
Drip Cover Without
