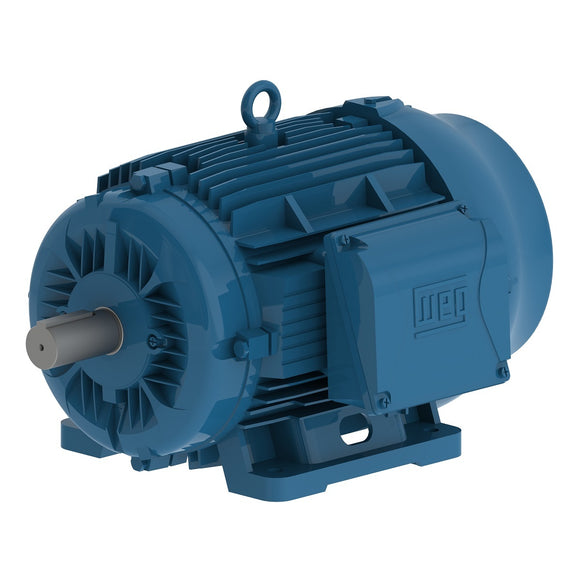

01836ET3Y160L-W22 WEG 25HP/18.5kW IEC TRU-Metric Electric Motor, 3600RPM

$2,603.25 USD $2,925.00 USD Save $321.75 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 01836ET3Y160L-W22 Barcode: 7891327428331

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Electric Motors

Frame 160L
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 380 V
Rated current 34.3 A
L. R. Amperes 288 A
LRC 8.4
No load current 12.0 A
Rated torque 44.0 ft.lb
Locked rotor torque 250 %
Breakdown torque 320 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.32 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 326 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  92.9  93.0

Power factor

50% 75% 100%
0.74  0.83  0.88
Frame 160L
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 33.3 A
L. R. Amperes 280 A
LRC 8.4
No load current 13.0 A
Rated torque 43.9 ft.lb
Locked rotor torque 280 %
Breakdown torque 360 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.32 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 326 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.0  92.9  93.2

Power factor

50% 75% 100%
0.70  0.80  0.86
Frame 160L
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 32.8 A
L. R. Amperes 276 A
LRC 8.4
No load current 14.0 A
Rated torque 43.8 ft.lb
Locked rotor torque 310 %
Breakdown torque 390 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.32 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 326 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.6  92.8  93.3

Power factor

50% 75% 100%
0.66  0.77  0.84
Frame 160L
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 460 V
Rated current 29.9 A
L. R. Amperes 266 A
LRC 8.9
No load current 11.5 A
Rated torque 36.5 ft.lb
Locked rotor torque 330 %
Breakdown torque 440 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.32 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 326 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  91.7  92.4

Power factor

50% 75% 100%
0.69  0.80  0.84
