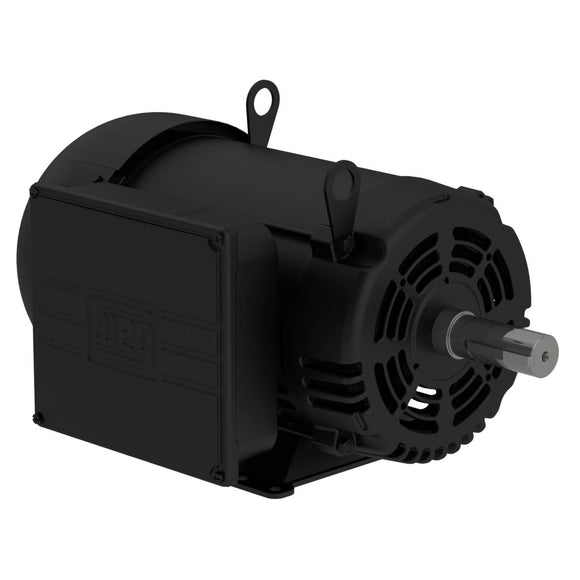

Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1760 rpm |
| Slip | 2.22 % |
| Rated voltage | 208-230 V |
| Rated current | 33.8-32.2 A |
| L. R. Amperes | 267-254 A |
| LRC | 7.9x(Code J) |
| No load current | 7.80-12.2 A |
| Rated torque | 22.1 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 250 % |
| Locked rotor time | 10s (cold) 6s (hot) |
|---|---|
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CCW |
| Approx. weight³ | 119 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 77.0 | 81.5 | 82.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.80 | 0.85 | 0.90 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | |
| Grounding Lugs | Single |
| Fan Cover material | Rolled Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Resilient Base | Without |
Loading...
Bearing details
| Drive End | Non Drive End | |
|---|---|---|
| Bearing type | 6208 ZZ | 6206 ZZ |
| Sealing | Without Bearing Seal | Without Bearing Seal |
| Lubrication interval | - | - |
| Lubricant amount | - | - |
| Grease Type | Mobil Polyrex EM | |
Foundation loads
| Max. traction | Max. compression |
|---|---|
| 251 lb | 371 lb |
